420 N9030B PXA Signal Analyzer Service Guide
Replaceable Parts
Hardware

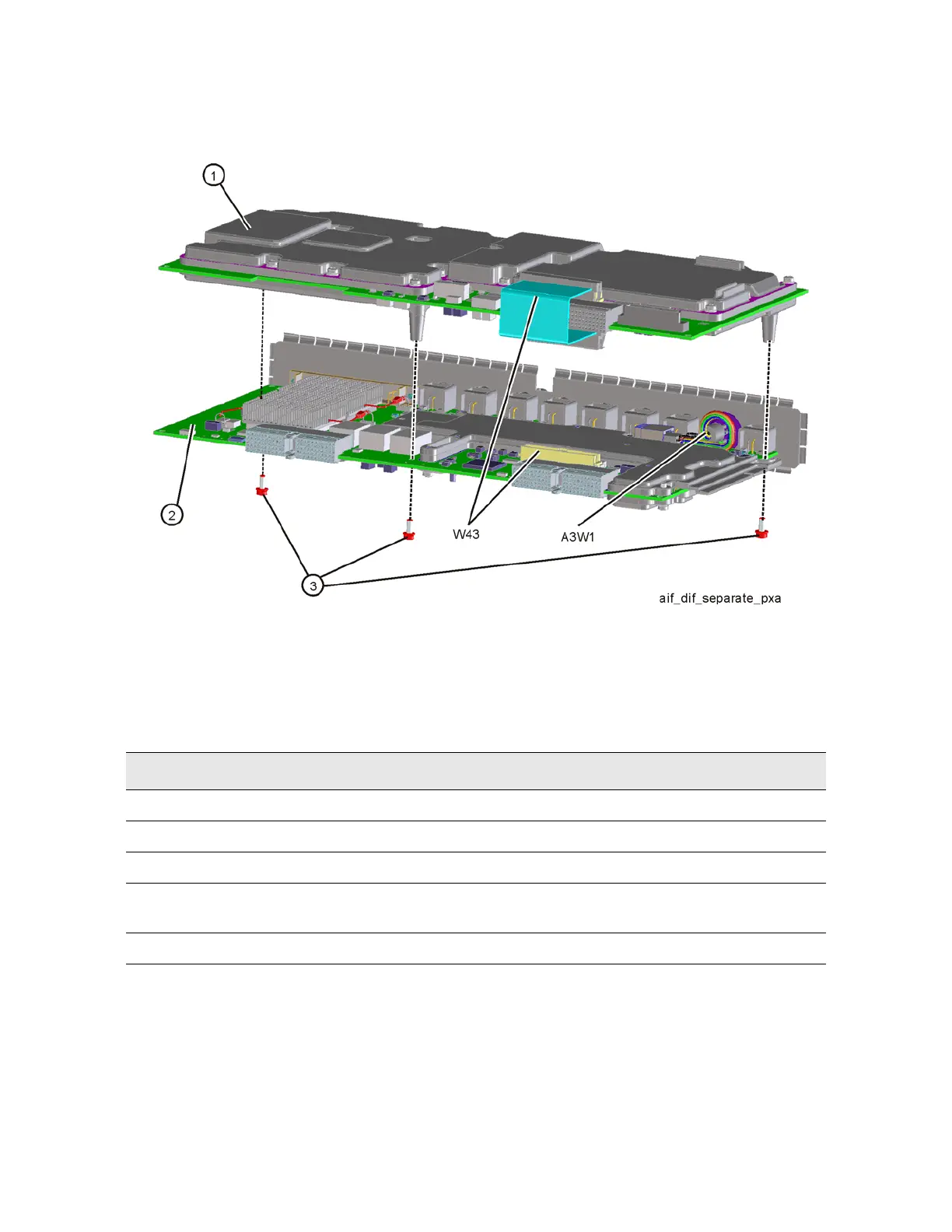

Figure 15-19 AIF/DIF Assemblies
Table 15-20 AIF/DIF Assemblies
Item Description Keysight Part Number
1 A2 Analog IF Assembly N9020-60290
2 A3 Digital IF Assembly N9020-60016
3Screw, M3 X 0.5 (8 mm long) 0515-0372
W43 Cable, ribbon interconnect from Analog IF J820 to Digital
IF A3J30
N9020-60046
A3W1 Cable Assembly, Smart Noise Source (Wire Harness) N9020-60090
