N9030B PXA Signal Analyzer Service Guide 421
Replaceable Parts
Hardware

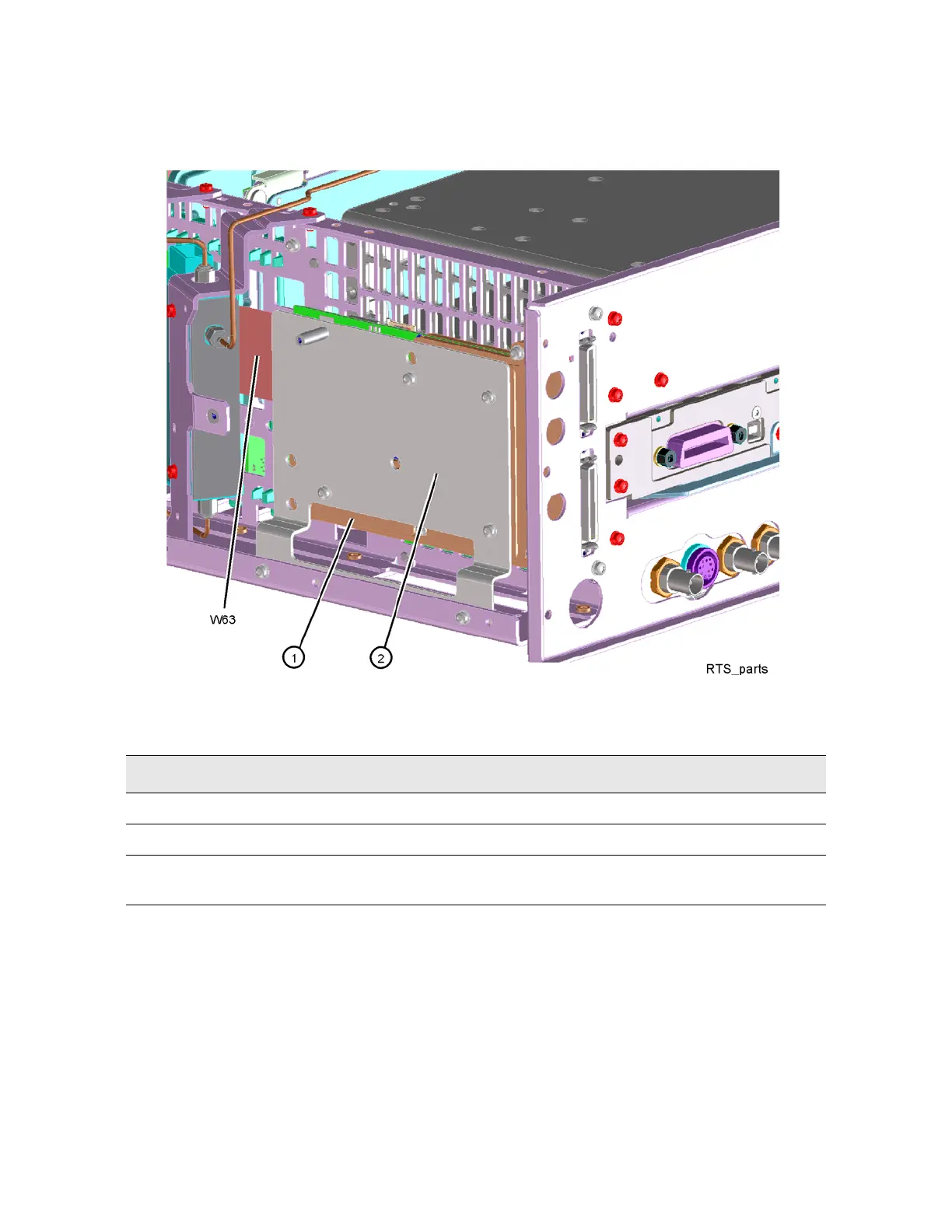

Figure 15-20 WBDIF Extension Board - Option RTS
Table 15-21 WBDIF Extension Board - Option RTS
Item Description Keysight Part Number
1 A28 Wideband DIF Extension Board (Option RTS) N9020-60272
2 Bracket, Wideband Extension Board (Option RTS) N9020-00067
W63 Cable, ribbon A26 WBDIF J9000 to A28 WBDIF Extension
board J1 (Option RTS)
N9020-60278
