N9030B PXA Signal Analyzer Service Guide 423
Replaceable Parts
Hardware

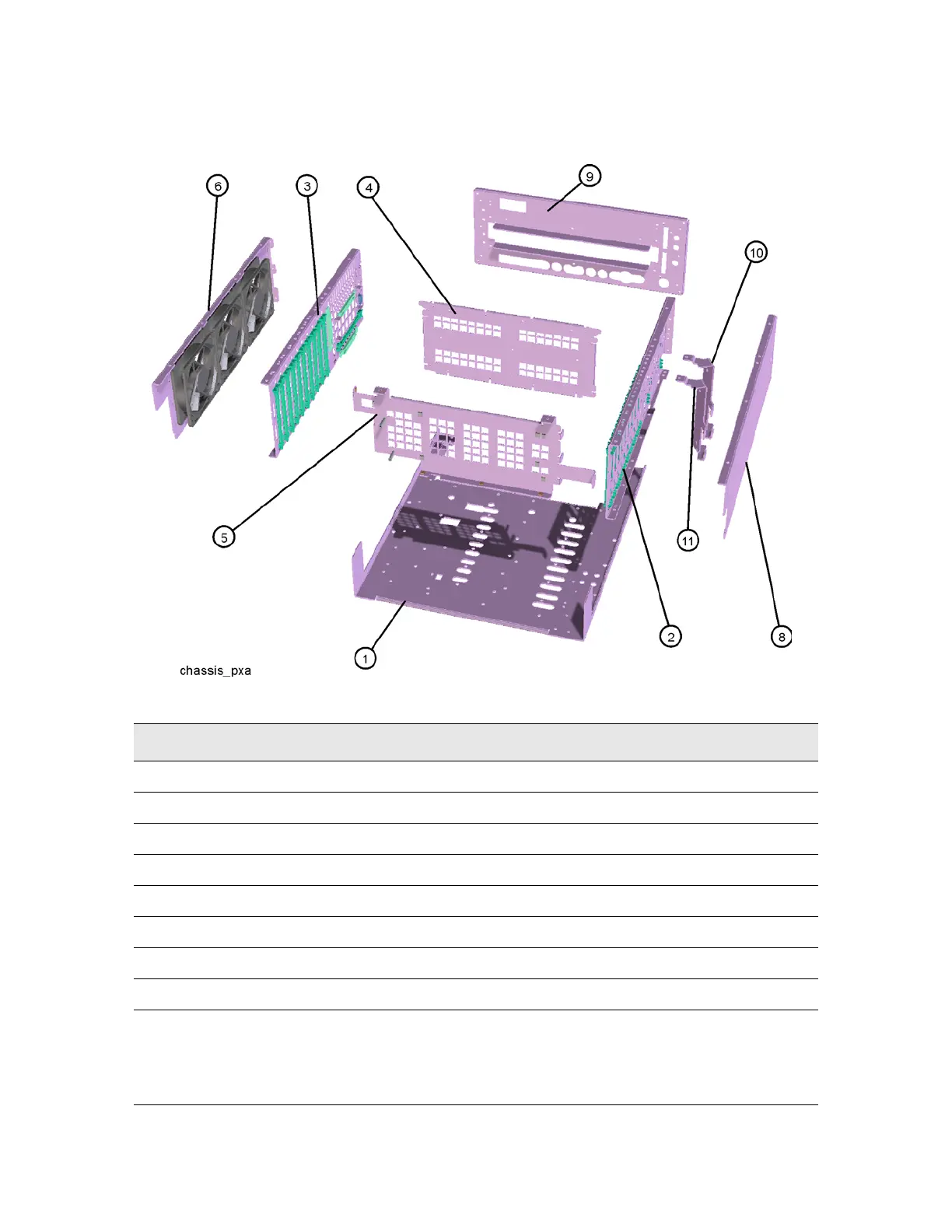

Figure 15-22 Chassis
Table 15-23 Chassis
Item Description Keysight Part Number
1 Chassis Base N9020-00015
2 Chassis Side, Right (inner) W1312-00116
3 Chassis Side, Left (inner) W1312-00117
4 Bracket, Midplane W1312-00048
5 Bracket, Chassis Front W1312-00098
6 Bracket, Fan W1312-00118
8 Bracket, RF Side (right side outer) N9020-00014
9 Rear Frame N9020-00065
10 + 11 Bracket, Attenuator (used for both attenuators)
(Options 503, 508, 513, 526)
Bracket, Attenuator (used for both attenuators)
(Options 544, 550)
E4449-00103
N9020-00047
