456 N9030B PXA Signal Analyzer Service Guide
Assembly Replacement Procedures
RF Area (Options 503, 508, 513, 526)
12.Refer to Figure 16-24. Disconnect W7 from the Low Band Switch.

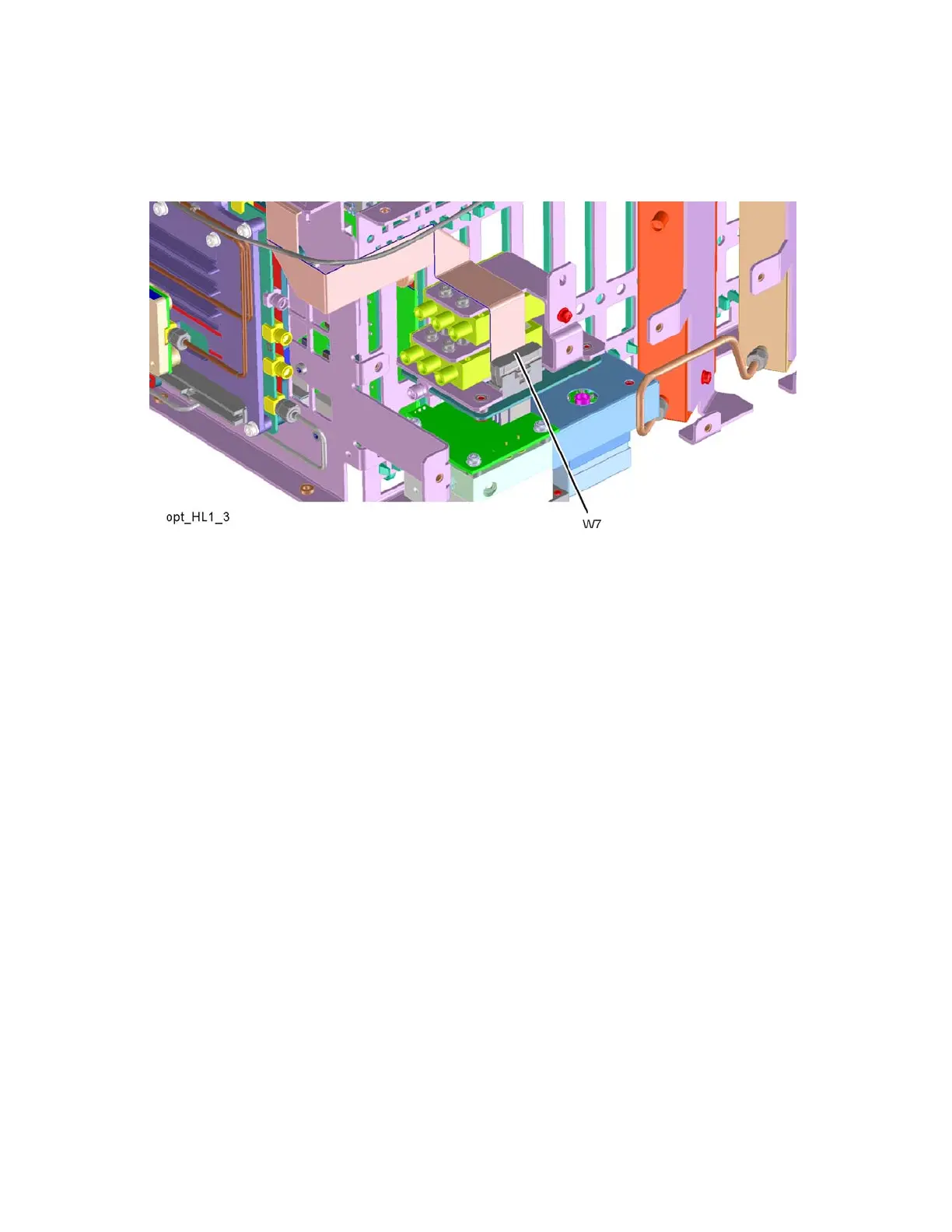

Figure 16-24 W7 Removal
