N9030B PXA Signal Analyzer Service Guide 457
Assembly Replacement Procedures
RF Area (Options 503, 508, 513, 526)
13.Refer to Figure 16-25. Disconnect the two wire harness connectors (1)
located between the switches and the frame.

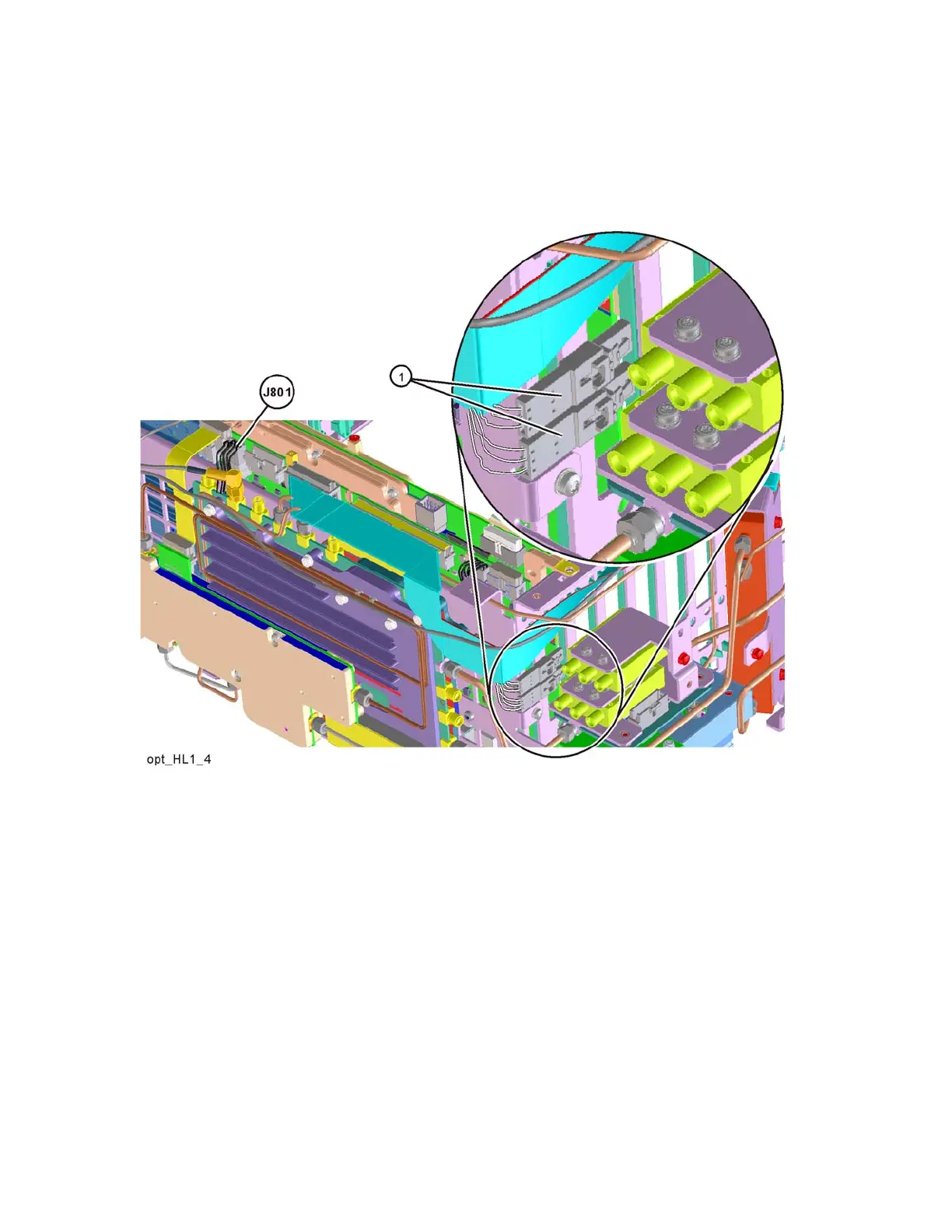

Figure 16-25 Wire Harness Disconnect
To Next Page
