464 N9030B PXA Signal Analyzer Service Guide
Assembly Replacement Procedures
RF Area (Options 503, 508, 513, 526)
7. Refer to Figure 16-32. Attach the coaxial fixed attenuator (1) to switch
port 1. Torque to 10 inch-lbs.

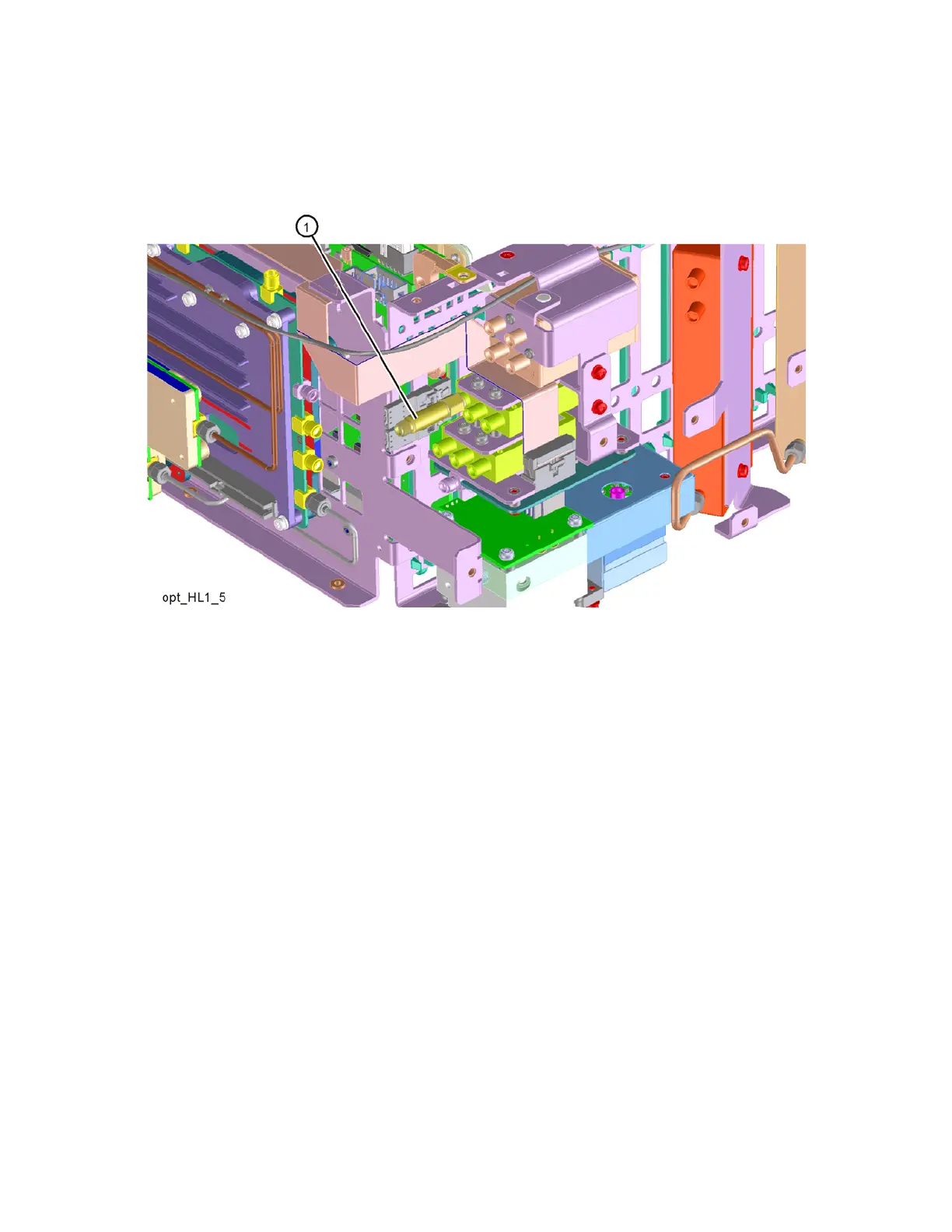

Figure 16-32 Attenuator Installation
To Next Page
