N9030B PXA Signal Analyzer Service Guide 463
Assembly Replacement Procedures
RF Area (Options 503, 508, 513, 526)
6. Refer to Figure 16-31. Reconnect the two wire harness connectors (1).
Once connected, position the connections along side the switches.

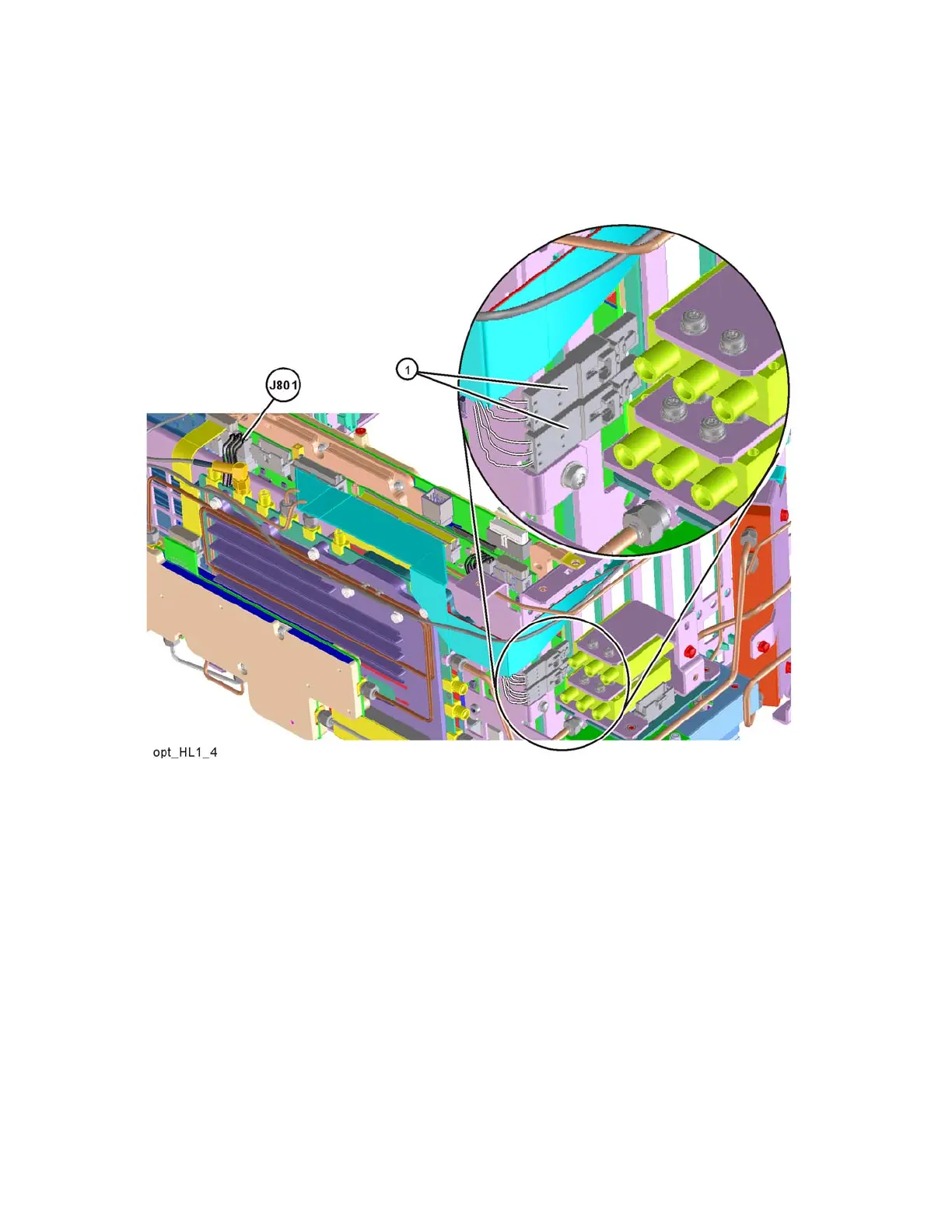

Figure 16-31 Wire Harness Routing
To Next Page
