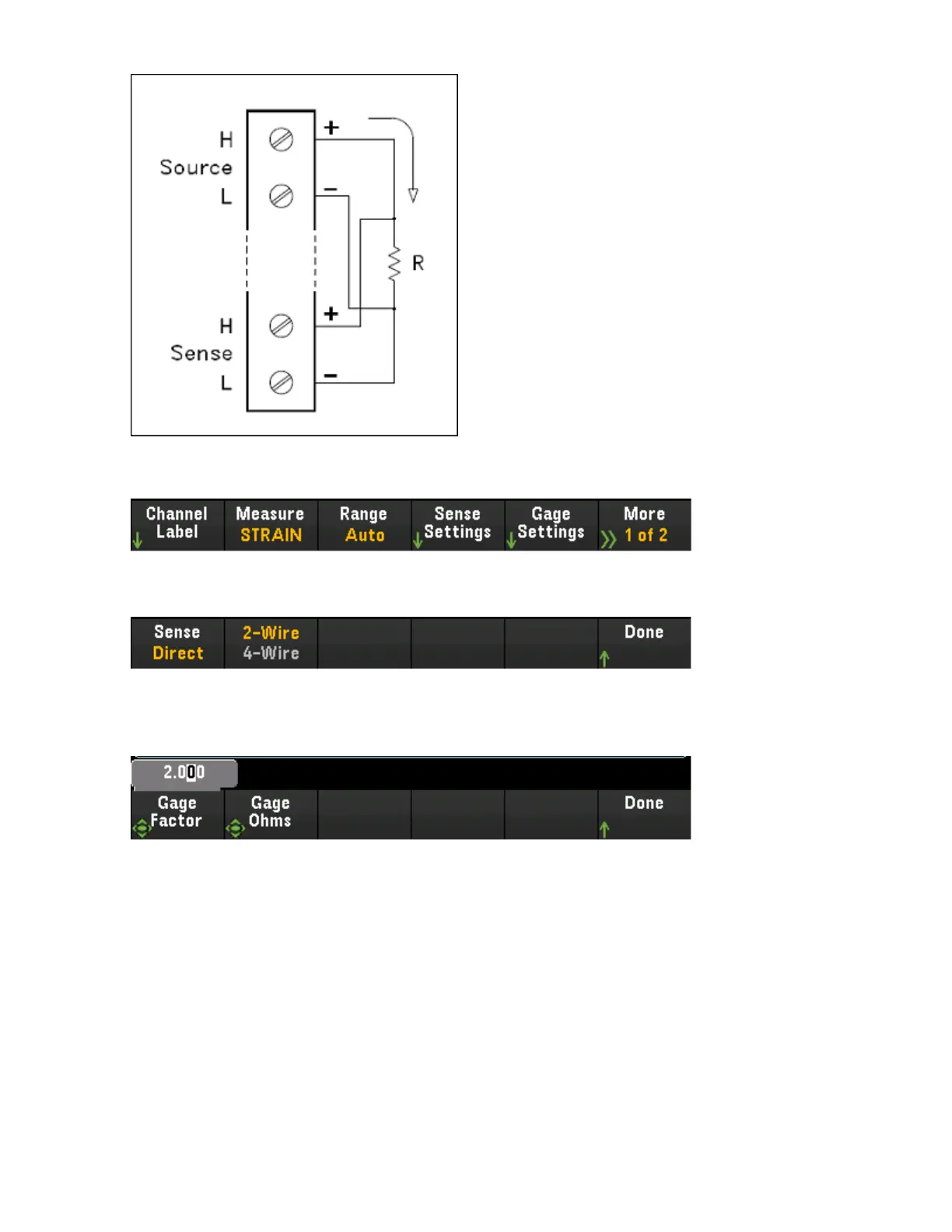

2. Press [Channel] > Measure, and select STRAIN from the selection menu.
3. Press Sense Settings > Sense, specify the strain measurement method as direct 2-wire or 4-wire.
4. Press Gage Settings, and use the knob or the front panel arrow keys to specify various strain gage set-
tings.
Gage Factor - Gage factor is the ratio of the fractional change in resistance to the fractional change in
length (strain) along the axis of the gage. The larger the value, the more sensitive strain gage. Gage
factor is a dimensionless quantity. The typical value is approximately 2.
Gage Ohms - Gage resistance to be used to convert direct strain measurements on the selected chan-
nel.
Keysight DAQ970A User's Guide 107
[Channel] Menu Overview

Keysight DAQ970A Specifications

General

Scan Rate	Up to 450 channels/sec
Connectivity	USB, LAN, GPIB (optional)
Display	4.3-inch color LCD
Operating Temperature	0 °C to 50 °C
Number of slots	3 slots
Measurement Types	DCV, ACV, DCI, ACI, 2-wire resistance, 4-wire resistance, frequency, temperature, capacitance
Voltmeter	6.5 digit
Resolution	22 bits
Memory	Non-volatile memory
