Resistance
This section describes how to configure the selected channel for 2-wire and 4-wire measurements from the
front panel. The measurement configurations for 2-wire and 4-wire resistance are same, below descrip-
tions explained by using 2-wire resistance measurements.
1.
Connect resistance source to the module's screw terminals.

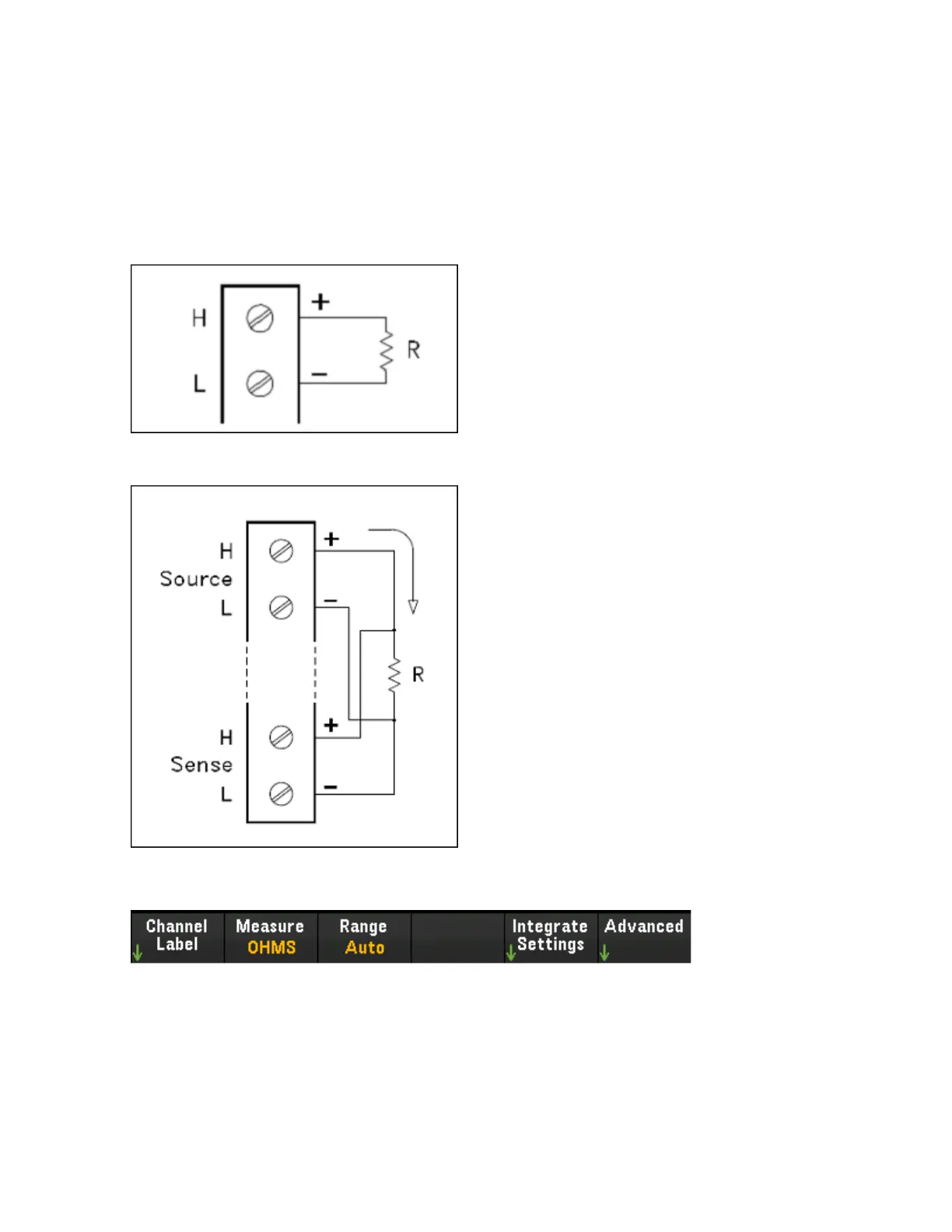

2-wire ohms:
4-wire ohms:
2. Press [Channel] > Measure, and select OHMS or OHMS 4W from the selection menu.
Keysight DAQ970A User's Guide 115
