Alarm Limit Indications

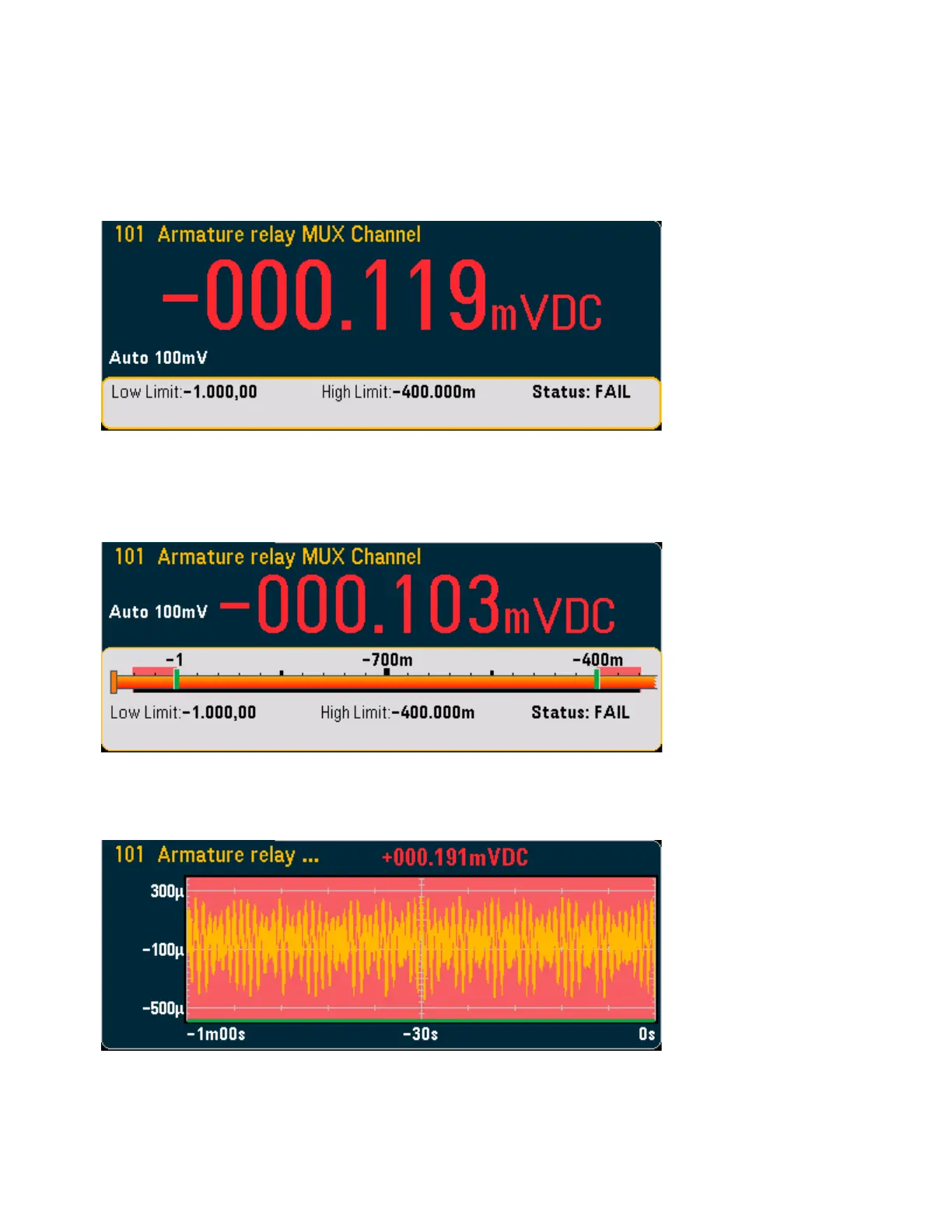

The display uses colors to indicate limits and limit violations.
Number
The bright red color (shown below) indicates that the displayed measurement exceeds the limits.
Bar Meter
The bar meter (below) uses the same color scheme. The following example shows a limit violation. The word
FAIL indicates that a limit has been exceeded.
Trend Chart
The trend chart (below) uses the same color scheme. The following example shows a limit violation.
Histogram
The histogram (below) uses the same color scheme. The following example shows a limit violation.
[Channel] Menu Overview
146 Keysight DAQ970A User's Guide

Keysight DAQ970A Specifications

General

Scan Rate	Up to 450 channels/sec
Connectivity	USB, LAN, GPIB (optional)
Display	4.3-inch color LCD
Operating Temperature	0 °C to 50 °C
Number of slots	3 slots
Measurement Types	DCV, ACV, DCI, ACI, 2-wire resistance, 4-wire resistance, frequency, temperature, capacitance
Voltmeter	6.5 digit
Resolution	22 bits
Memory	Non-volatile memory
