Keysight DAQ970A User Guide

RF Signal Multiplexing
A special type of multiplexer is the RF multiplexer. This type of multiplexer uses special components to main-
tain a 50 Ω impedance in the signal line being switched. In a test system, these switches are often used to
route a test signal from a signal source to the device-under-test. The switches are bi-directional. The dia-

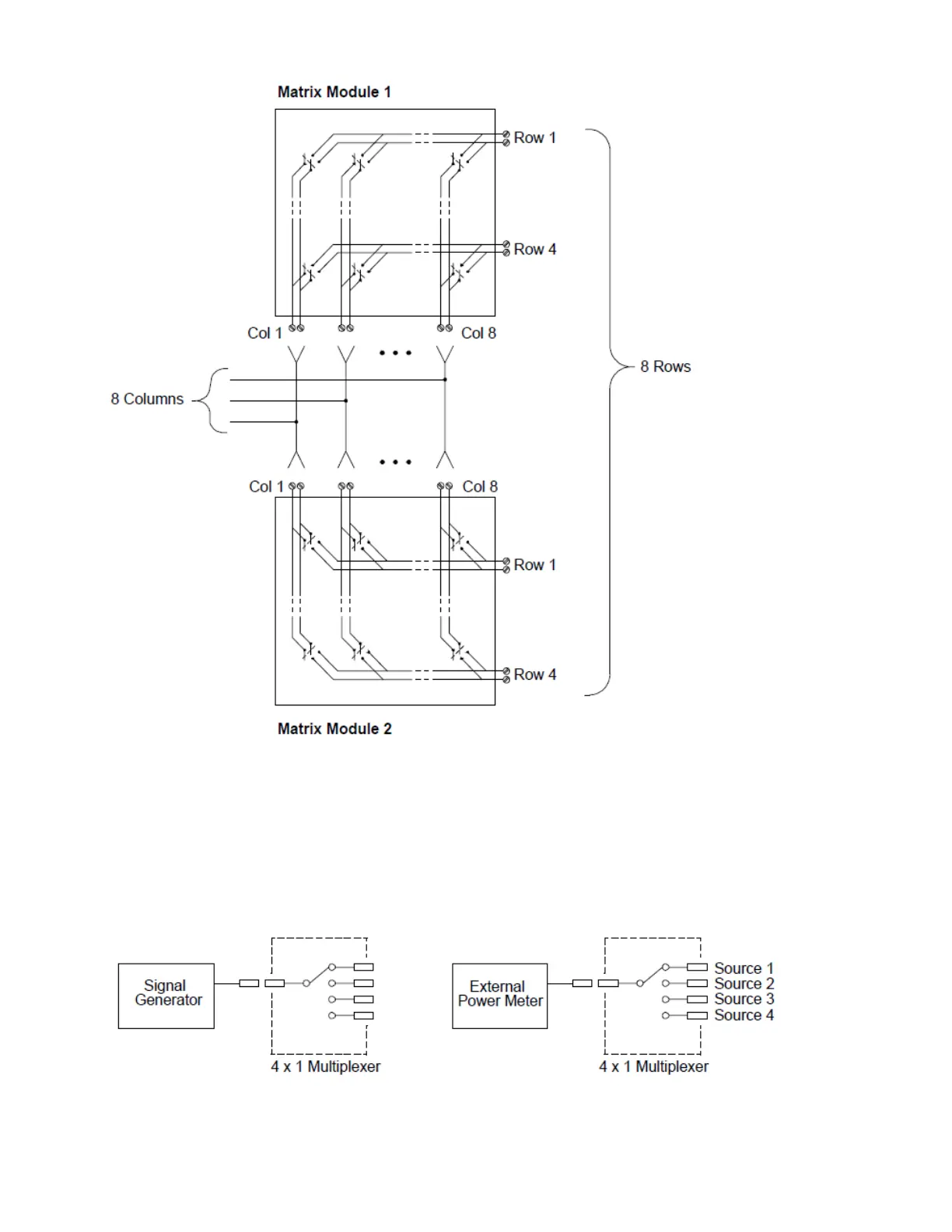

gram below shows two examples of a 4-to-1 channel RF multiplexer in a test system.
4Measurement Tutorials
220 Keysight DAQ970A User's Guide

Keysight DAQ970A Specifications

General

Scan Rate	Up to 450 channels/sec
Connectivity	USB, LAN, GPIB (optional)
Display	4.3-inch color LCD
Operating Temperature	0 °C to 50 °C
Number of slots	3 slots
Measurement Types	DCV, ACV, DCI, ACI, 2-wire resistance, 4-wire resistance, frequency, temperature, capacitance
Voltmeter	6.5 digit
Resolution	22 bits
Memory	Non-volatile memory
