Keysight DAQ970A User Guide

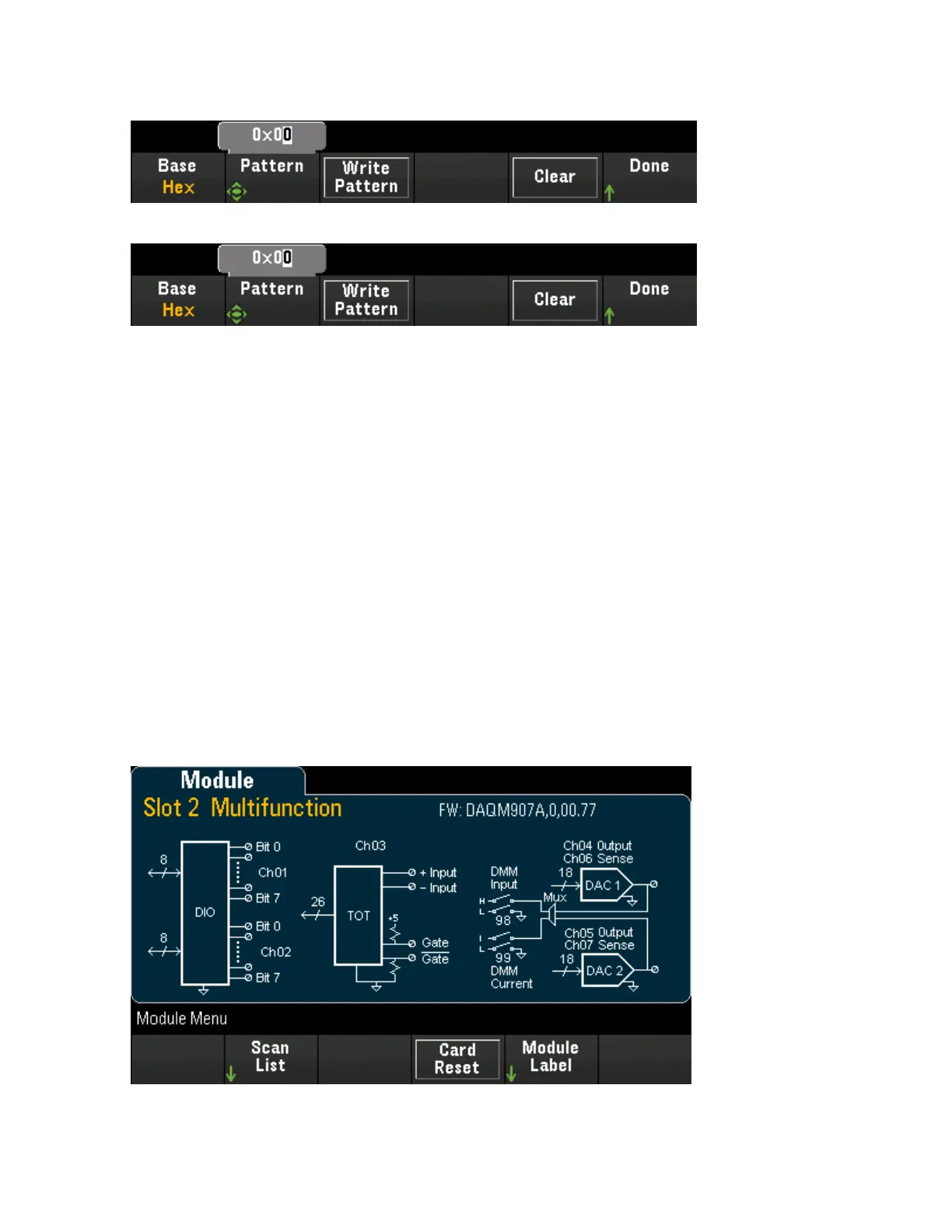

4. Press Write Pattern to output the bit pattern on the selected digital output port. The DIOdirection will
be set to Output.
5. Press Clear to set the output pattern to "0".
Totalizer Channel
The DAQM907A multifunction module has a 26-bit totalizer which can count TTL-compatible pulses at a
100 kHz rate. The totalizer channel is numbered "s03", where s represents the slot number. The totalizer
channel is labeled as channel 03
You can manually read the totalizer count or you can configure a scan to read the count.
To configure the totalizer channel with the multifunction module:
1. Press [Module] and use the knob or the front panel arrow keys to select the slot which containing the
DAQM907A multifunction module.
[Channel] Menu Overview
124 Keysight DAQ970A User's Guide

Keysight DAQ970A Specifications

General

Scan Rate	Up to 450 channels/sec
Connectivity	USB, LAN, GPIB (optional)
Display	4.3-inch color LCD
Operating Temperature	0 °C to 50 °C
Number of slots	3 slots
Measurement Types	DCV, ACV, DCI, ACI, 2-wire resistance, 4-wire resistance, frequency, temperature, capacitance
Voltmeter	6.5 digit
Resolution	22 bits
Memory	Non-volatile memory
