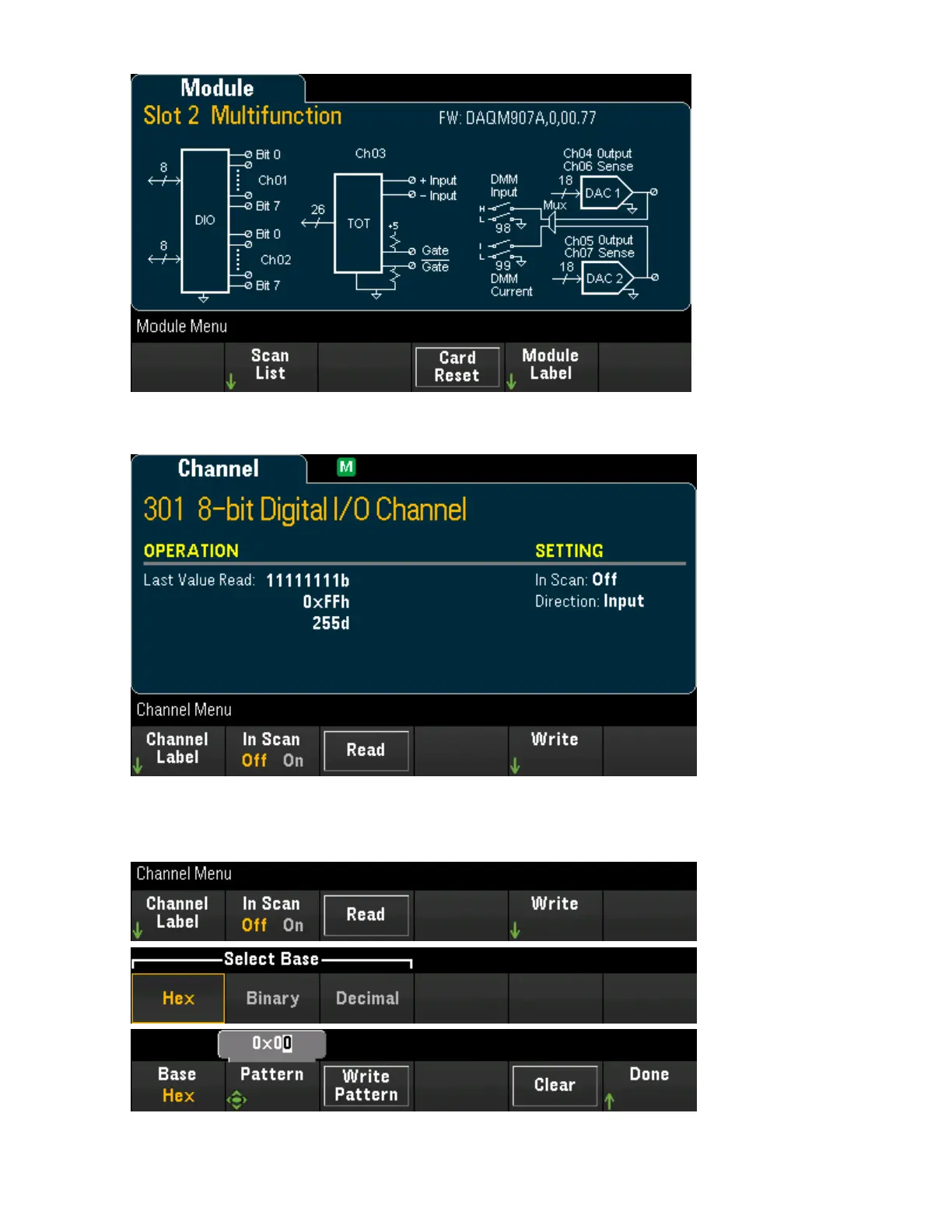

2. Press [Channel] and use the knob or the front panel arrow keys to select the DIOchannels (channel 01
and 02).
3. Press Write > Base and use the knob or the front panel arrow keys to select the number base used
(Hex, Binary, or Decimal), and then press Pattern to define each output pattern from the selected
base.
