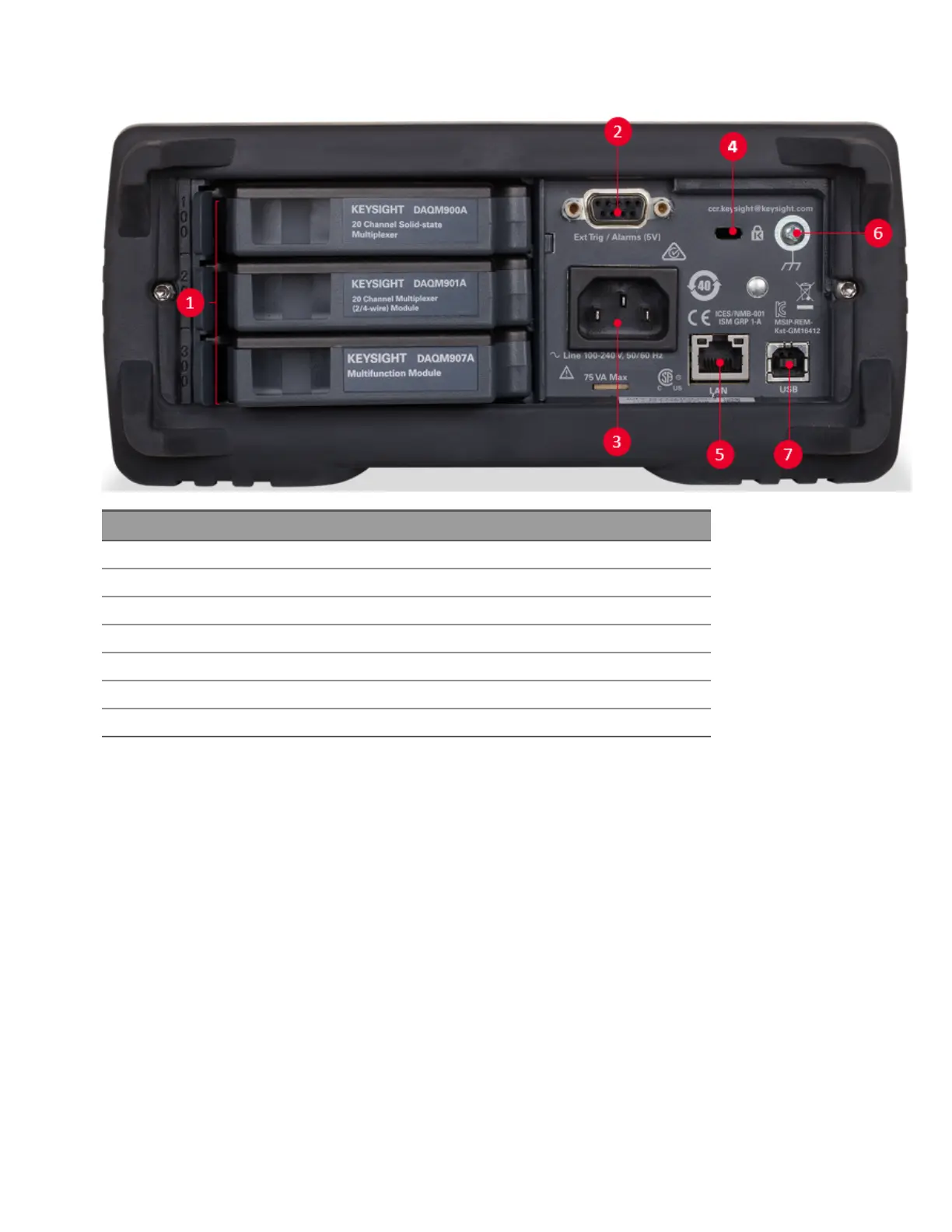

Rear Panel at a Glance
Label Description
1 Slot identifier (100, 200, 300)
2 External trigger input, alarm outputs, channel advance input, and channel close output
3 AC mains input
4 Instrument cable lock
5 LAN interface connector
6 Chassis ground screw
7 USB interface connector
