Capacitance

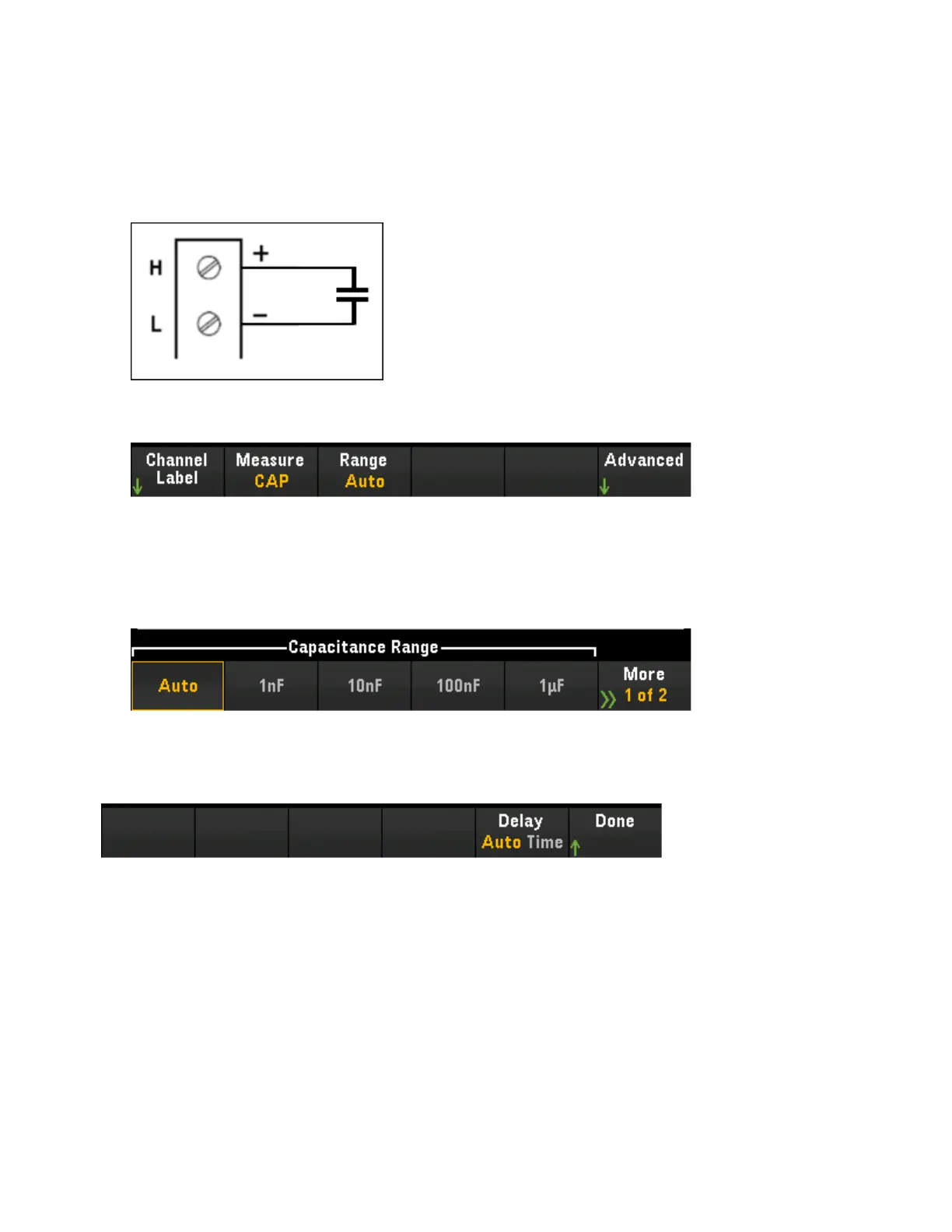

This section describes how to configure the selected channel for capacitance measurements from the front
panel.
1.
Connect capacitance source to the module's screw terminals.
2. Press [Channel] > Measure, and select CAP from the selection menu.
3. Press Range and use the knob or the front panel arrow keys to specify the measurement range. Auto
(autorange) automatically selects the range for the measurement based on the input. Autoranging is
convenient, but it results in slower measurements than using a manual range. Autoranging goes up a
range at 120% of the present range, and down a range below 10% of the present range.
Advanced settings
Press Advanced to configure the advanced settings for the measurement.
Delay - Selects whether the delay between channels in the scan list will be automatically or manually selec-
ted. By selecting Auto, instrument will automatically determine the channel delay based on measurement
function, range, integration time, and AC filter setting. By selecting Time, the specified delay (time in
seconds) is inserted between the relay closure and the actual measurement on each channel, in addition to
any delay that will implicitly occur due to relay settling time.
