Keysight DAQ970A User Guide

Channel number Channel label
01 8-bit Digital I/O Channel
02 8-bit Digital I/O Channel
03 Totalizer Channel
04 DAC Output Channel
05 DAC Output Channel
06 DAC Output Sense Channel
07 DAC Output Sense Channel
Digital I/O (DIO) Channels (Channel 01 and 02)
The DAQM907A multifunction module has two non-isolated 8-bit input/output ports which you can use
for reading digital patterns. You can read the live status of the bits on the port or you can configure a scan
to include a digital read.

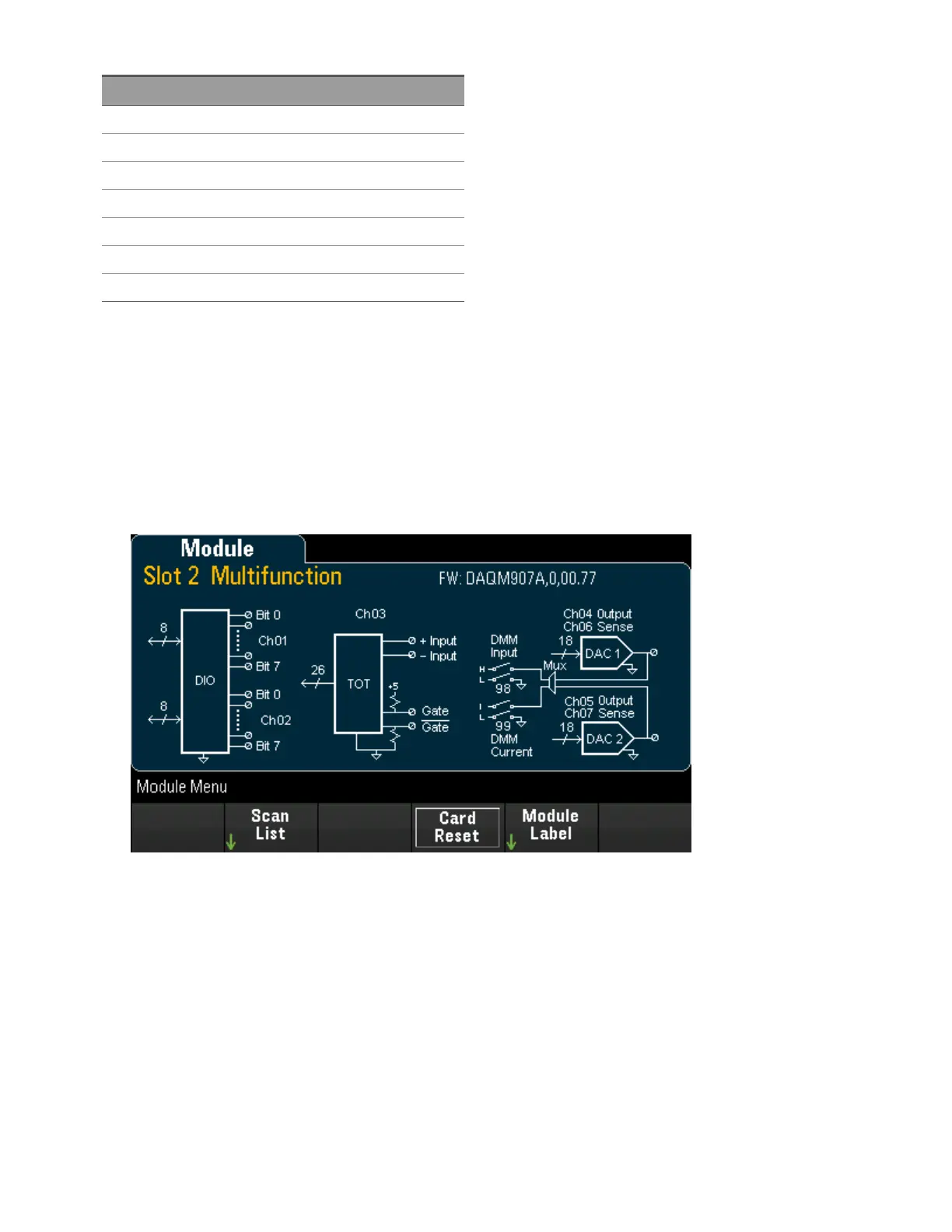

To configure the DIO channel
1. Press [Module] and use the knob or the front panel arrow keys to select the slot containing the mul-
tifunction module.
Keysight DAQ970A User's Guide 121
[Channel] Menu Overview

Keysight DAQ970A Specifications

General

Scan Rate	Up to 450 channels/sec
Connectivity	USB, LAN, GPIB (optional)
Display	4.3-inch color LCD
Operating Temperature	0 °C to 50 °C
Number of slots	3 slots
Measurement Types	DCV, ACV, DCI, ACI, 2-wire resistance, 4-wire resistance, frequency, temperature, capacitance
Voltmeter	6.5 digit
Resolution	22 bits
Memory	Non-volatile memory
