[Alarm] Menu
Press [Alarm] key on the front panel to configure alarm on the selected channel. There are four con-
figurable alarms in this instrument. You must configure the channel before setting any alarm limits. If you
change the measurement configuration, alarms are turned off and the limit values are cleared. If you plan
to use scaling function on a channel which will also use alarms, be sure to configure the scaling values first.
Configuring alarm limits on multiplexer module

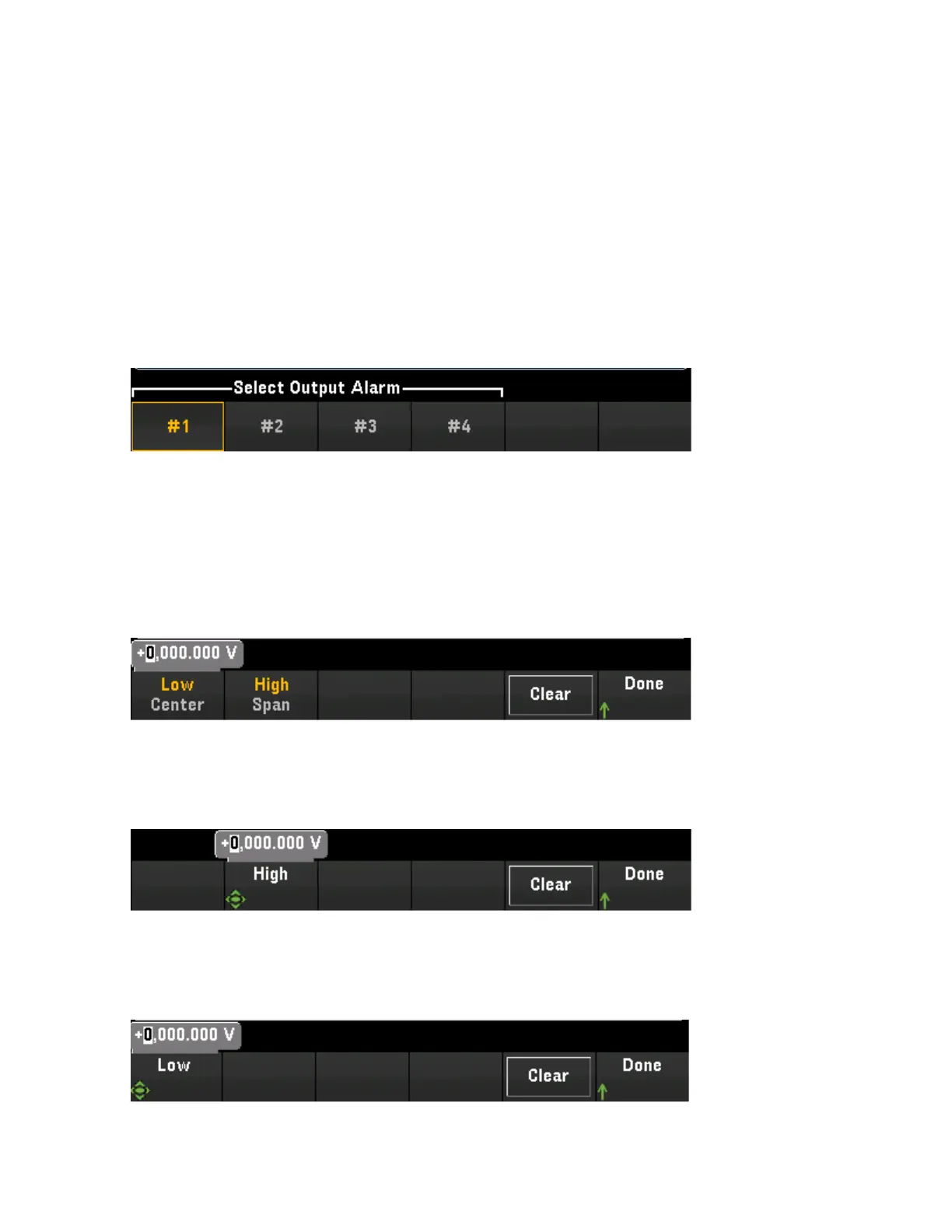

1. In Alarm menu page, press Output to select which of the four alarms will be used to report alarm con-
ditions on the selected channel. You can assign multiple channels to any of the four available alarms
(numbered 1 through 4).
2. Press Alarm to disable (Off) or specify an alarm limit (high, low, or both), and then press Set Limits to
determine the limit value. The instrument will generate an alarm when a scanned or monitor reading
exceeds the specified limit.
a.
High + Low
To configure, select limits type as High + Low and press Set Limits to specify the limits as high and low
values, or as a center value with a span around the center value.
b.
High
To configure, select limits type as High and press Set Limits to specify upper limit value. The upper limit
value must always be greater than or equal to the lower limit.
c.
Low
To configure, select limits type as Low and press Set Limits to specify lower limit value. The lower limit
value must always be less than or equal to the upper limit.
3. Press Clear to return the limit value to the default value, 0.
[Channel] Menu Overview
144 Keysight DAQ970A User's Guide
