Keysight DAQ970A User Guide

Module Bank 1 Bank 2
DAQM900A Channels 1 through 10 Channels 11 through 20
DAQM901A Channels 1 through 10 Channels 11 through 20
DAQM902A Channels 1 through 8 Channels 9 through 16
DAQM908A Channels 1 through 20 Channels 21 through 40
Actuators and General-Purpose Switching
The DAQM903A Actuator provides 20 independent, isolated SPDT (single-pole, double-throw) or Form C
switches. This module offers simple on-off switching which you can use to control power devices or for cus-

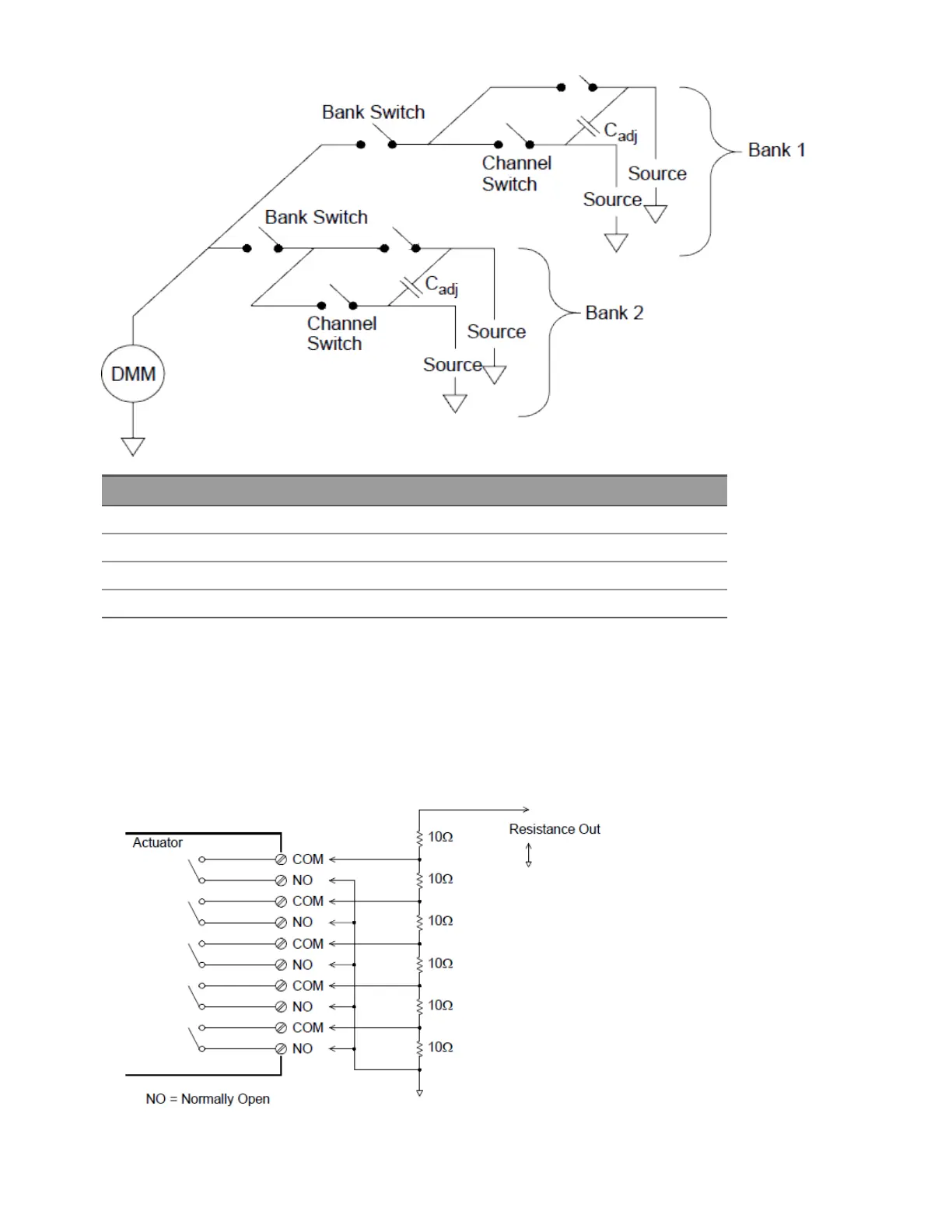

tom switching applications. For example, you can use an actuator to build a simple resistance ladder as
shown below:
4Measurement Tutorials
216 Keysight DAQ970A User's Guide

Keysight DAQ970A Specifications

General

Scan Rate	Up to 450 channels/sec
Connectivity	USB, LAN, GPIB (optional)
Display	4.3-inch color LCD
Operating Temperature	0 °C to 50 °C
Number of slots	3 slots
Measurement Types	DCV, ACV, DCI, ACI, 2-wire resistance, 4-wire resistance, frequency, temperature, capacitance
Voltmeter	6.5 digit
Resolution	22 bits
Memory	Non-volatile memory
