Keysight DAQ970A User Guide

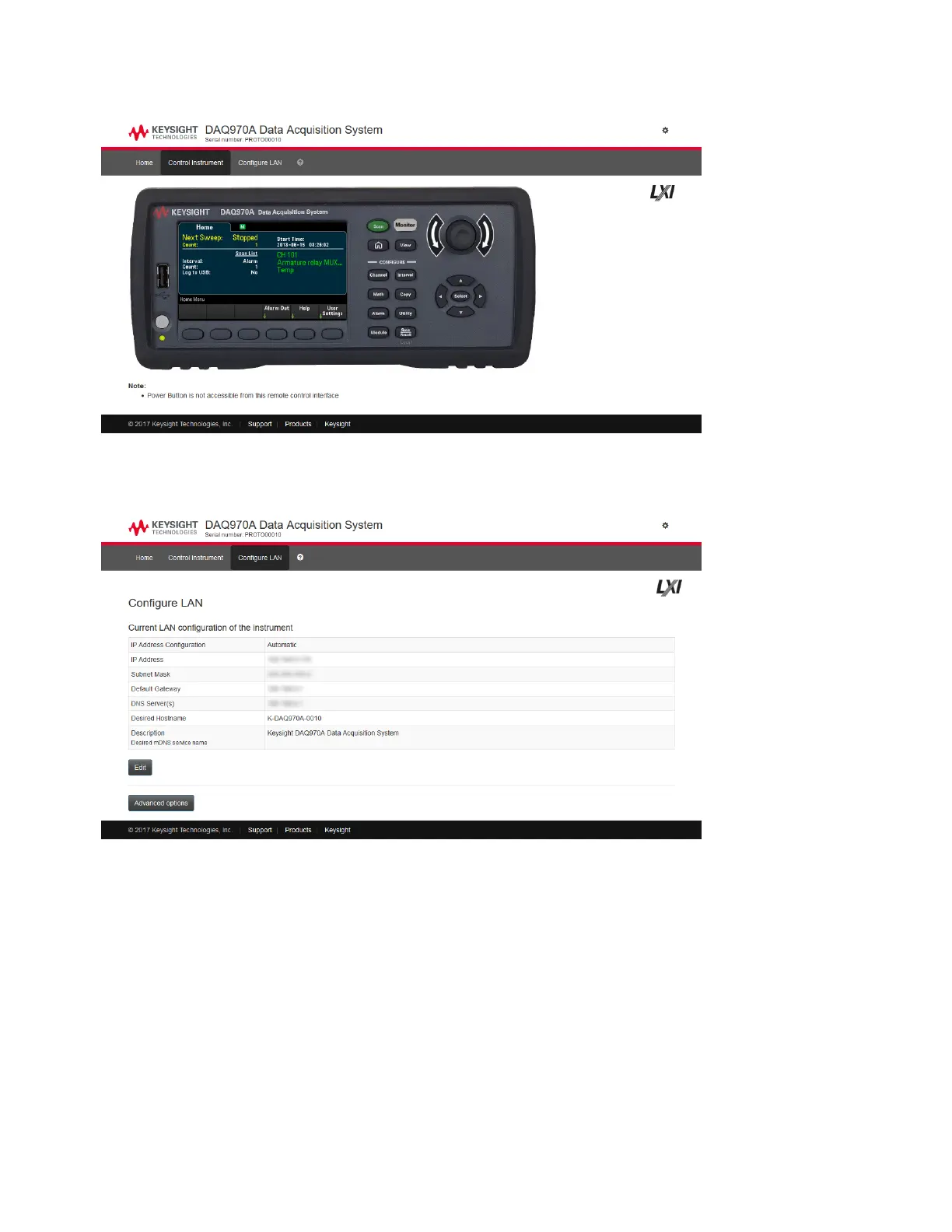

Control Instrument page
Configure LAN page
Click Edit button to edit network configuration page. When done, click Apply Changes to accept new set-
tings or click Cancel to ignore changes.
Click Advanced options button to reset network configuration options.
Help page
Help is available for each of the tabs described above. For example:
Keysight DAQ970A User's Guide 163
[Channel] Menu Overview

Keysight DAQ970A Specifications

General

Scan Rate	Up to 450 channels/sec
Connectivity	USB, LAN, GPIB (optional)
Display	4.3-inch color LCD
Operating Temperature	0 °C to 50 °C
Number of slots	3 slots
Measurement Types	DCV, ACV, DCI, ACI, 2-wire resistance, 4-wire resistance, frequency, temperature, capacitance
Voltmeter	6.5 digit
Resolution	22 bits
Memory	Non-volatile memory
