[Monitor] Menu
During scanning, you can monitor the measurement data on a selected channel by pressing the [Monitor]
key. The key's backlight is turned on while monitoring is enabled. The monitor annunciator will also be dis-
played, and the sample annunciator will flash when monitor measurements are made.
You can view the monitor data for all channels in the scan list, except for computed channels (channels 401
through 420). Monitoring of computed channels is only available while scanning and will only display the
reading from the most recent sweep. You can also view monitor data on the DAQM907A digital I/O and
totalizer channels even if they are not in the scan list.
Monitor measurements are made repetitively when scanning is idle or between sweeps of a scan. To stop
the monitoring mode and return to the Home menu page, press the [Monitor] key again on the Monitor
menu page.

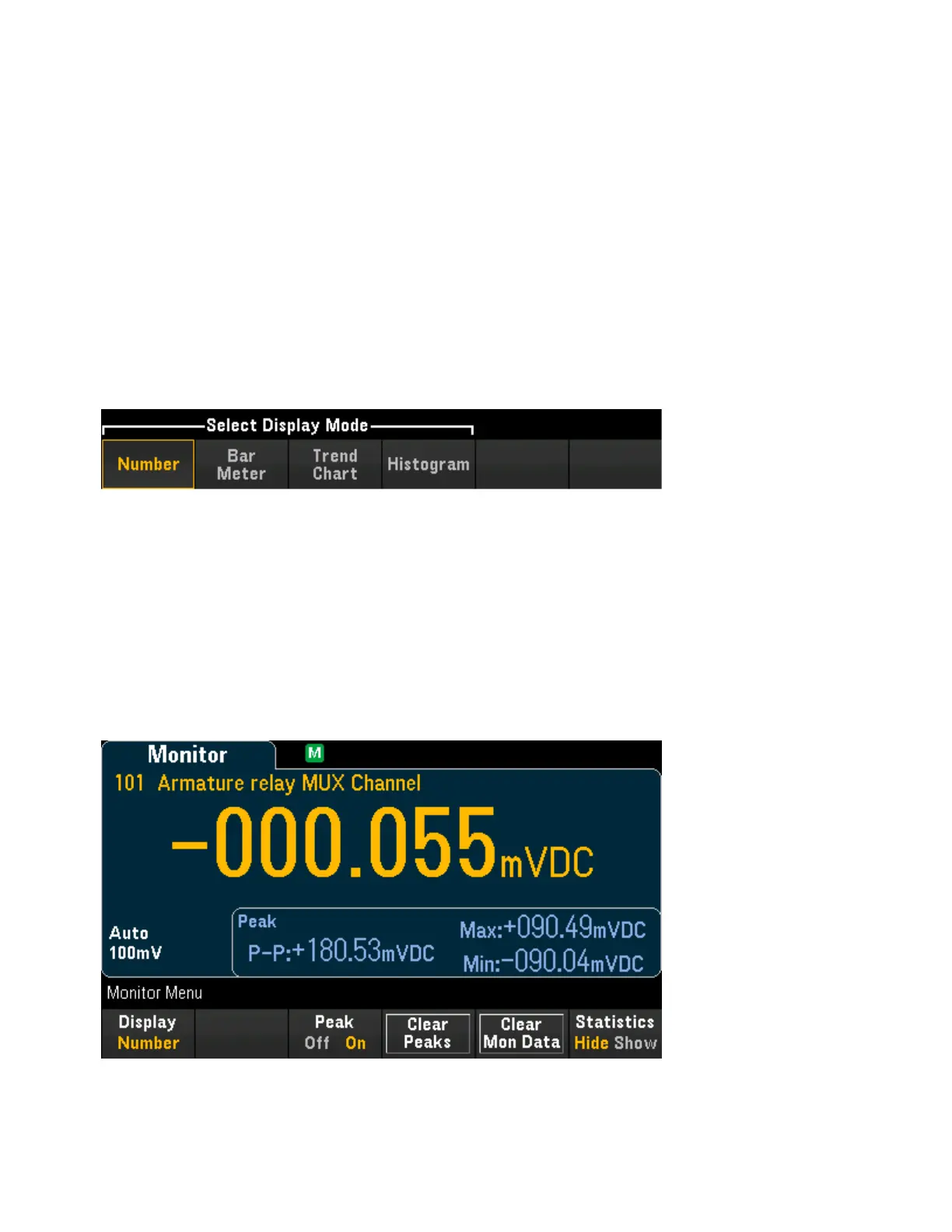

In the Monitor menu page, press Display to select the display mode as shown below:
Number
Bar Meter
Trend Chart
Histogram
Number
Displays readings as a number.
Press Peak to enable (On) or disable (Off) the measurement of the Minimum, Maximum, and Peak to Peak
values acquired within the measurement aperture. When enabled, Clear Peaks softkey will display. Press
3 Features and Functions
70 Keysight DAQ970A User's Guide

Keysight DAQ970A Specifications

General

Scan Rate	Up to 450 channels/sec
Connectivity	USB, LAN, GPIB (optional)
Display	4.3-inch color LCD
Operating Temperature	0 °C to 50 °C
Number of slots	3 slots
Measurement Types	DCV, ACV, DCI, ACI, 2-wire resistance, 4-wire resistance, frequency, temperature, capacitance
Voltmeter	6.5 digit
Resolution	22 bits
Memory	Non-volatile memory
