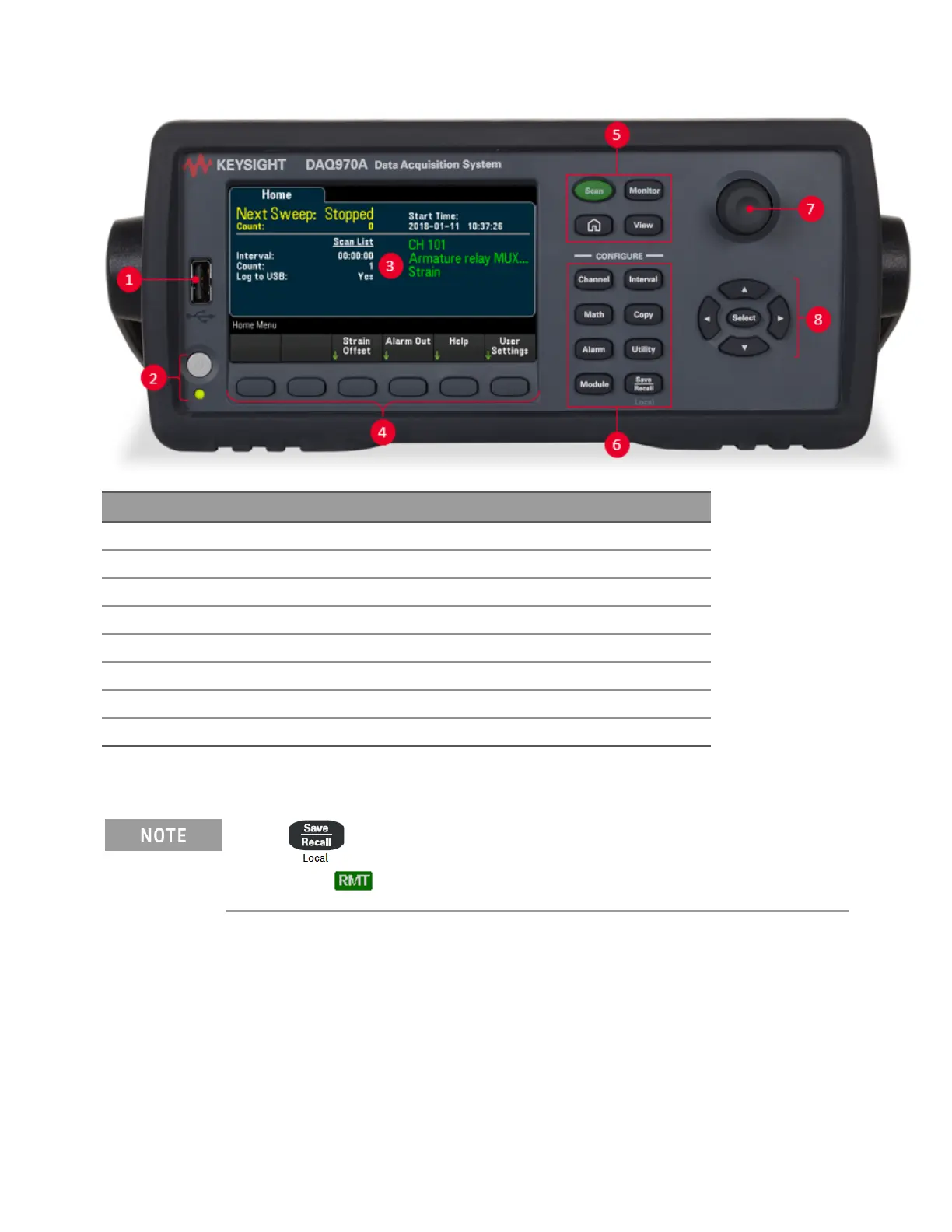

Front Panel at a Glance
Label Description
1 USB port
2 On/Standby switch with LEDindicator
3 Display
4 Softkeys
5 Measurement operation menu (to control the initiation of the measurements)
6 Measurement configuration menu (to set parameters for measurements)
7 Knob
8 Cursor navigation keypad
Front panel key
Press the key to return the instrument into local control when the instrument is in remote
(indicated by the annunciator).
