Keysight DAQ970A User Guide

Recall

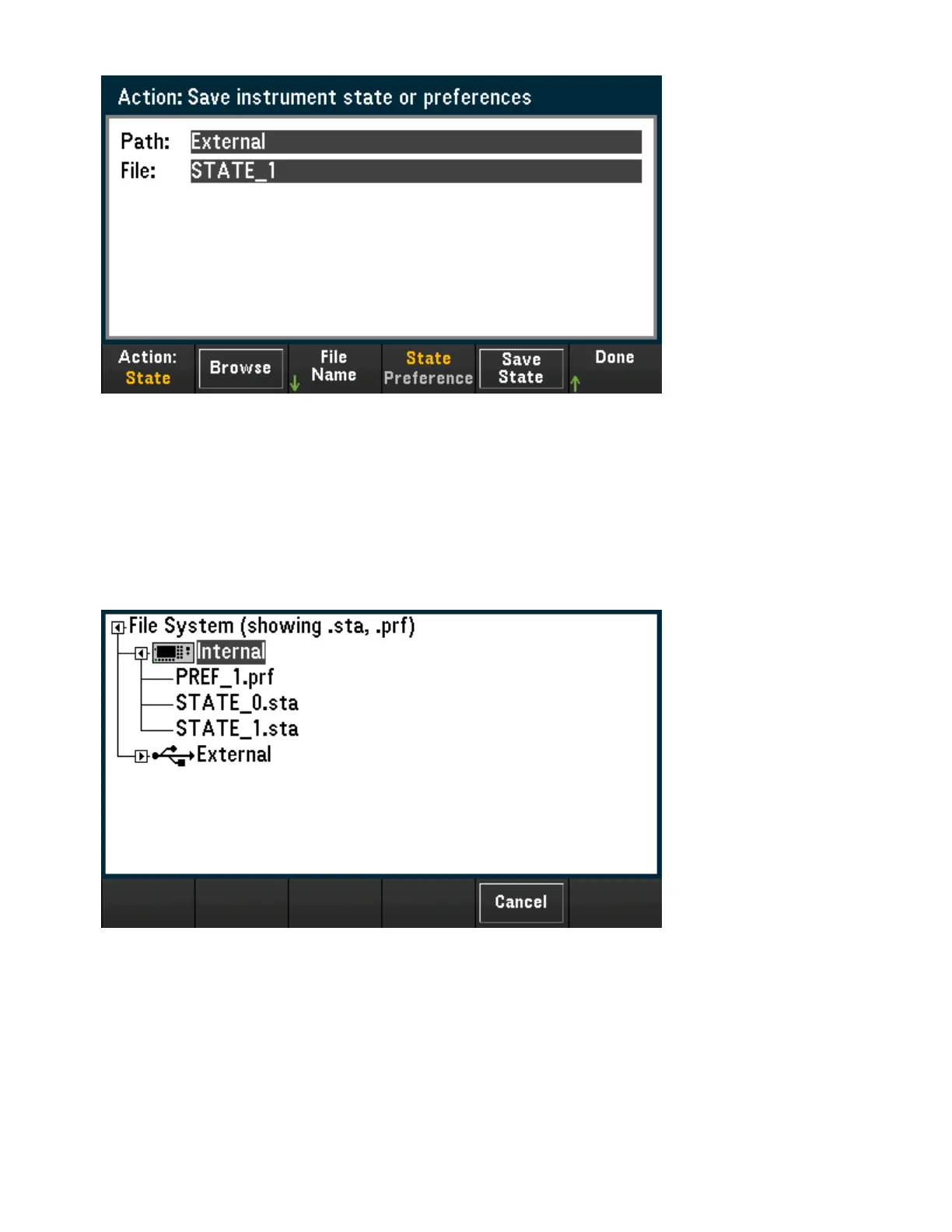

The Recall softkey allows you to recall a previously saved state file (.sta extension) or preference file (.prf
extension). Use the knob or the front panel arrow keys to browse to a file on internal flash memory (Internal)
or the USB drive (External). Use the right arrow key to expand a folder. Press Select to recall the selected
file.
Set to Defaults
The Set to Defaults softkey allows you to return the selected settings to their Factory Reset and Preset val-
ues.
[Channel] Menu Overview
158 Keysight DAQ970A User's Guide

Keysight DAQ970A Specifications

General

Scan Rate	Up to 450 channels/sec
Connectivity	USB, LAN, GPIB (optional)
Display	4.3-inch color LCD
Operating Temperature	0 °C to 50 °C
Number of slots	3 slots
Measurement Types	DCV, ACV, DCI, ACI, 2-wire resistance, 4-wire resistance, frequency, temperature, capacitance
Voltmeter	6.5 digit
Resolution	22 bits
Memory	Non-volatile memory
