Keysight DAQ970A User Guide

Module labeling

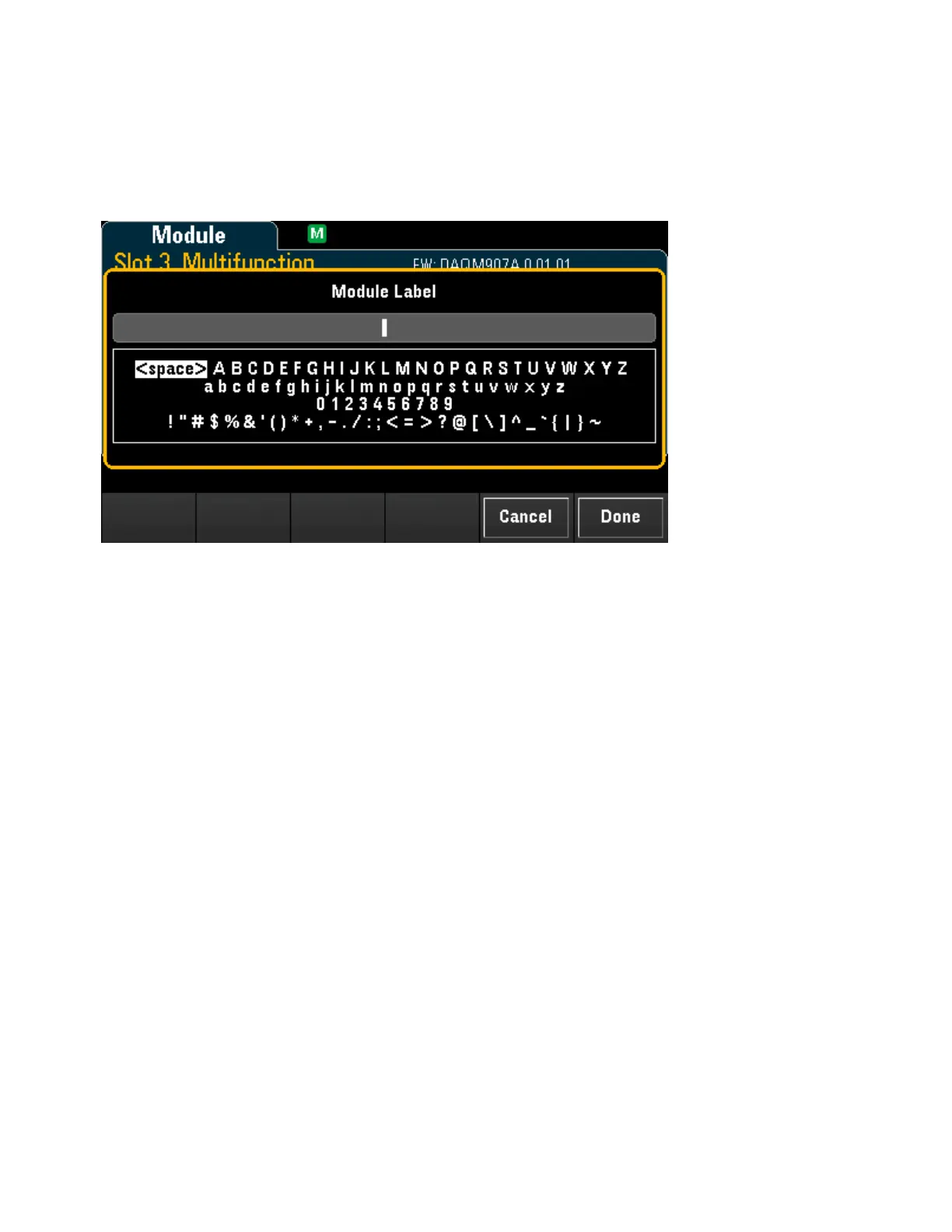

Press Module Label softkey to specify a label for current selected module. Use the knob or the front panel
arrow keys to enter the characters into the display. Note that you are only allowed to enter maximum of 10
characters for the module label, including letters, numbers, and special characters. To return into the
default module label, press Module Label > Clear All > Done.
Keysight DAQ970A User's Guide 153
[Channel] Menu Overview

Keysight DAQ970A Specifications

General

Scan Rate	Up to 450 channels/sec
Connectivity	USB, LAN, GPIB (optional)
Display	4.3-inch color LCD
Operating Temperature	0 °C to 50 °C
Number of slots	3 slots
Measurement Types	DCV, ACV, DCI, ACI, 2-wire resistance, 4-wire resistance, frequency, temperature, capacitance
Voltmeter	6.5 digit
Resolution	22 bits
Memory	Non-volatile memory
