Keysight DAQ970A User Guide

View the help information for a front panel key

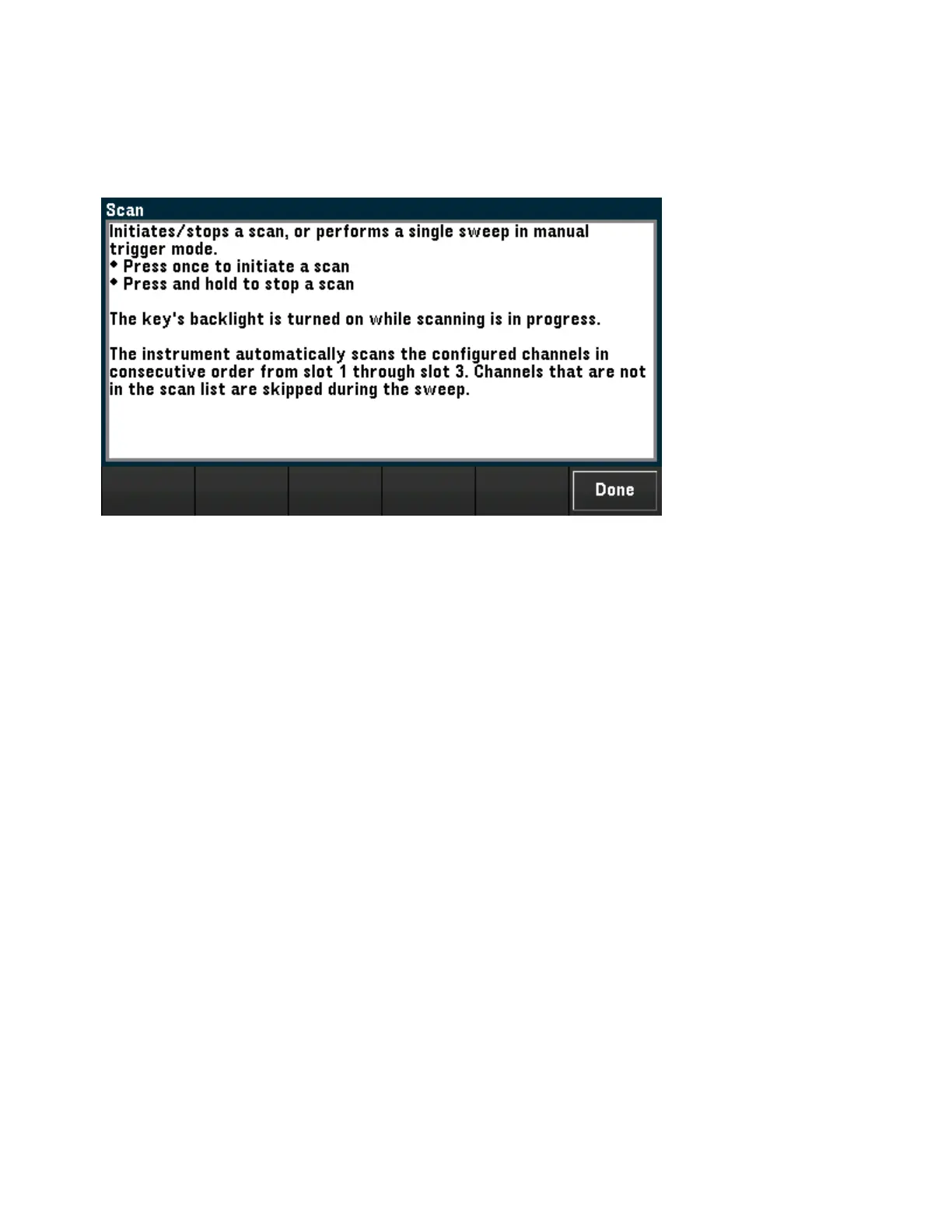

Press and hold any front panel key or softkey to get context-sensitive help, such as [Scan]. If the message
contains more information than will fit on the display, use the knob or the front panel arrow keys to load in
previous/next page.
Press Done to exit the help.
View the instrument information
Press [Home] > Help > About to view the instrument information such as product serial number, IP address
(when connected to LAN interface), and currently installed firmware revision. Press Done to exit.
Keysight DAQ970A User's Guide 45
2 Quick Start

Keysight DAQ970A Specifications

General

Scan Rate	Up to 450 channels/sec
Connectivity	USB, LAN, GPIB (optional)
Display	4.3-inch color LCD
Operating Temperature	0 °C to 50 °C
Number of slots	3 slots
Measurement Types	DCV, ACV, DCI, ACI, 2-wire resistance, 4-wire resistance, frequency, temperature, capacitance
Voltmeter	6.5 digit
Resolution	22 bits
Memory	Non-volatile memory
