Keysight DAQ970A User Guide

You can configure the list of channels for 4-wire external scanning. When enabled, the instrument auto-
matically pairs channel n with channel n+10

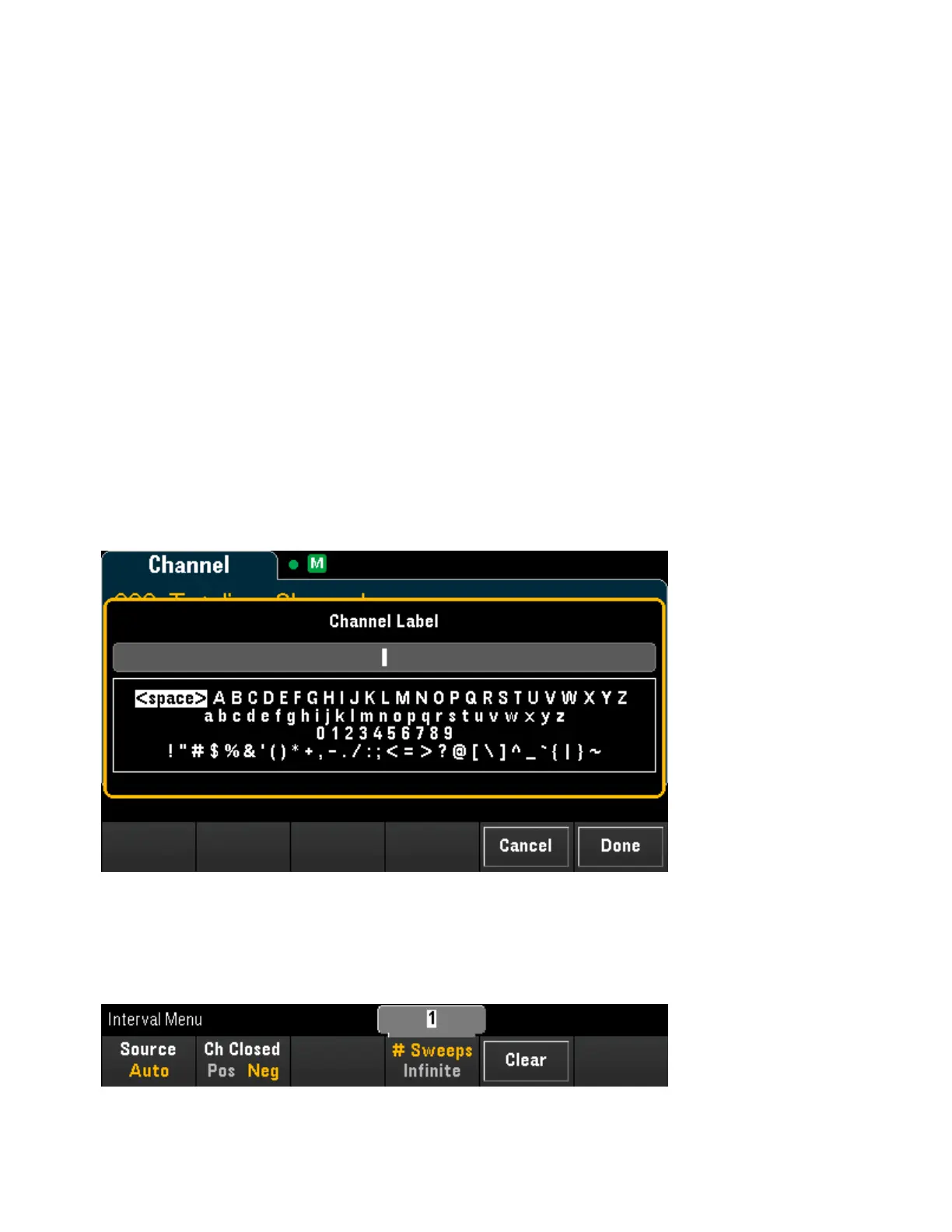

Channel Labeling
Press Channel Label softkey to specify a label for current selected channel. Use the knob or the front panel
arrow keys to enter the characters into the display. Note that you are only allowed to enter maximum of 10
characters for the module label, including letters, numbers, and special characters. To return into the
default channel label, press Channel Label > Clear All > Done. This setting is applicable to all modules
installed, as well as the computed channels.
[Interval] Menu
Press [Interval] key on the front panel to configure what starts each a sweep and the number of sweeps in
the scan.
[Channel] Menu Overview
134 Keysight DAQ970A User's Guide

Keysight DAQ970A Specifications

General

Scan Rate	Up to 450 channels/sec
Connectivity	USB, LAN, GPIB (optional)
Display	4.3-inch color LCD
Operating Temperature	0 °C to 50 °C
Number of slots	3 slots
Measurement Types	DCV, ACV, DCI, ACI, 2-wire resistance, 4-wire resistance, frequency, temperature, capacitance
Voltmeter	6.5 digit
Resolution	22 bits
Memory	Non-volatile memory
