Keysight DAQ970A User Guide

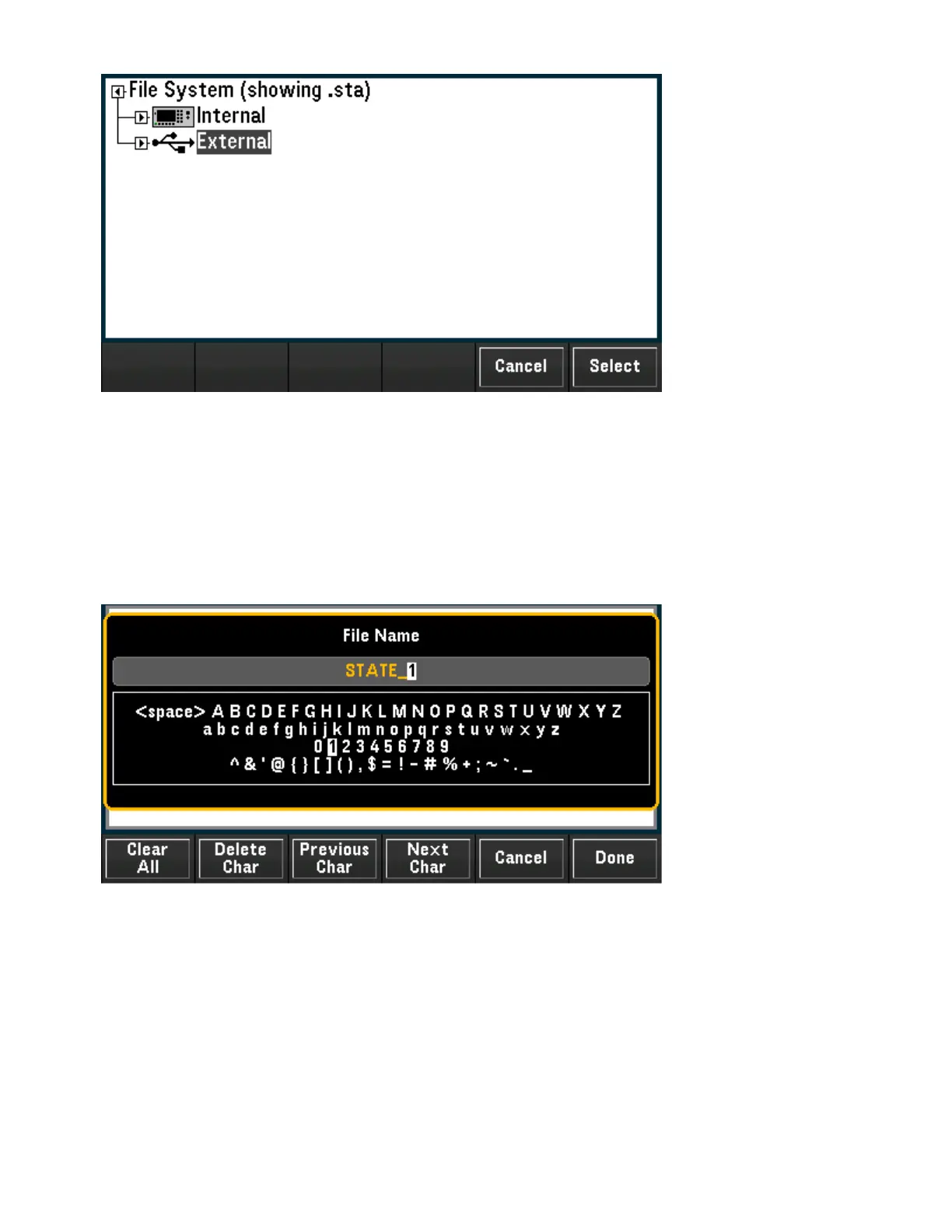

Use the knob or the front panel arrow keys to navigate through the list, and press Select or Cancel to exit
the browse window. The left and right arrow keys contract or expand a folder to hide or show its files.
File Name
Sets the folder or file name for the selected action. To specify a folder or file name, use the knob or the front
panel arrow keys to select the desired character. Then press Select to go to the next character. When you
have finished entering characters, press Done.
State/Preference
Press State/Preference to select whether the settings to be saved are instrument state settings or user
preferences. Then press Save State/Save Preference on the next softkey to save the current state or user
preferences to the selected path and file name, and adds the .sta or .prf extension to the file name.
State - Saves the measurement configuration including channel configurations and scan settings.
Preference - Saves non-volatile settings associated with instrument, including user preferences and I/O
settings.
Keysight DAQ970A User's Guide 157
[Channel] Menu Overview

Keysight DAQ970A Specifications

General

Scan Rate	Up to 450 channels/sec
Connectivity	USB, LAN, GPIB (optional)
Display	4.3-inch color LCD
Operating Temperature	0 °C to 50 °C
Number of slots	3 slots
Measurement Types	DCV, ACV, DCI, ACI, 2-wire resistance, 4-wire resistance, frequency, temperature, capacitance
Voltmeter	6.5 digit
Resolution	22 bits
Memory	Non-volatile memory
