2. Press [Channel] and use the knob or the front panel arrow keys to select the DIOchannels (channel 01
and 02).
3. Press In Scan to specify whether to include (On) or exclude (Off) the DIO channel from the scan list.
l
Read - Select Read to read the bit patterns directly from a digital input port.
l
Write - Select Write to specify and output the bit pattern to the specified port.

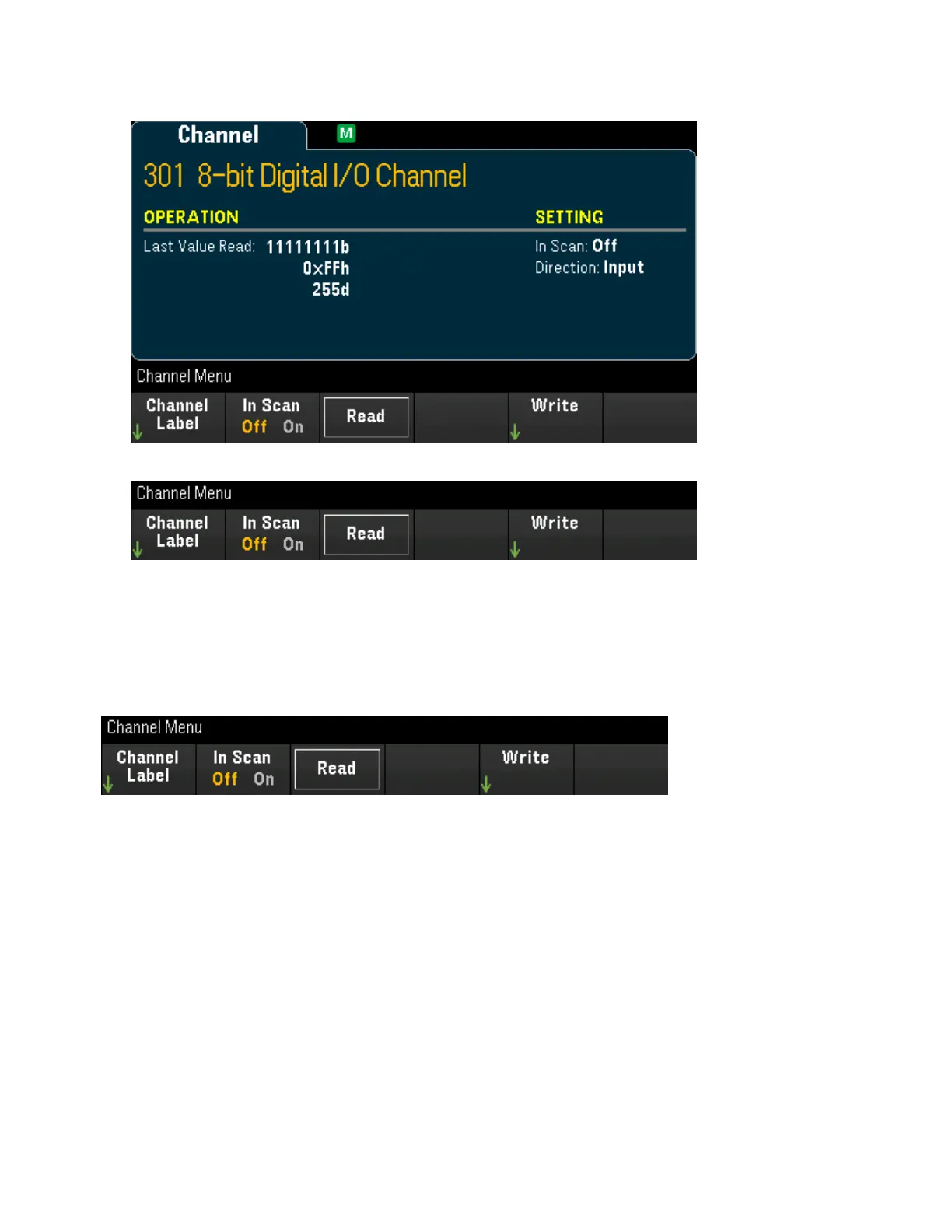

To read a digital input port
Press Read to define the DIOdirection as Input.
To write to a digital output port
1. Press [Module] and use the knob or the front panel arrow keys to select the slot containing the mul-
tifunction module.
[Channel] Menu Overview
122 Keysight DAQ970A User's Guide

Keysight DAQ970A Specifications

General

Scan Rate	Up to 450 channels/sec
Connectivity	USB, LAN, GPIB (optional)
Display	4.3-inch color LCD
Operating Temperature	0 °C to 50 °C
Number of slots	3 slots
Measurement Types	DCV, ACV, DCI, ACI, 2-wire resistance, 4-wire resistance, frequency, temperature, capacitance
Voltmeter	6.5 digit
Resolution	22 bits
Memory	Non-volatile memory
