Keysight DAQ970A User Guide

Delay - Selects whether the delay between channels in the scan list will be automatically or manually selec-

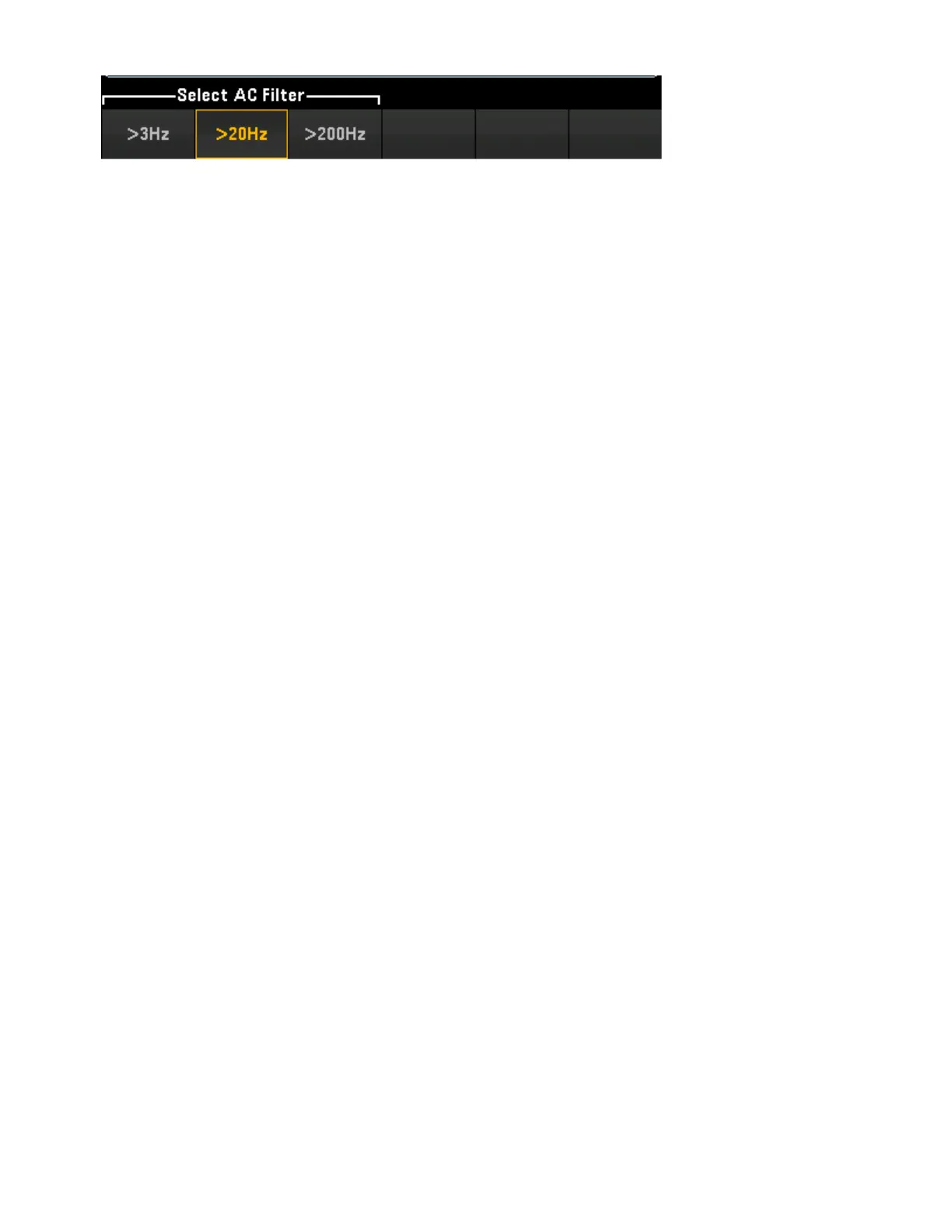

ted. By selecting Auto, instrument will automatically determine the channel delay based on measurement
function, range, integration time, and AC filter setting. By selecting Time, the specified delay (time in
seconds) is inserted between the relay closure and the actual measurement on each channel, in addition to
any delay that will implicitly occur due to relay settling time.
[Channel] Menu Overview
112 Keysight DAQ970A User's Guide

Keysight DAQ970A Specifications

General

Scan Rate	Up to 450 channels/sec
Connectivity	USB, LAN, GPIB (optional)
Display	4.3-inch color LCD
Operating Temperature	0 °C to 50 °C
Number of slots	3 slots
Measurement Types	DCV, ACV, DCI, ACI, 2-wire resistance, 4-wire resistance, frequency, temperature, capacitance
Voltmeter	6.5 digit
Resolution	22 bits
Memory	Non-volatile memory
