Keysight DAQ970A User Guide

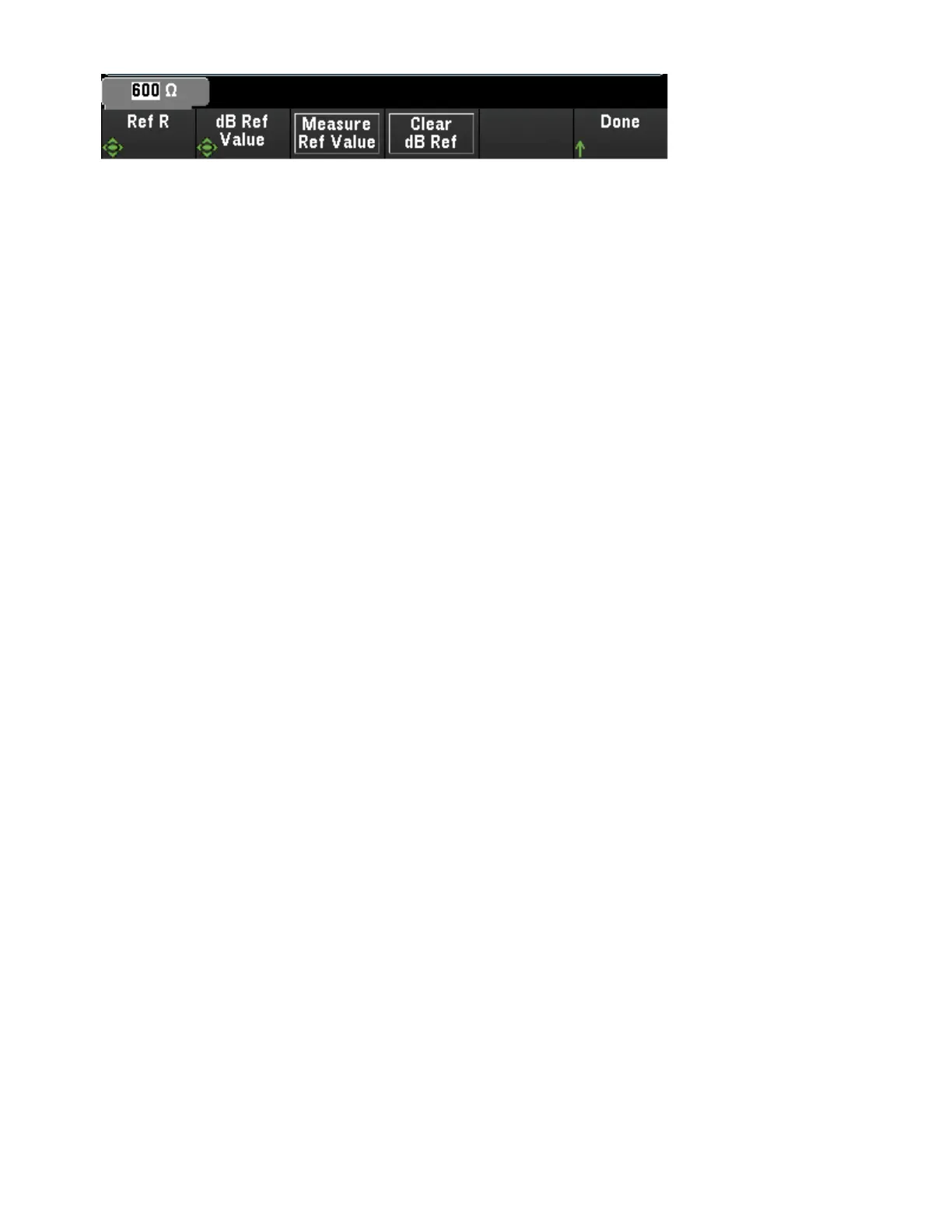

The reference value can be a measurement converted to dBm (Measure Ref Value softkey), or you can spe-
cify a reference value (dB Ref Value softkey).
Press Clear dB Ref to clear the reference value for dB measurements.
Keysight DAQ970A User's Guide 139
[Channel] Menu Overview

Keysight DAQ970A Specifications

General

Scan Rate	Up to 450 channels/sec
Connectivity	USB, LAN, GPIB (optional)
Display	4.3-inch color LCD
Operating Temperature	0 °C to 50 °C
Number of slots	3 slots
Measurement Types	DCV, ACV, DCI, ACI, 2-wire resistance, 4-wire resistance, frequency, temperature, capacitance
Voltmeter	6.5 digit
Resolution	22 bits
Memory	Non-volatile memory
