You can set the output voltage to any value between ±12 VDC, in 100 µV steps. Each DAC is earth ref-
erenced, it cannot float. Each DAC channel is capable of supplying 15 mA maximum current during output
voltage mode. Or you can set the DAC to constant current mode, to output any current between ±24 mA,
in 0.2 µA steps.
Each DAC channel is capable of supplying 24 mA maximum current.
You must limit the output current to 40 mA for each slot (two DAC channels).
The actuator/general purpose switch
You can think of the DAQM903A Actuator as a control output because it is often used to control external
power devices. The actuator provides 20 independent, isolated Form C (SPDT) switches.
Each channel can switch up to 300 V DC or AC rms. Each switch can also switch up to 1 A DCor AC rms up

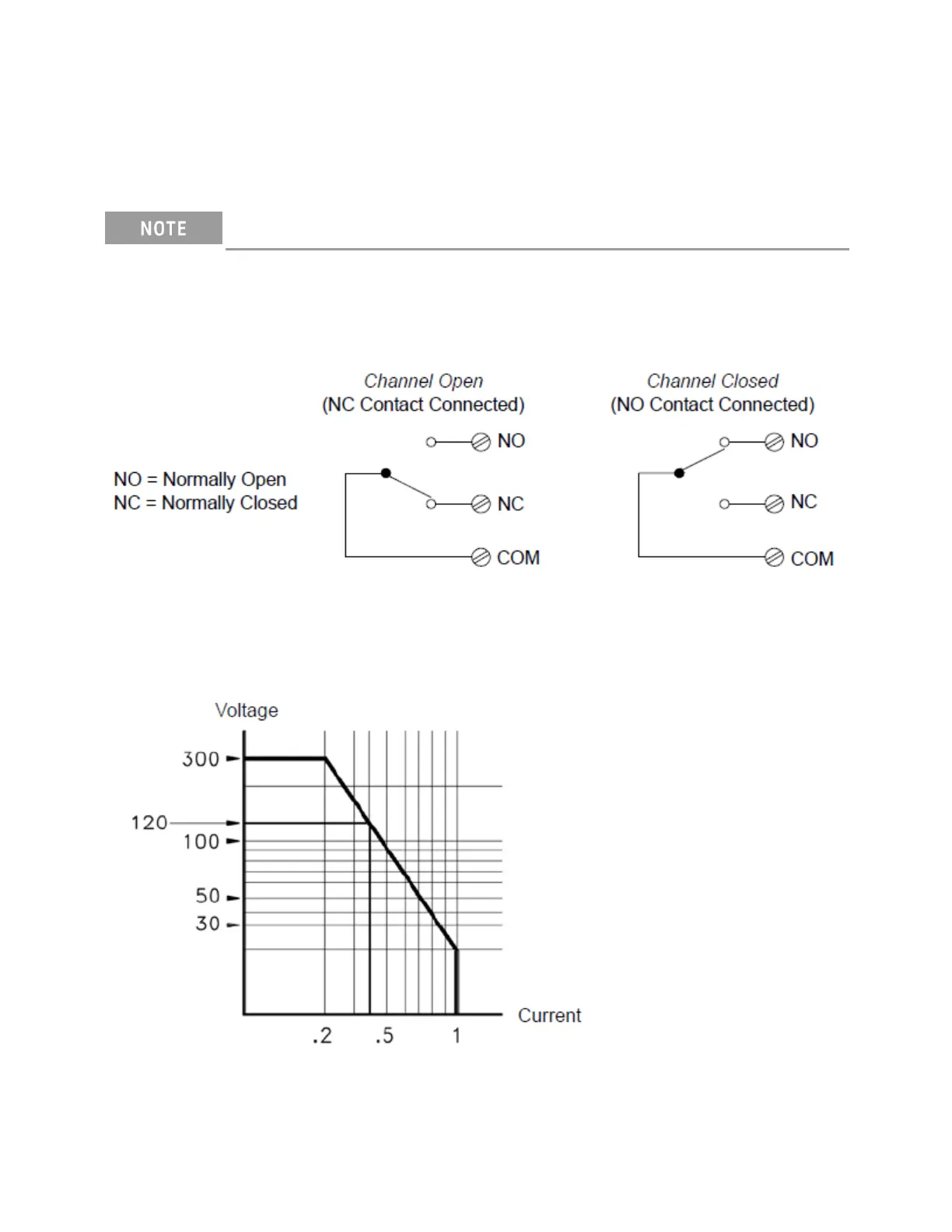

to maximum 50 W. For example, the maximum current that you can switch at 120 V is 0.45 A as shown
below:
For control applications, the actuator has the following advantages:
Keysight DAQ970A User's Guide 65
3 Features and Functions

Keysight DAQ970A Specifications

General

Scan Rate	Up to 450 channels/sec
Connectivity	USB, LAN, GPIB (optional)
Display	4.3-inch color LCD
Operating Temperature	0 °C to 50 °C
Number of slots	3 slots
Measurement Types	DCV, ACV, DCI, ACI, 2-wire resistance, 4-wire resistance, frequency, temperature, capacitance
Voltmeter	6.5 digit
Resolution	22 bits
Memory	Non-volatile memory
