Keysight DAQ970A User Guide

1.

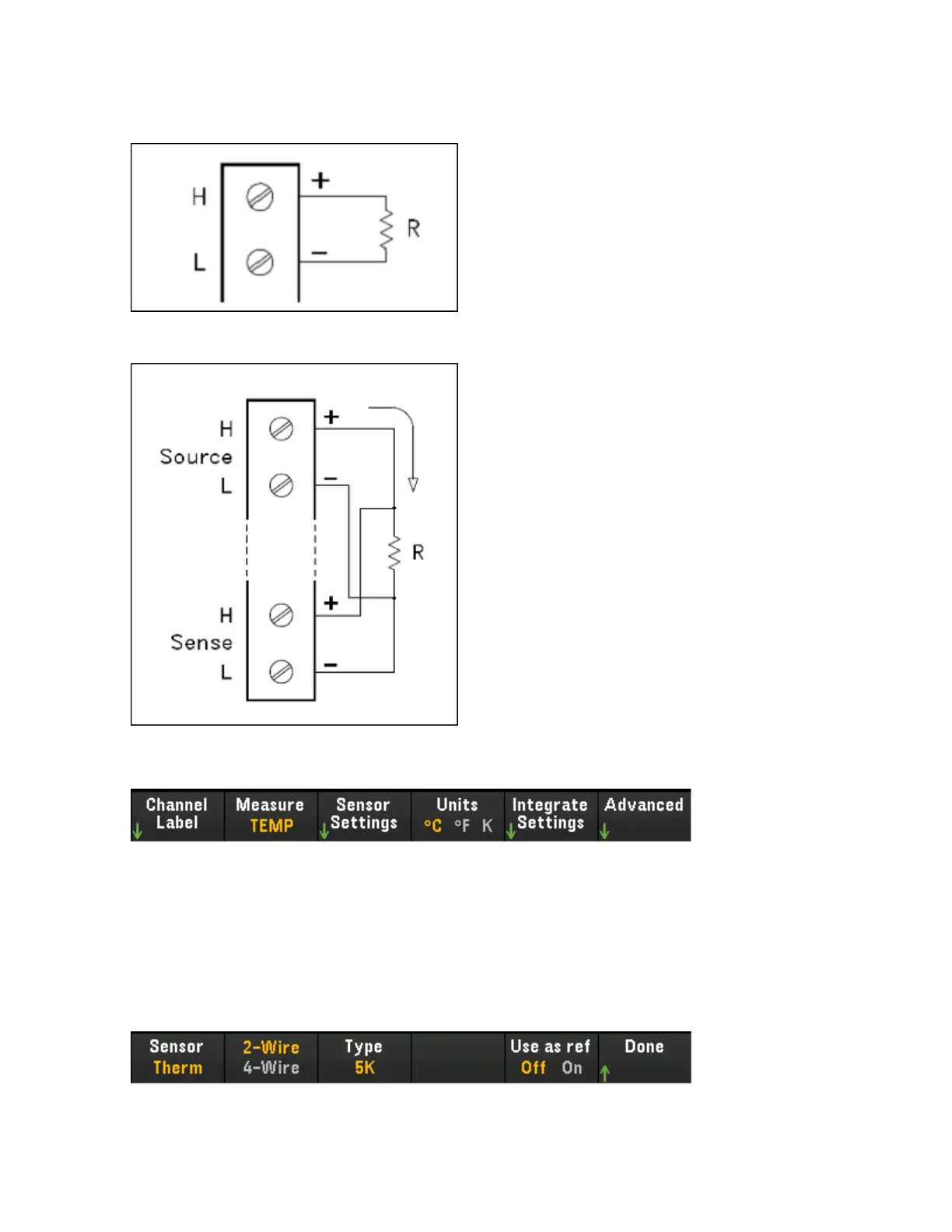

Connect a thermistor to the module's screw terminals.
2-wire thermistor:
4-wire thermistor:
2. Press [Channel] > Measure, and select TEMP from the selection menu.
3. Press the Units softkey to specify the temperature measurement units as °C (Celsius), °F (Fahrenheit),
or K (Kelvin). You can mix temperature units on different channels within the instrument and on the
same module.
4. Press Sensor Settings > Sensor, specify the type of transducer probe used as 2-wire or 4-wire Therm,
and press Type softkey to select the type of thermistor. Supported types are 2.2K, 5K (default), and
10K.
[Channel] Menu Overview
92 Keysight DAQ970A User's Guide

Keysight DAQ970A Specifications

General

Scan Rate	Up to 450 channels/sec
Connectivity	USB, LAN, GPIB (optional)
Display	4.3-inch color LCD
Operating Temperature	0 °C to 50 °C
Number of slots	3 slots
Measurement Types	DCV, ACV, DCI, ACI, 2-wire resistance, 4-wire resistance, frequency, temperature, capacitance
Voltmeter	6.5 digit
Resolution	22 bits
Memory	Non-volatile memory
