4-wire RTD:
2. Press [Channel] > Measure, and select TEMP from the selection menu.
3. Press the Units softkey to specify the temperature measurement units as °C (Celsius), °F (Fahrenheit),
or K (Kelvin). You can mix temperature units on different channels within the instrument and on the
same module.

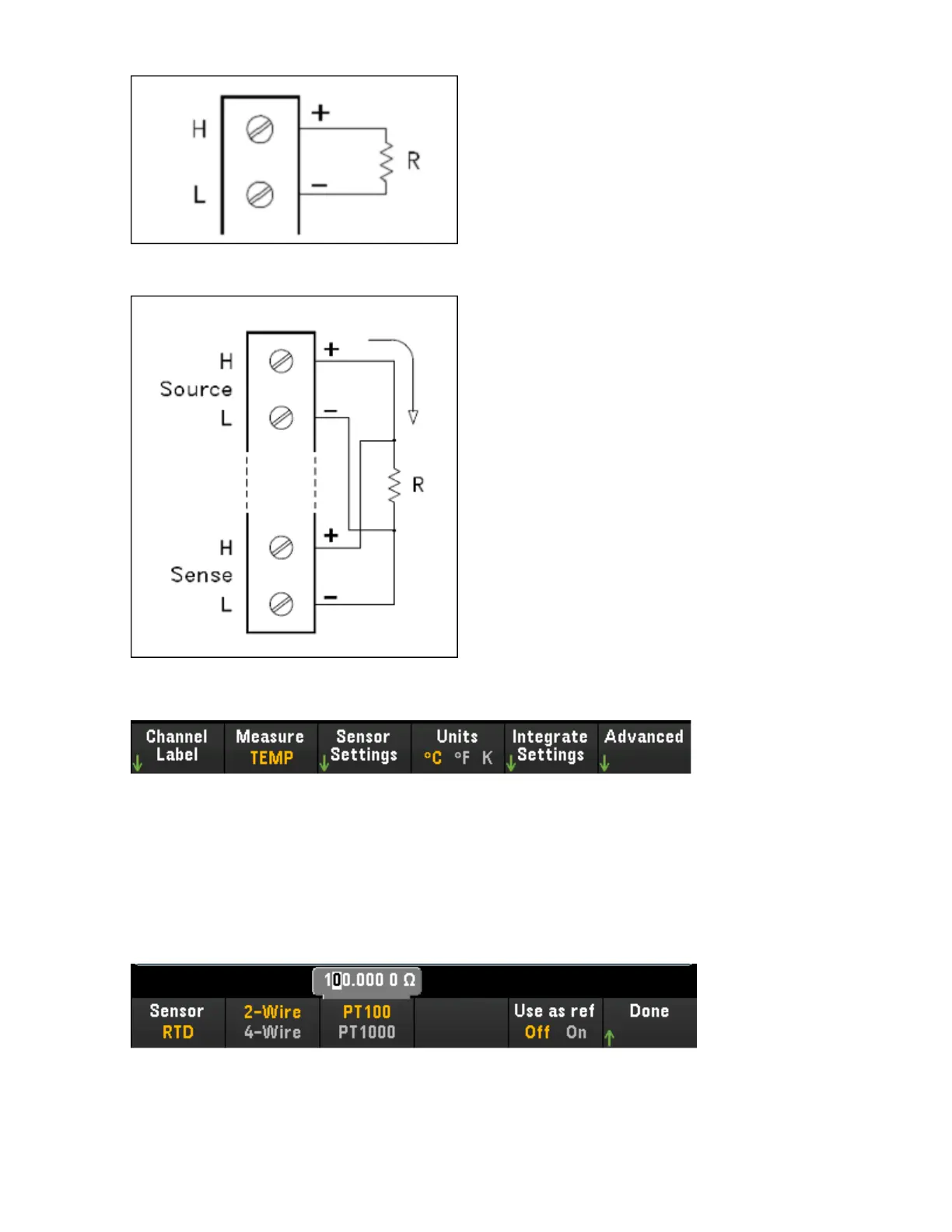

4. Press Sensor Settings > Sensor, specify the type of transducer probe used as 2-wire or 4-wire RTD.
Then, selects the nominal resistance, R
0
, as PT100 (100 Ω) or PT1000 (1000 Ω). R
0
is the nominal res-
istance of a RTD at 0 °C.
5. Press Use as ref to enable (On) or disable (Off) the currently selected channel to be used as the ref-
erence channel for subsequent thermocouple measurements that specify an external reference source.
[Channel] Menu Overview
94 Keysight DAQ970A User's Guide

Keysight DAQ970A Specifications

General

Scan Rate	Up to 450 channels/sec
Connectivity	USB, LAN, GPIB (optional)
Display	4.3-inch color LCD
Operating Temperature	0 °C to 50 °C
Number of slots	3 slots
Measurement Types	DCV, ACV, DCI, ACI, 2-wire resistance, 4-wire resistance, frequency, temperature, capacitance
Voltmeter	6.5 digit
Resolution	22 bits
Memory	Non-volatile memory
