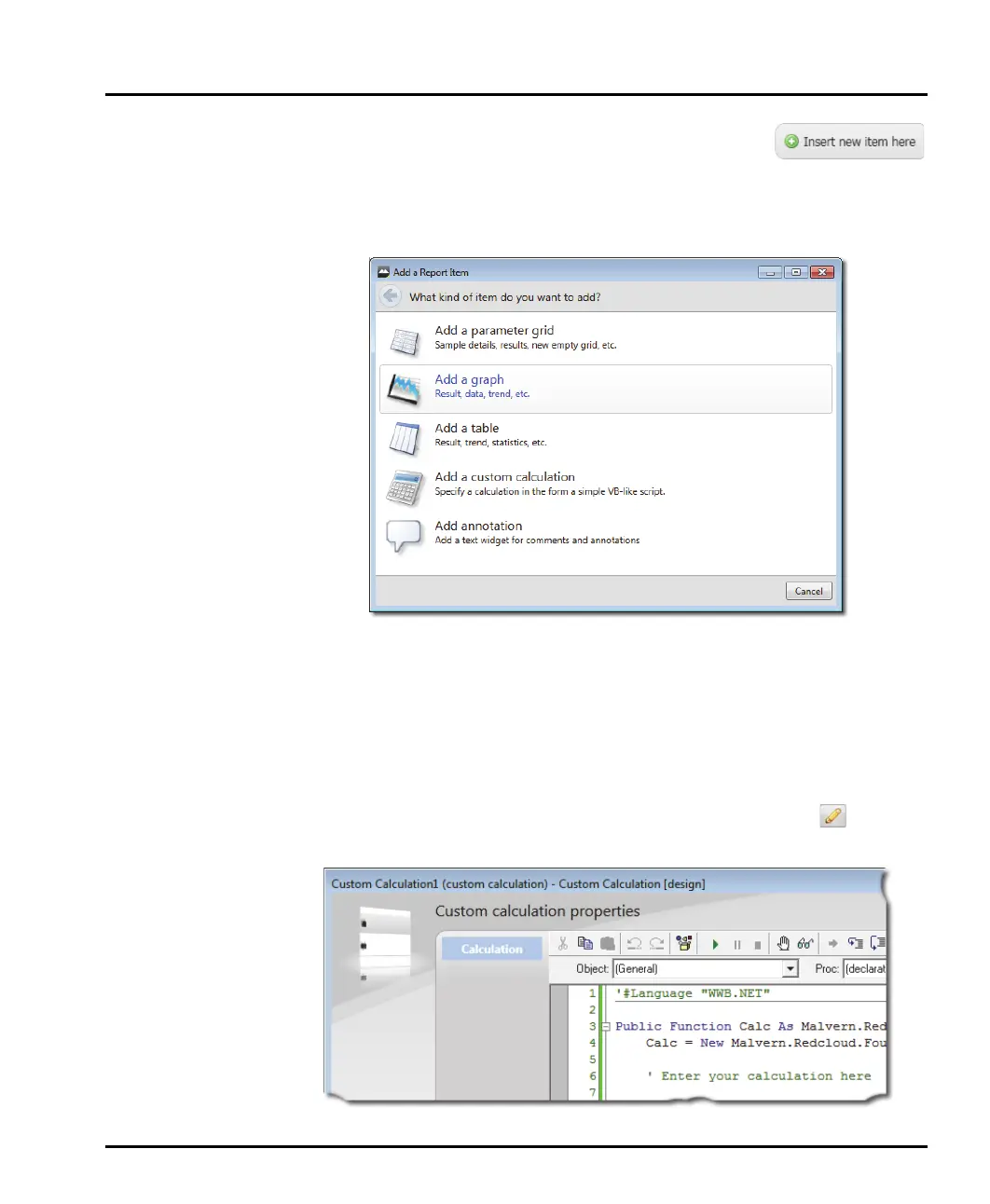

Chapter 7 Reporting
Page 7-12 MAN 0474
3. To add a new item to a report, click the Insert new item
here button.
If editing an existing report, this button is
placed between each section of the report.
4. The Add a Report item window is displayed, from which the following
choices are available:
Add a parameter grid - a parameter grid contains just parameter infor-
mation, it is also possible to then select the individual parameters that are
required.
Add a graph - choose from either the Result, Trend or Data graph type.
Add a table - choose from either the Result, Trend, Data or Fit table.
Add a Custom calculation - choose a Text calculation. Once the Calcu-
lation section is added to the report template, select the edit icon and
construct the calculations using Custom calculation properties editor.

Table of Contents

Other manuals for Malvern Mastersizer 3000

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Malvern Mastersizer 3000 and is the answer not in the manual?

Malvern Mastersizer 3000 Specifications

General IconGeneral
Measurement principleLaser diffraction
Blue laser wavelength470 nm
Sample dispersion optionsWet and dry dispersion
Data acquisition rate10 kHz
Particle size range0.01 to 3500 microns
Laser typeHe-Ne and solid state
AccuracyBetter than 1%
RepeatabilityBetter than 0.5%
TechnologyMie and Fraunhofer theories
Sample dispersion unitsHydro MV, Hydro LV, Aero S
Optical modelMie theory
Power requirements100-240 V, 50/60 Hz
Detector arrangementLog-spaced array
