Operating elements for driving
3.2 Short description of the operating elements
Operating manual GMK 6400 3 112 993 en 3 - 51
12.07.2013

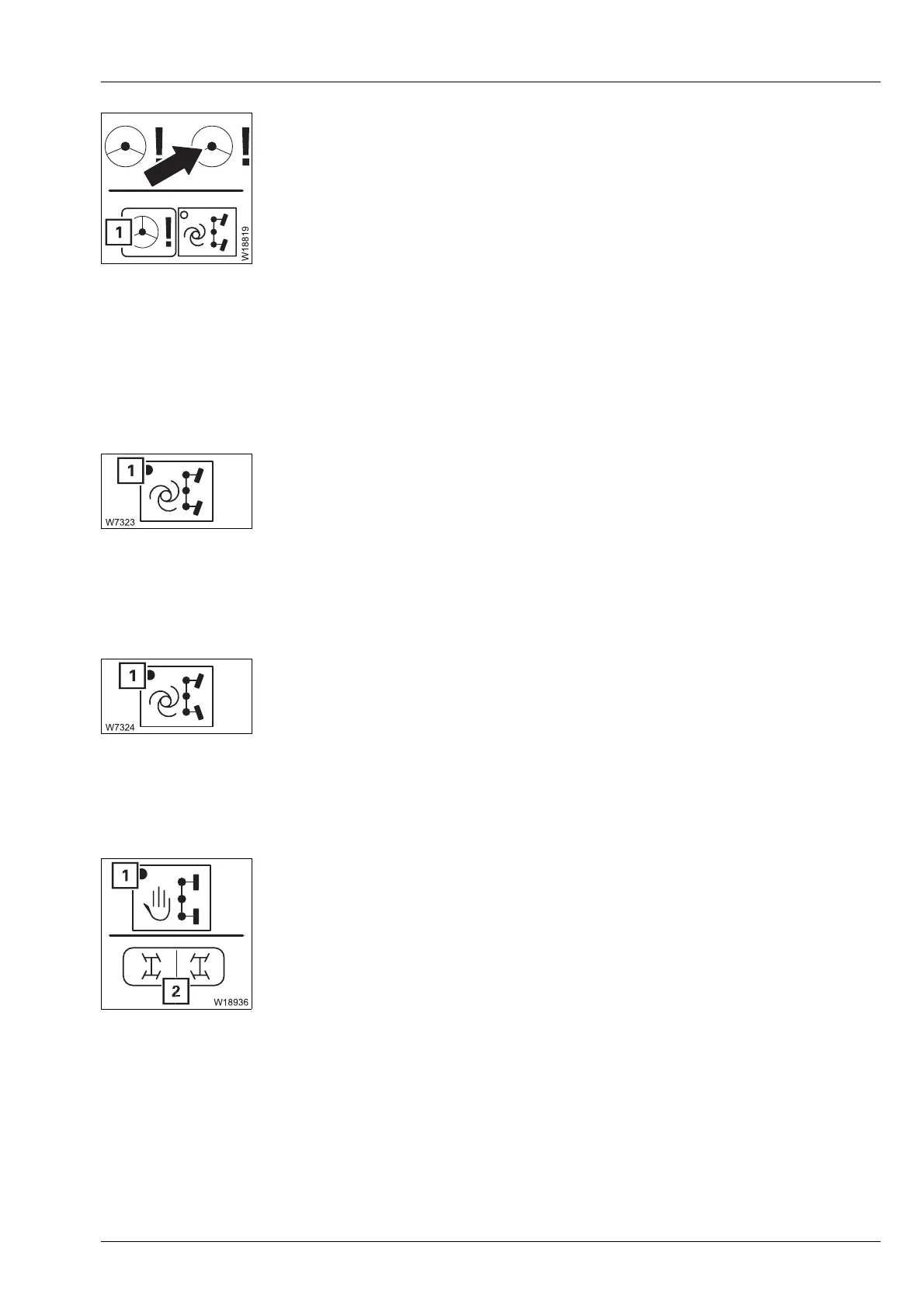

Steering system warning
ECOS display Main menu
Separate steering crab travel mode on/off
Separate steering for driving around corners on/off
Manual separate steering on/off
s
–On: Steering system defective – stop immediately.
Display symbol (1) – 5th and 6th axle cannot be steered;
if it is possible, it can only be steered in straight running
position – max. 20 km/h (12 mph)
– Off: No error in the steering system
After engine start;
à p. 4 - 20
While driving;
à p. 5 - 37
– Switching on: Press button 1 x – dot ( 1 ) green, maximum 5 km/h (3 mph)
– Steering wheel steers 1st and 2nd axle lines
– 3rd to 6th axle line steer in the same direction
– Switching off: Press button 1 x – dot (1) black
à p. 5 - 66
– Switching on:
Press button 1 x – dot ( 1 ) green, maximum 5 km/h (3 mph )
– Steering wheel steers 1st and 2nd axle lines
– 3rd to 6th axle lines steer for the smallest turning circle
– Switching off: Press button 1 x – dot (1) black
à p. 5 - 66
– Switching on:
Press button once – dot ( 1 ) green, maximum 5 km/h (3 mph)
– Steering wheel steers 1st and 2nd axle lines
– Rocker button (2) steers the 5th and 6th axle line
– 3rd and 4th axle line steer in a suitable manner for
crab travel mode or driving around corners, depend-
ing on the position of the axle lines.
– Switching off: Press button once – dot (1) black
à p. 5 - 66
