10.09.2013
2 3 113 014 en Additional page GMK 6400

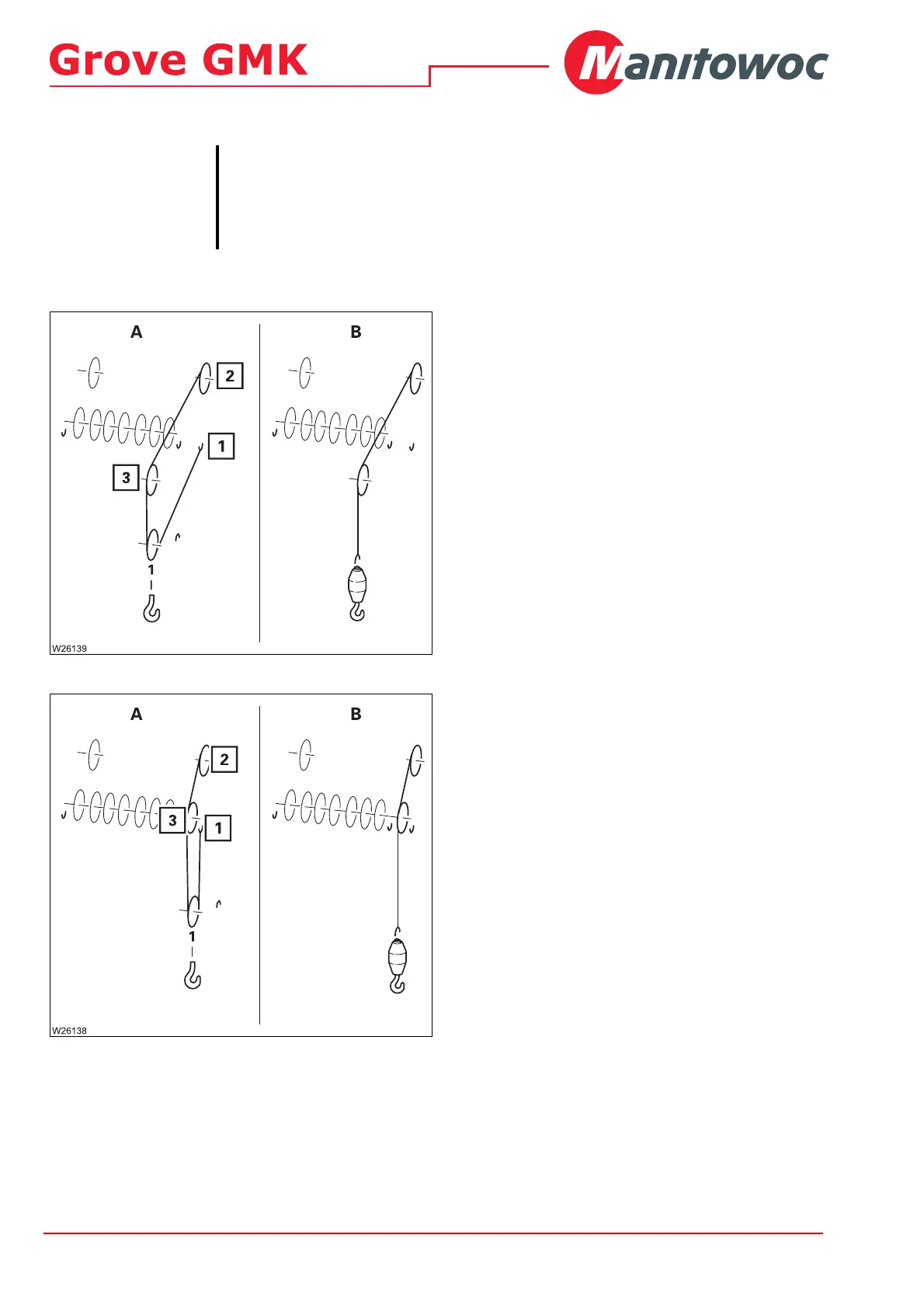

With 7 head sheaves
For use of the second head sheave (2) you will
need an auxiliary single-sheave boom top (3).
• Use the outer rope attachment point (1) for
2-fall reeving.
With 7 head sheaves and additional head
sheave
• Only use the second head sheave (2)
together with the additional head sheave
(3).
• Use the outer rope attachment point (1) for
2-fall reeving.
G
Risk of accident due to a damaged hoist rope
Always use the second head sheave together with the additional head
sheave located underneath it or with the auxiliary single-sheave boom top.
This prevents the hoist rope from becoming overloaded, snapping during
operation and letting the load fall.
Reeving
A 2-fall
B 1-fall
Reeving
A 2-fall
B 1-fall
