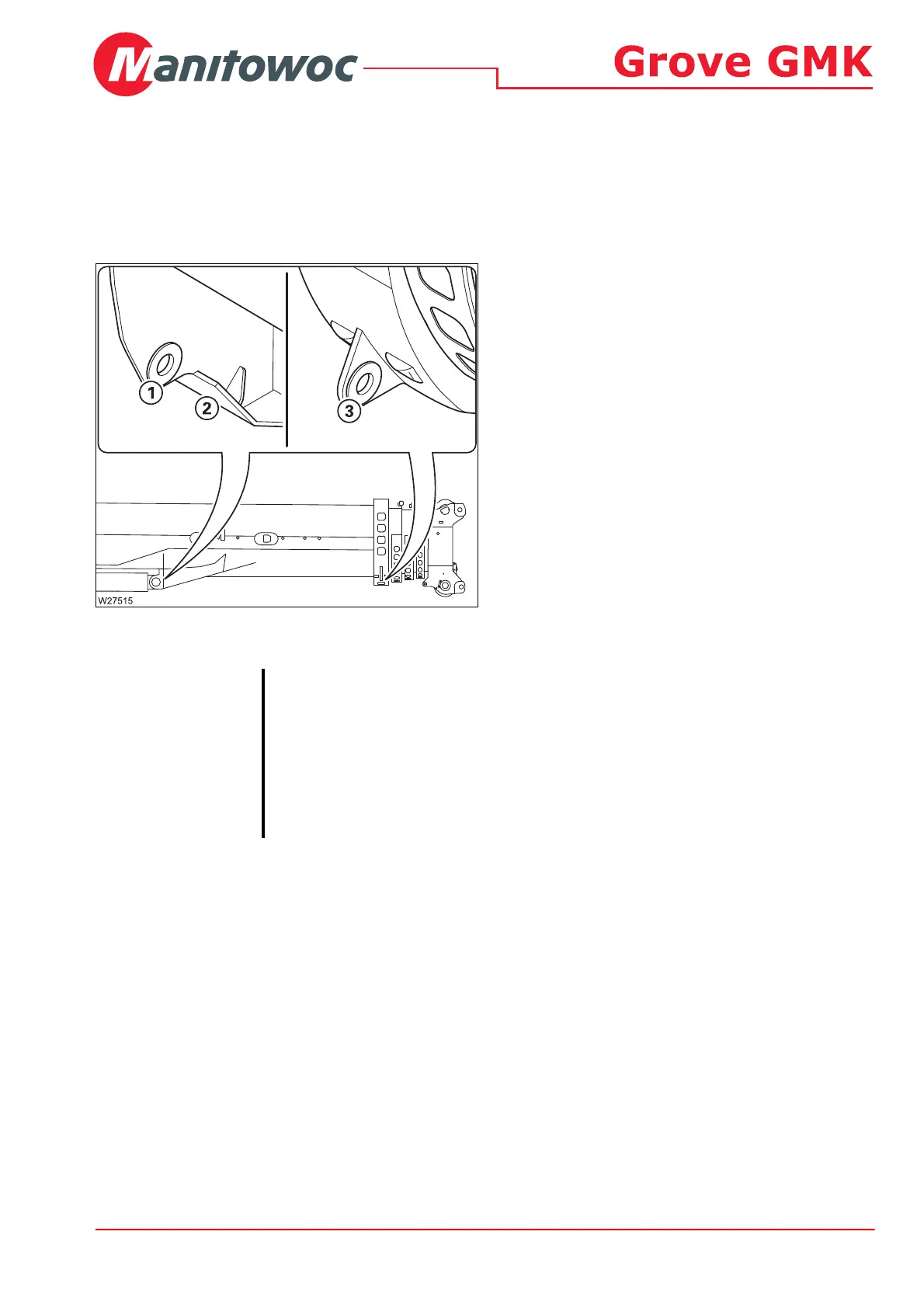

For operation with a trailer there are support
points (2), locking points (3) and lashing eye-
lets (1) on each side of the main boom.
• Always set the main boom down on a trailer
so that the support points (2) and locking
points (3) are in contact with the corre-
sponding counter bearings of the trailer
on both sides and completely support the
weight of the main boom.
• Secure the boom against lifting by the lash-
ing eyelets (1). The weight of the main boom
must not be supported by the lashing eye-
lets (1).
• Always lock the trailer on both sides by the
locking points (3).
s
Instructions for operation with a trailer
S
Risk of damage if procedure is incorrect
Only use trailers where it is guaranteed that all support points and locking
points can be used on the main boom as intended and ensure that the
trailer can support the maximum occurring forces in the appropriate direc-
tions.
Ensure that the weight of the main boom is not supported by the lashing
eyelets.
This prevents the basic section from being damaged due to overloading.
