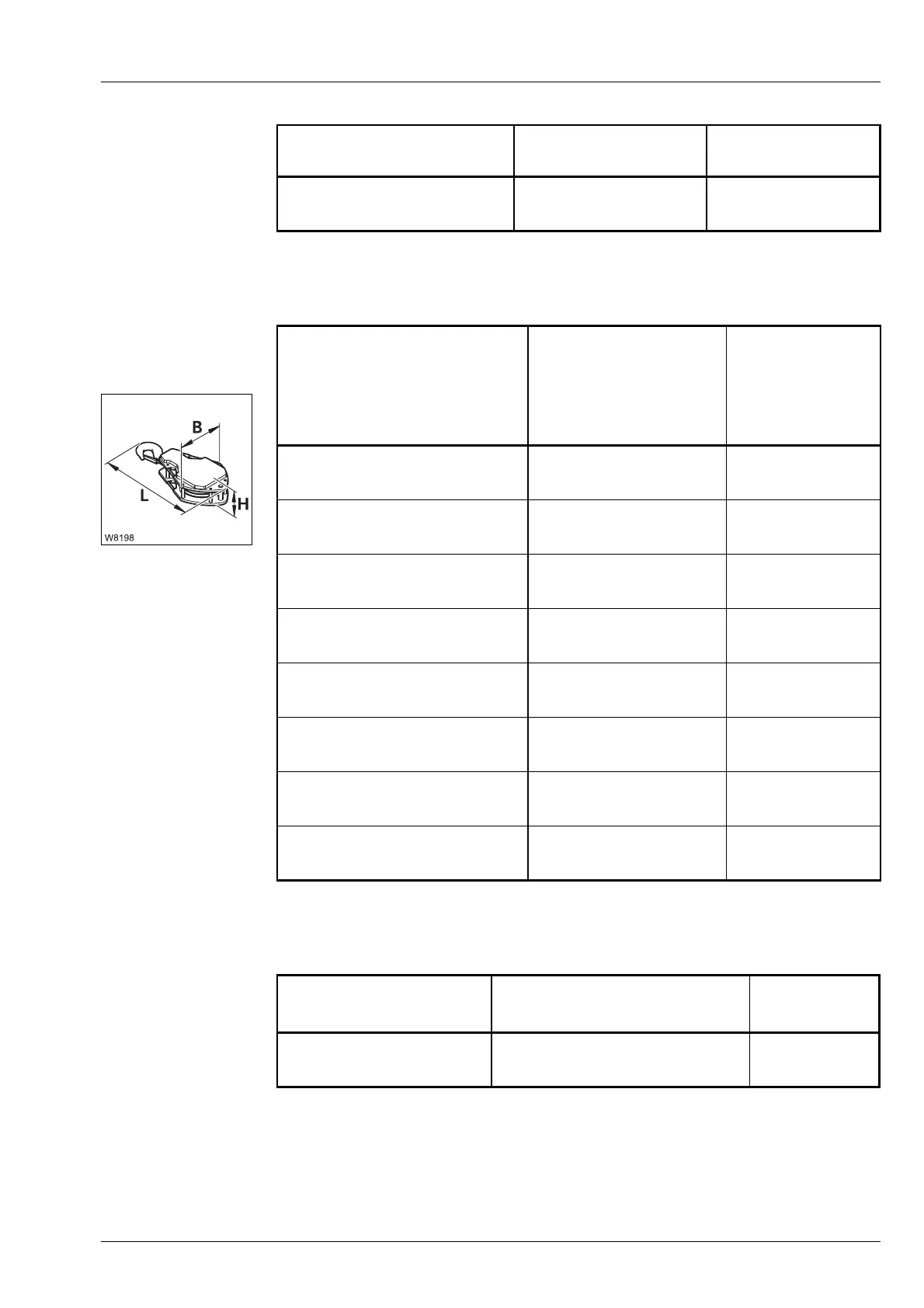

1.5 Technical data
Operating manual GMK 6400 3 112 993 en 1 - 11
12.07.2013
Main boom
Hook blocks and
hook tackle
Lifting capacity of the hook blocks;
à p. 12 - 119.
Auxiliary hoist
s
Designation Length x width x
height in m (ft)
Weight in kg (lbs)
Complete main boom 16.0 x 2.0 x 2.0
(52.5 x 6.6 x 6.6)
27 500
(60 630)
Designation
Length x width x
height
(L) x (B) x (H)
In m
(ft)
Weight
In kg
(lbs)
Double hook, 11 sheaves 2.40 x 1.05 x 0.75
(7.87 x 3.44 x 2.46)
3 500
(7 720)
Double hook, 9 sheaves 2.30 x 0.95 x 0.75
(7.55 x 3.12 x 2.46)
3 000
(6 615)
Double hook, 7 sheaves 2.00 x 0.85 x 0.75
(6.56 x 2.79 x 2.46)
2 400
(5 290)
Double hook, 5 sheaves 1.85 x 0.65 x 0.75
(6.07 x 2.13 x 2.46)
1 600
(3 530)
Single hook, 3 sheaves 1.75 x 0.40 x 0.75
(5.74 x 1.31 x 2.46)
1 300
(2 870)
Double hook, 3 sheaves 1.95 x 0.40 x 0.75
(6.40 x 1.31 x 2.46)
1 300
(2 870)
Single hook, 1 sheave 1.50 x 0.25 x 0.75
(4.92 x 0.82 x 2.46)
850
(1 875)
Hook tackle 0.91 x 0.45 x 0.45
(3.00 x 1.48 x 1.48)
450
(992)
Designation
Length x width x height
in m (ft)
Weight
in kg (lbs)
Complete auxiliary hoist 2.40 x 2.85 x 2.10
(7.87 x 9.35 x 6.89)
5 000
(11 023)
