Operating elements for crane operation
9.2 Short description of the operating elements
Operating manual GMK 6400 3 112 993 en 9 - 63
12.07.2013

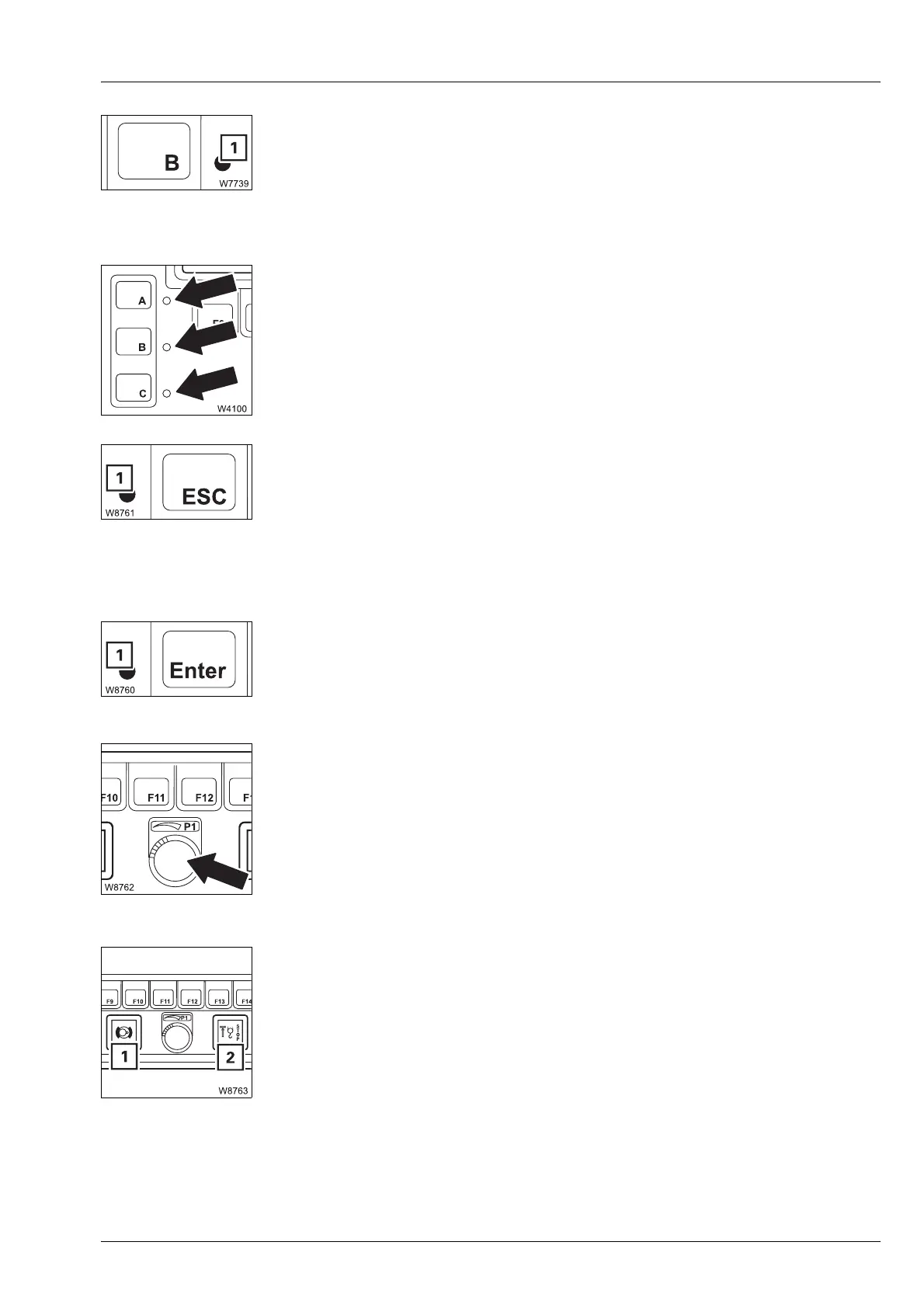

Open Warning submenu
The lamp (1) lights up or flashes.
Keycode entry
The lamps next to all three buttons are lit.
Exiting submenu/input mode
The lamp (1) lights up.
Input confirmation
The lamp (1) lights up.
Entering values
Input mode is switched on.
Other
s
– Press the button 1 x: This opens the Warning submenu for the carrier
à p. 11 - 111
– Enter keycode: Press buttons in the required sequence and con-
firm keycode
à Telescoping emergency programme, p. 14 - 43
– Press the button 1 x: – The opened submenu closes – the menu from
the next highest level is opened
– Input mode is deactivated
– Press the button 1 x: A newly entered value is saved
– To the right: Increases the value
– To the left: Decreases the value
Slowly turning changes the value gradually
Quickly turning changes the value quickly
1 Slewing gear brake indicator lamp;
à p. 9 - 78
2 Lifting limit switch warning;
à p. 9 - 78
