Operating elements for crane operation
9.2 Short description of the operating elements
Operating manual GMK 6400 3 112 993 en 9 - 85
12.07.2013

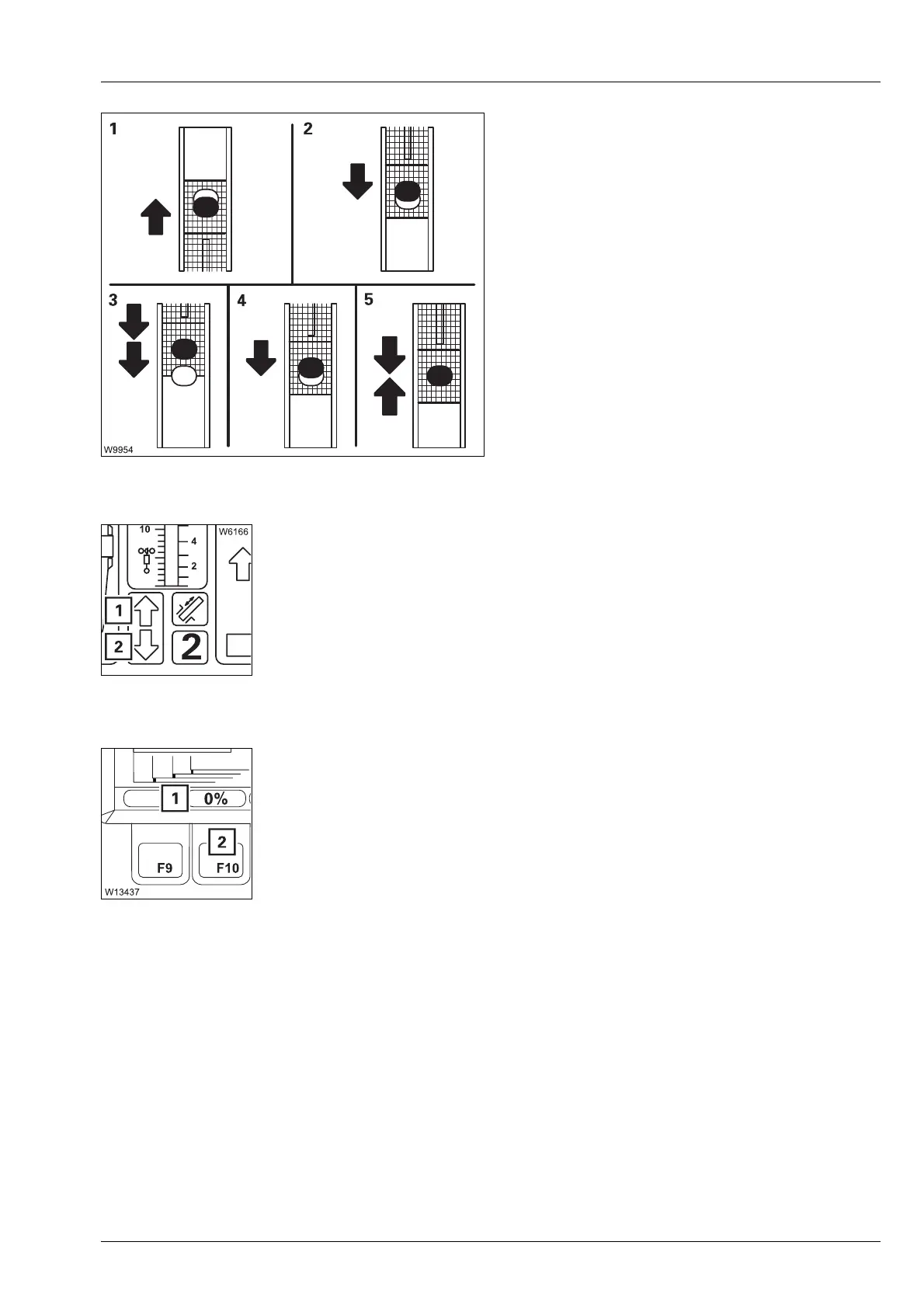

Locking point display
– Direction of travel to the locking point
– Distance to the locking point
Enable telescoping display
Entering target value for teleautomation
s
1 Extend telescoping cylinder
2 Retract telescoping cylinder
3 Yellow: approx. 1 m (3.3 ft)
4 Yellow less than 1 m (3.3 ft)
5 Green: At the locking point
1Extend –Red: Blocked
– Green: Enabled
2 Retract – Red: Blocked
– Green: Enabled
1–Red:
– Yellow:
– Green:
Teleautomation off
Enter target value
Teleautomation on
2 Press button first time – target value input on
Press button 1 x – target value to next fixed length
à p. 11 - 91
