Operating elements for crane operation
9.2 Short description of the operating elements
9 - 100 3 112 993 en Operating manual GMK 6400
12.07.2013

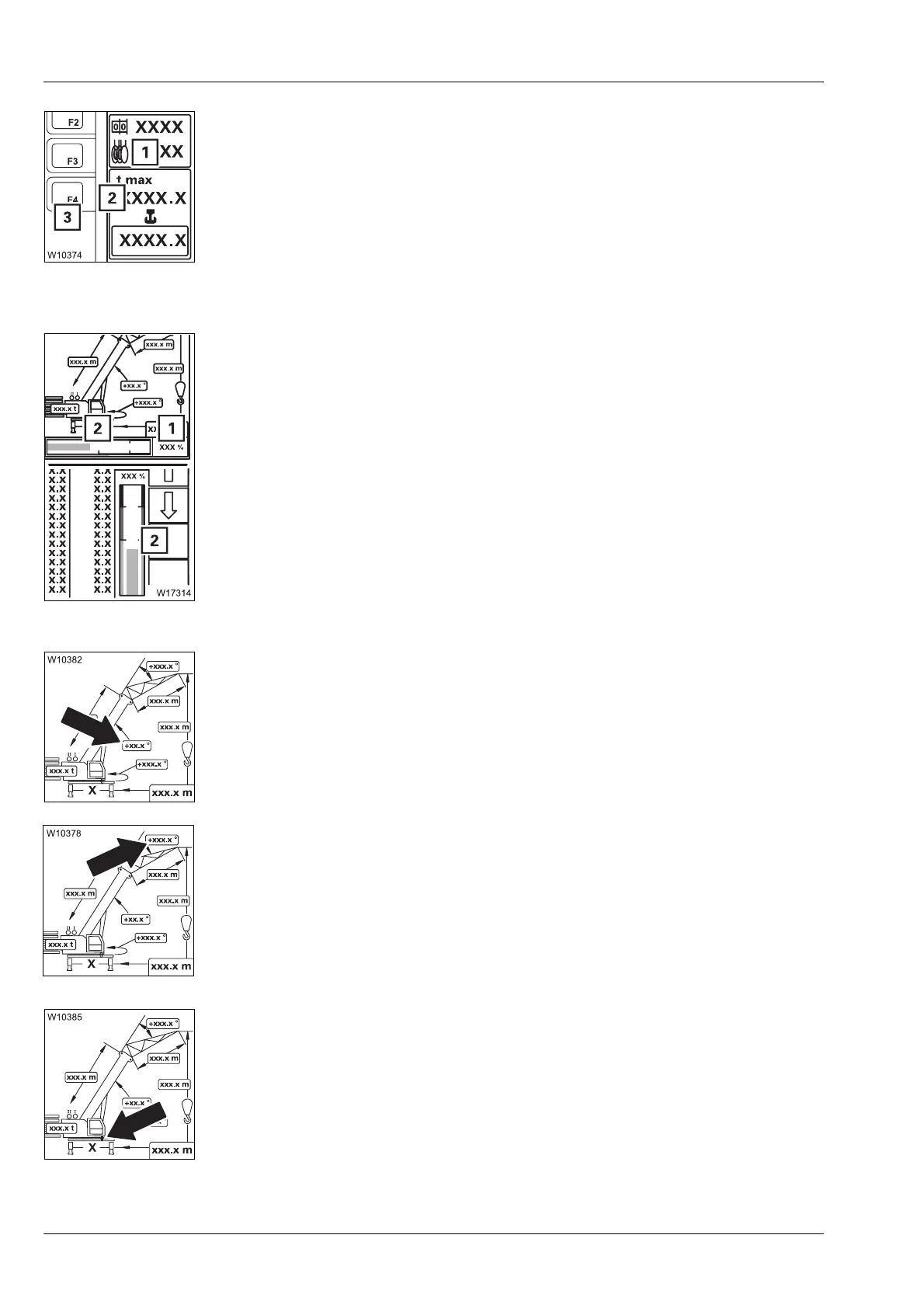

Maximum load display
Current degree of utilisation display
Degree of utilisation = 100 x current load/maximum load
Current main boom angle display
Lattice extension inclination display
The luffing jib is connected.
Turntable lock display
– Display: Maximum load in tons (t) or kilopounds (klbs) for dis-
played RCL code
– Symbol (1) is red – maximum load reduced by reeving
Press button (3) 1 x – display (2) briefly shows maxi-
mum load for displayed RCL code
à p. 11 - 36
1 Display in percent
2 Colour display:
–Blue: 0 - 90%
–Yellow:approx. 90 - 100% – early warning
–Red: greater than 100% – shutdown
à p. 11 - 36
– Display: Current angle between main boom and horizontal posi-
tion in degrees (°)
à p. 11 - 35
– Display: Current angle between the lattice extension and main
boom in degrees (°)
à p. 11 - 35
– Lights up
green:
Turntable locked
– No display: Turntable unlocked
– Flashes yellow: Locking pin in intermediate position
– Flashes red: Error code displayed
