Operating elements for crane operation
9.2 Short description of the operating elements
Operating manual GMK 6400 3 112 993 en 9 - 99
12.07.2013

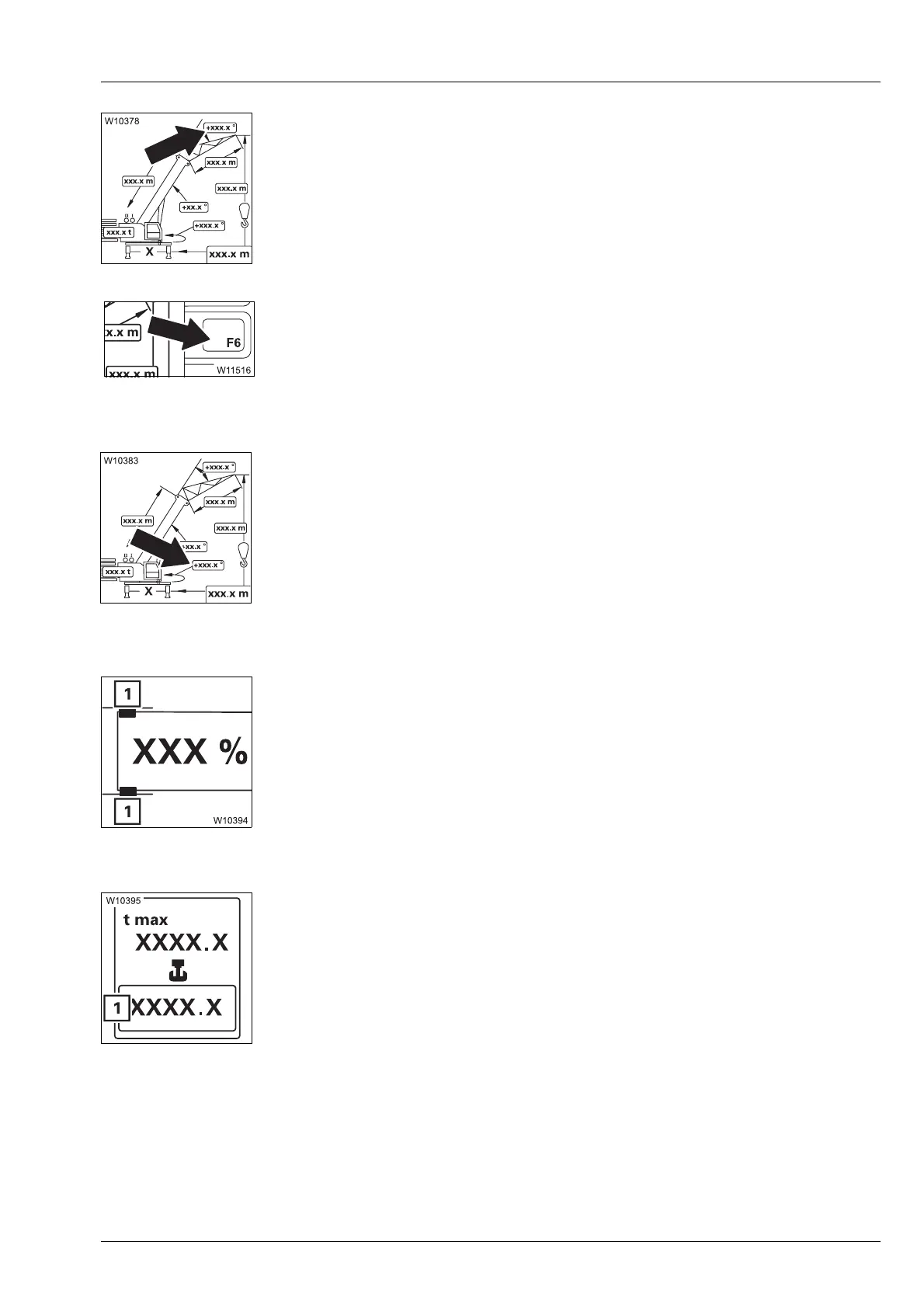

Lattice extension angle display
The inclinable lattice extension is connected.
Lifting capacity table submenu
Current slewing angle display
Current telescoping display
Telescope status of all telescopic sections in percent – locking pins (1):
Current load display
s
– Display: Angle between lattice extension and main boom in
degrees (°) – for displayed RCL code
à p. 11 - 35
– Press the button 1 x: The
Lifting capacity table submenu opens
à p. 11 - 49
0°: Position
0° to the rear
180°: Position 180° to the front
+0.1 to +180.0°: Turned to the right from 0°
–0.1 to –179.9°: Turned to the left from 0°
à p. 11 - 35
–Green: Fixed length – locked and set down
– Flashing: Intermediate length – locked, not set down
– Black: Intermediate length – not locked
à p. 11 - 34
– Display: Currently raised load in tons (t) or kilopounds (klbs) –
accurate to ± 5% of actual load
Example: 55.2 klbs equal 55 200 lbs
à p. 11 - 36
