Operating elements for crane operation
9.2 Short description of the operating elements
9 - 98 3 112 993 en Operating manual GMK 6400
12.07.2013
Monitoring
submenu
Displays – depend on rigging mode; à Checks before operating the crane,
p. 11 - 31.

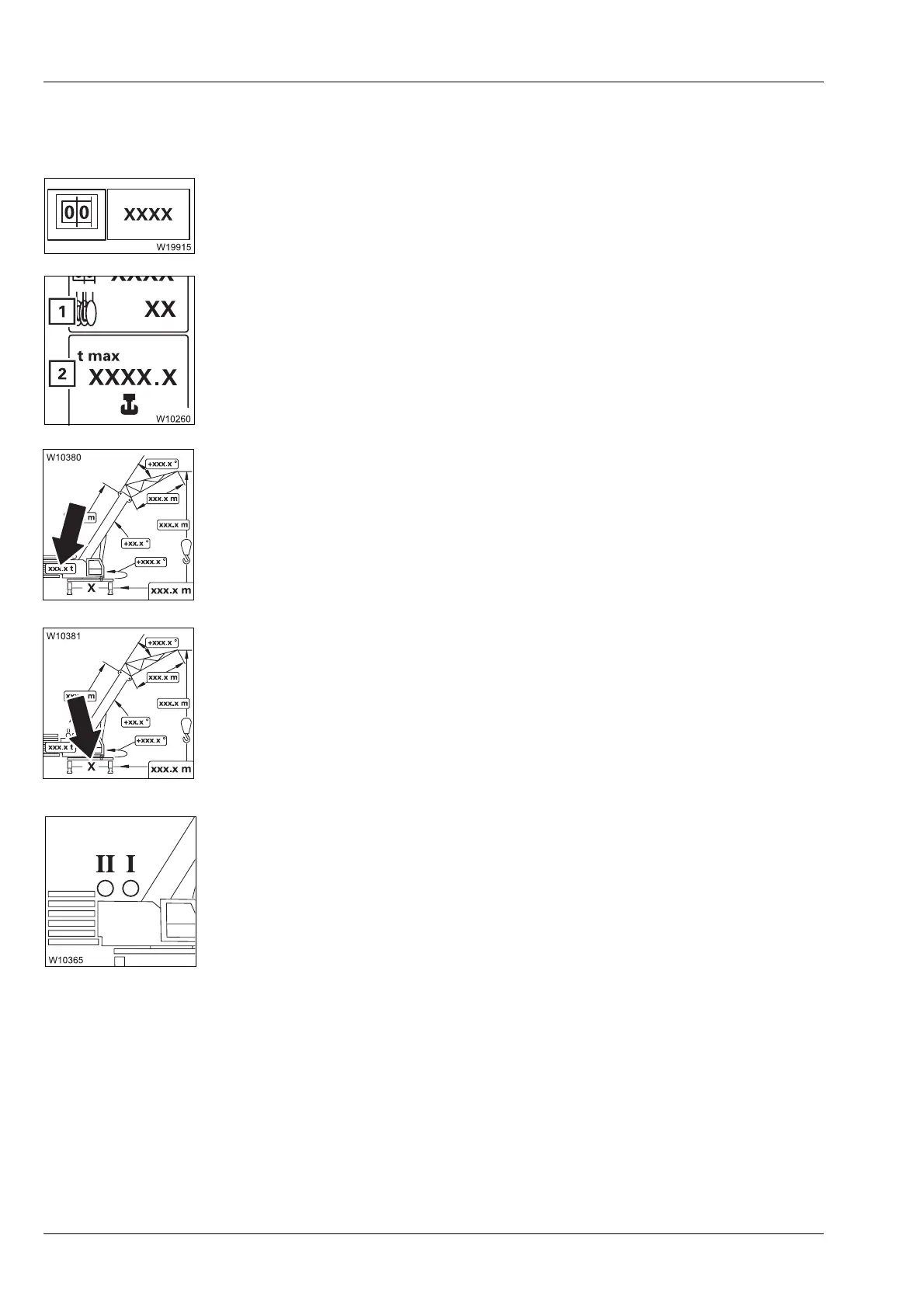

RCL code display
RCL code, four digits
Reeving display
Counterweight display
Required counterweight combination in tons (t) – for displayed RCL code.
Outrigger span display
Required outrigger span for displayed RCL code – displayed in letters – over-
view of outrigger spans;
à p. 9 - 95.
Hoists display
1 Required quantity of reeved ropes for displayed, maximum load (2)
–
I on: Main hoist switched on first –
displayed reeving applies to main hoist
–
II on: Auxiliary hoist switched on first –
displayed reeving applies to auxiliary hoist
–
I or II flashing: Corresponding hoist switched on as well –
displayed reeving applies to the other hoist
–
I or II off: Corresponding hoist switched off
