Operating elements for crane operation
9.2 Short description of the operating elements
Operating manual GMK 6400 3 112 993 en 9 - 97
12.07.2013

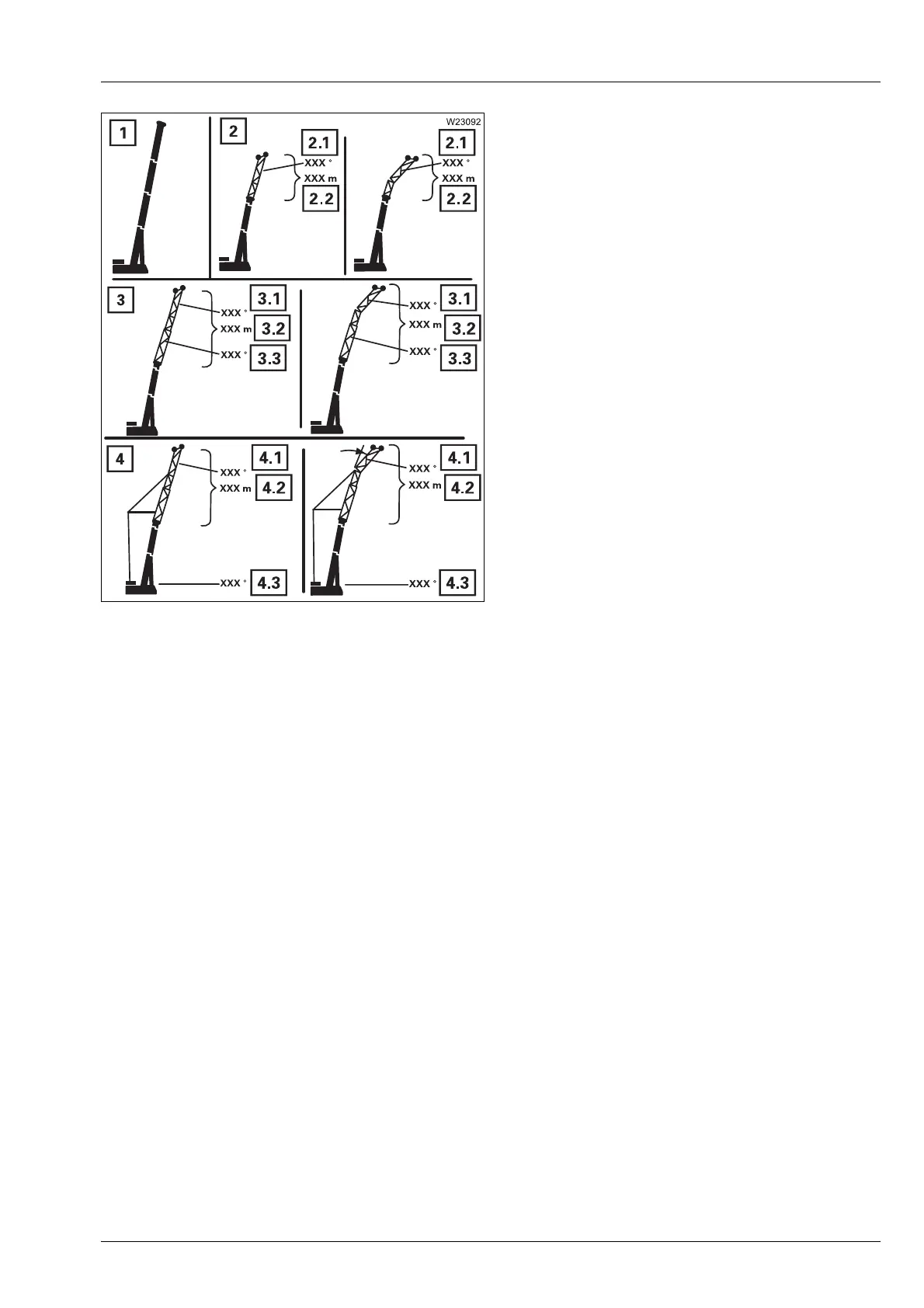

Boom system display
Boom system for displayed RCL code,
s
1 Main boom/auxiliary single-sheave boom
top
2 Heavy load lattice extension
2.1 Angle
2.2 Length
3 Boom extension
3.1 Angle
3.2 Length
3.3 Angle
4 Luffing jib
4.1 Length
4.2 Angle
4.3 Main boom angle
