Operating elements for crane operation
9.2 Short description of the operating elements
9 - 96 3 112 993 en Operating manual GMK 6400
12.07.2013

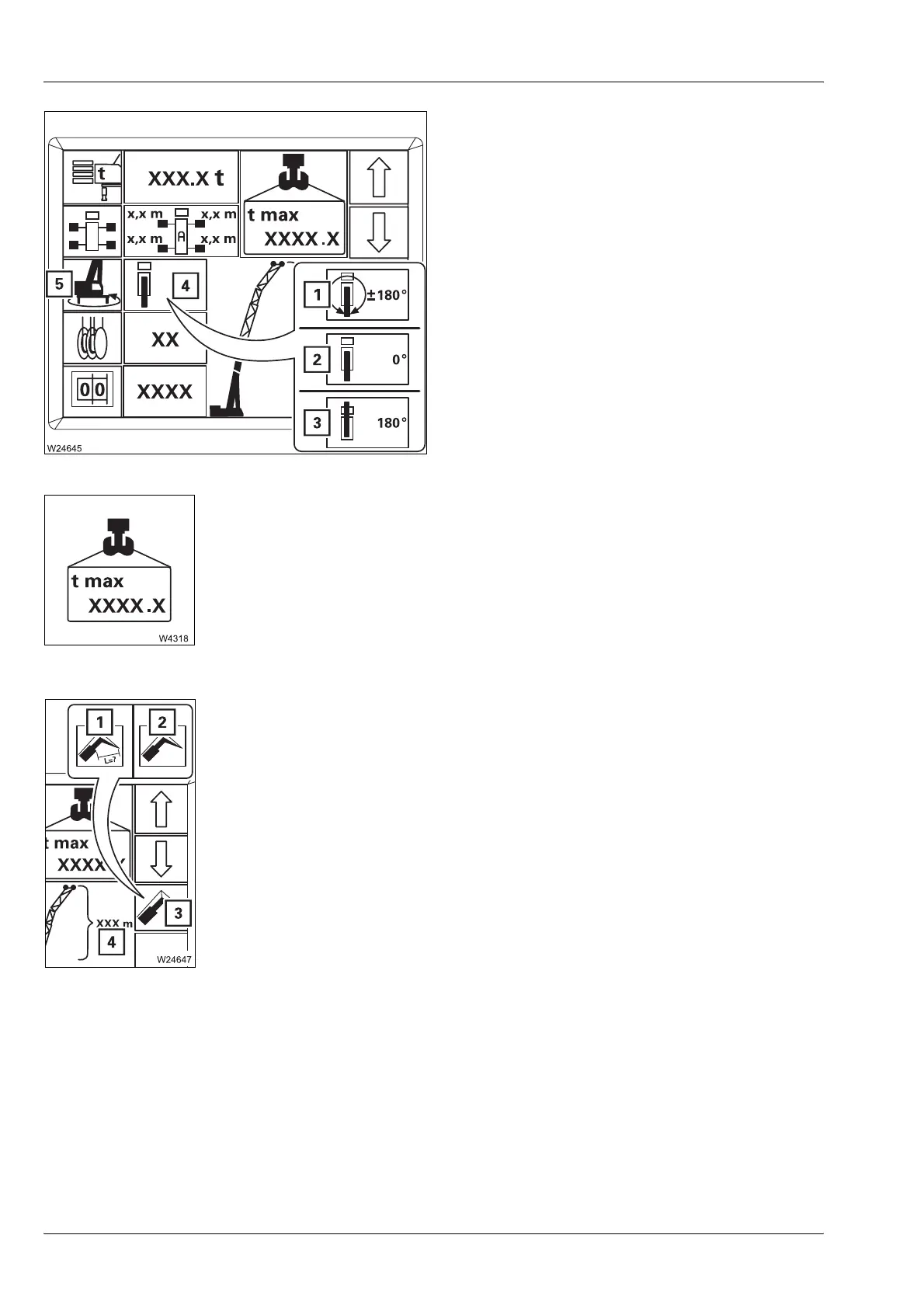

Entering slewing range
– Input mode on
Press button (5) 1 x – symbol turns green
– Input
In input mode, press button
8 9 1 x – next
permissible slewing range on display (4)
à p. 11 - 24
Maximum load display
Short description with
Monitoring submenu; Ã p. 9 - 100.
Boom system entry
1 360° slewing range
2 Operating position 0° to the rear
1)
3 Operating position 180° to the front
1)
1)
To accept, switch off slewing gear
– Input mode on: – For boom system:
Press button (3) until symbol (2) is green
– For lattice extension length and angle:
Press button (3) until symbol (1) is green
– Input: In input mode, press button (3) 1 x – next length on
display (4)
à p. 11 - 24
