Crane operation
11.2 Operation of the rated capacity limiter
Operating manual GMK 6400 3 112 993 en 11 - 21
12.07.2013

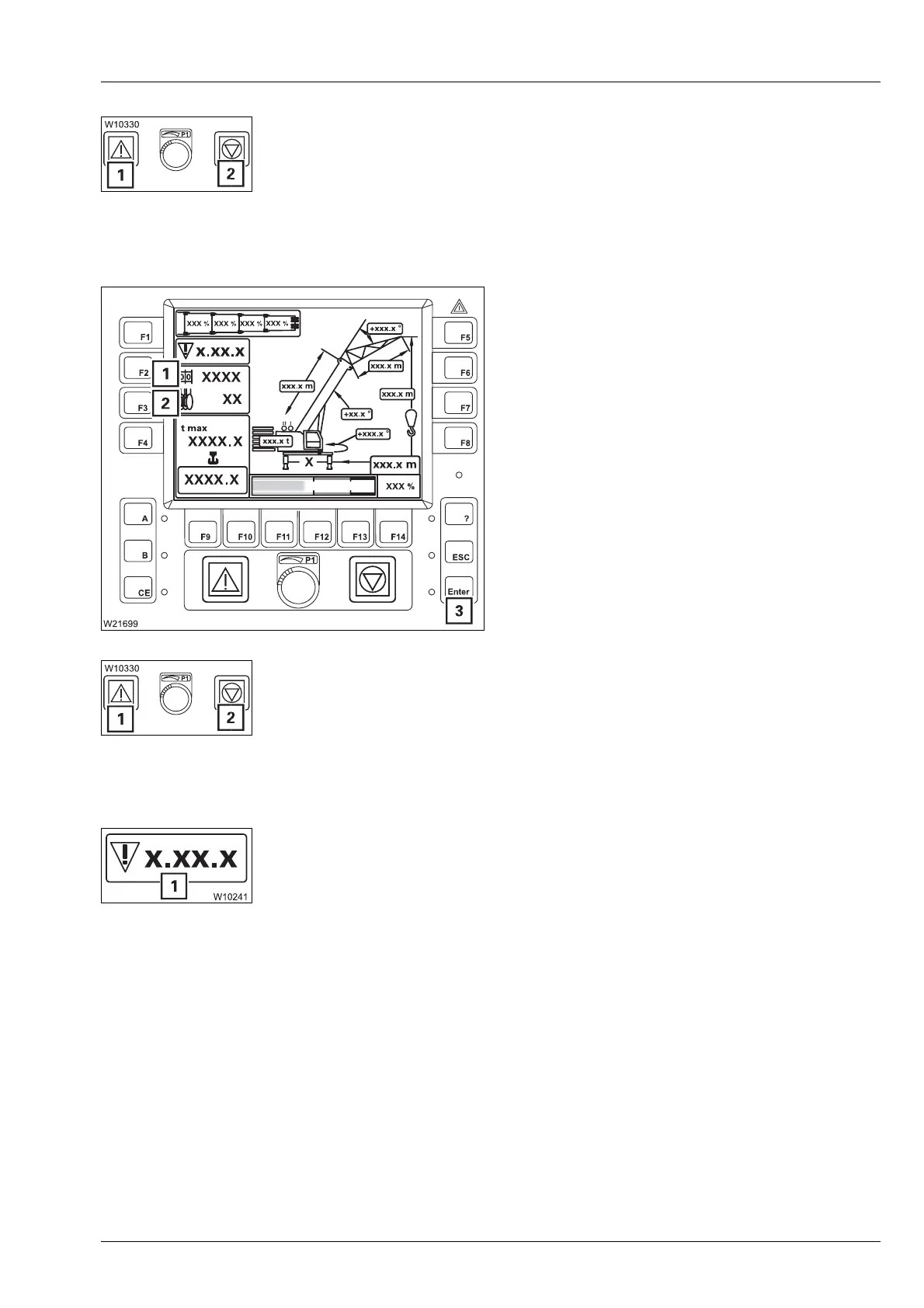

After the test programme:
– The lamps (1) and (2) light up
– All power units are disabled
The current display depends on whether the RCL either:
– Had been switched off for up to 48 hours
– Had been switched off for more than 48 hours
After a standstill of up to 48 hours
The
Monitoring submenu will open.
The last set rigging mode will be displayed,
and symbols (1) and (2) will be green and
flash.
You can accept the displayed values if they
correspond to the current rigging mode:
• Press button (3) once – symbols (1) and (2)
will stop flashing.
The lamps (1) and (2) go out. The RCL code has been applied.
If no error message is displayed, the RCL is set for crane operation and
crane movements are enabled;
à Checks before operating the crane, p. 11 - 31.
Any pending errors are indicated on the display (1);
à Display during errors,
p. 11 - 39.
You must re-enter the current rigging mode if the displayed values do not
correspond to the current rigging mode of the truck crane;
à Entering the
rigging mode
, p. 11 - 23.
