11.2 Operation of the rated capacity limiter
11 - 24 3 112 993 en Operating manual GMK 6400
12.07.2013
Entering individ-
ual components
With this type of input, select all the components of the rigging mode one
after the other.
When re-entering the rigging mode com-
pletely, you can prevent already entered com-
ponents from changing by making entries in
the following order:
– Counterweight (1)
– Boom system (4)
– Outrigger span (2) - only for versions with-
out outrigger span monitoring
– Slewing range (3)
– Outrigger span check - only for versions
with outrigger span monitoring
In this order, the values that can be selected for the current entry are always
restricted by the previous entry. As a result, already entered values do not
change.

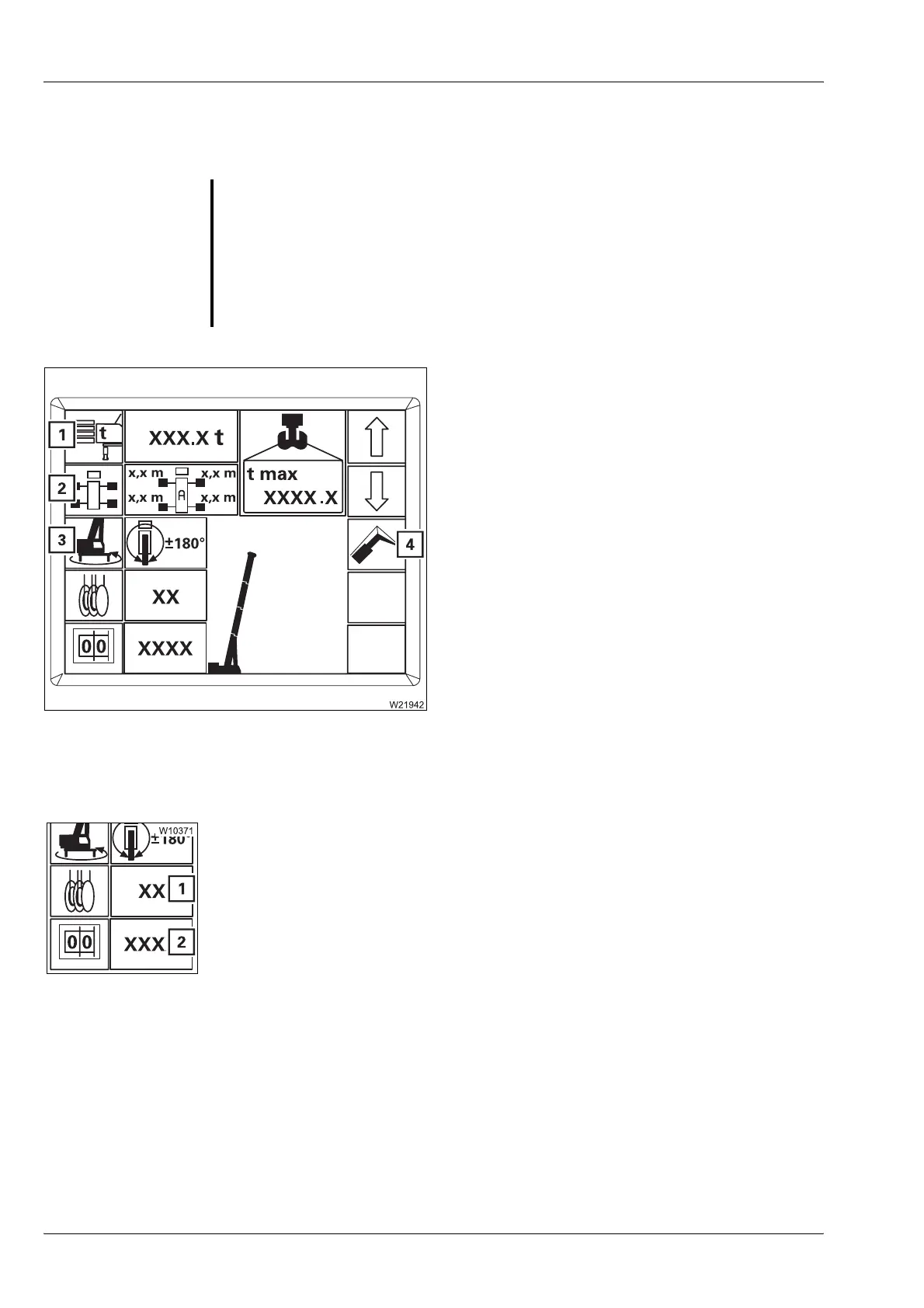

When entering the components, the corresponding RCL code (2) is dis-
played at the same time.
Then you must enter the current reeving (1) and accept the indicated rigging
mode.
G
Danger of overturning due to incorrectly set rigging mode
Values which have already been set may change when entering individual
components. For this reason, you should always compare the displayed
rigging mode with the current rigging mode of the truck crane after making
the entry. This prevents the RCL from calculating with incorrectly set com-
ponents and the truck crane from becoming overloaded or from overturn-
ing.
