Crane operation
11.2 Operation of the rated capacity limiter
11 - 28 3 112 993 en Operating manual GMK 6400
12.07.2013
– Slewing range

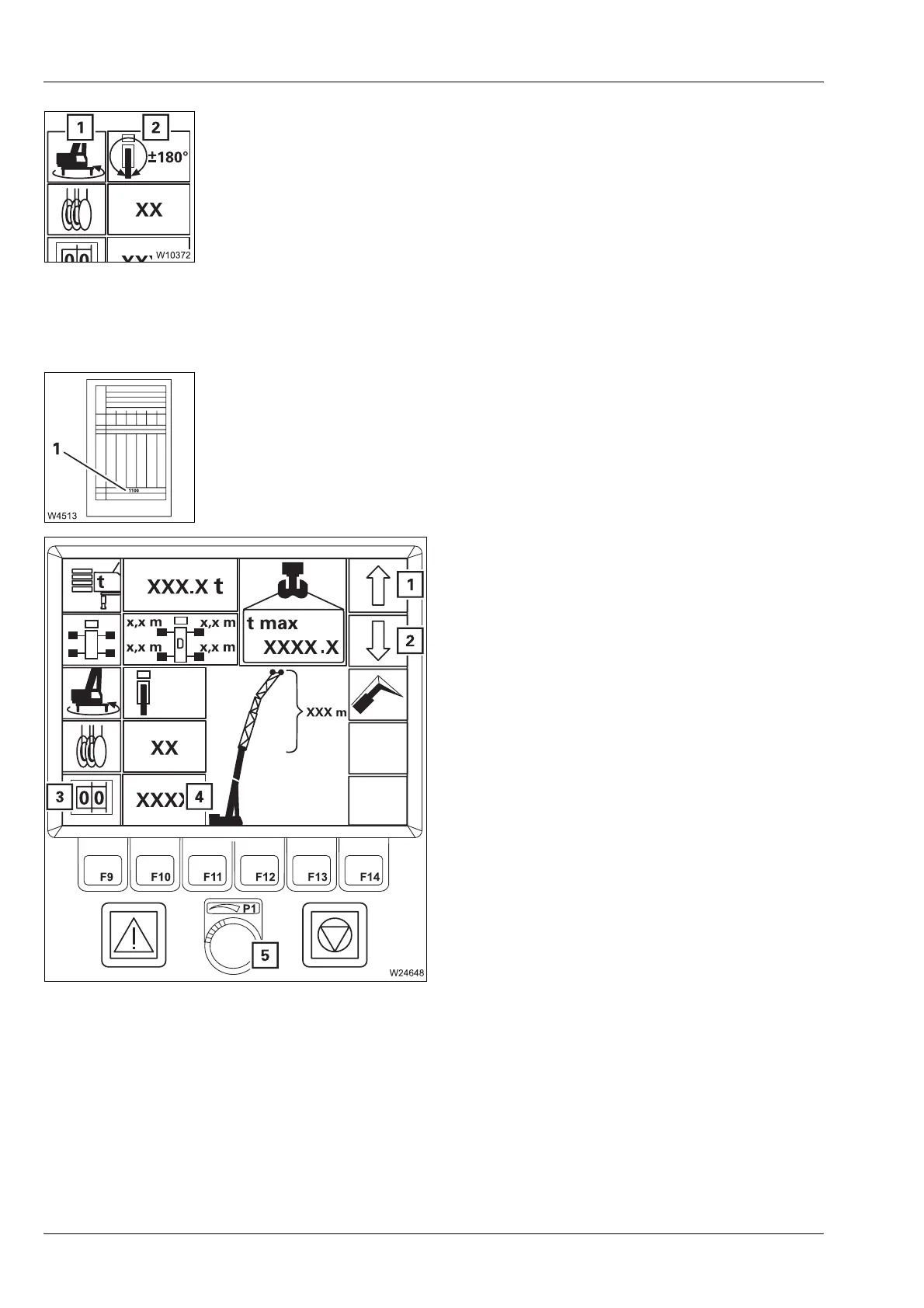

Symbol (1) is green. Press buttons
8 9 repeatedly until the display (2)
indicates the required slewing range, e.g. 360°.
You can only confirm rigging modes for slewing ranges other than 360°:
– If the superstructure is in the entered slewing range. If necessary, first
enter the 360° slewing range and slew the superstructure into the
required position.
Entering the RCL
code
You must enter the RCL code for the rigging mode according to the
Lifting
capacity table
.
• Refer to the Lifting capacity table for the current rigging mode. The corres-
ponding RCL code (1) is specified at the bottom of the table (e.g. 1100).
• Press button (3) once – symbol is green.
• Press button (1) or (2) repeatedly until dis-
play (4) shows the required RCL code.
or
• Select the RCL code with switch (5).
The other displays will show the correspond-
ing rigging mode.
Now you can enter the reeving and accept the
rigging mode.
