Crane operation
11.2 Operation of the rated capacity limiter
Operating manual GMK 6400 3 112 993 en 11 - 29
12.07.2013
Entering the
reeving value
Entering the reeving does not have an effect on any other component that
has already been entered.

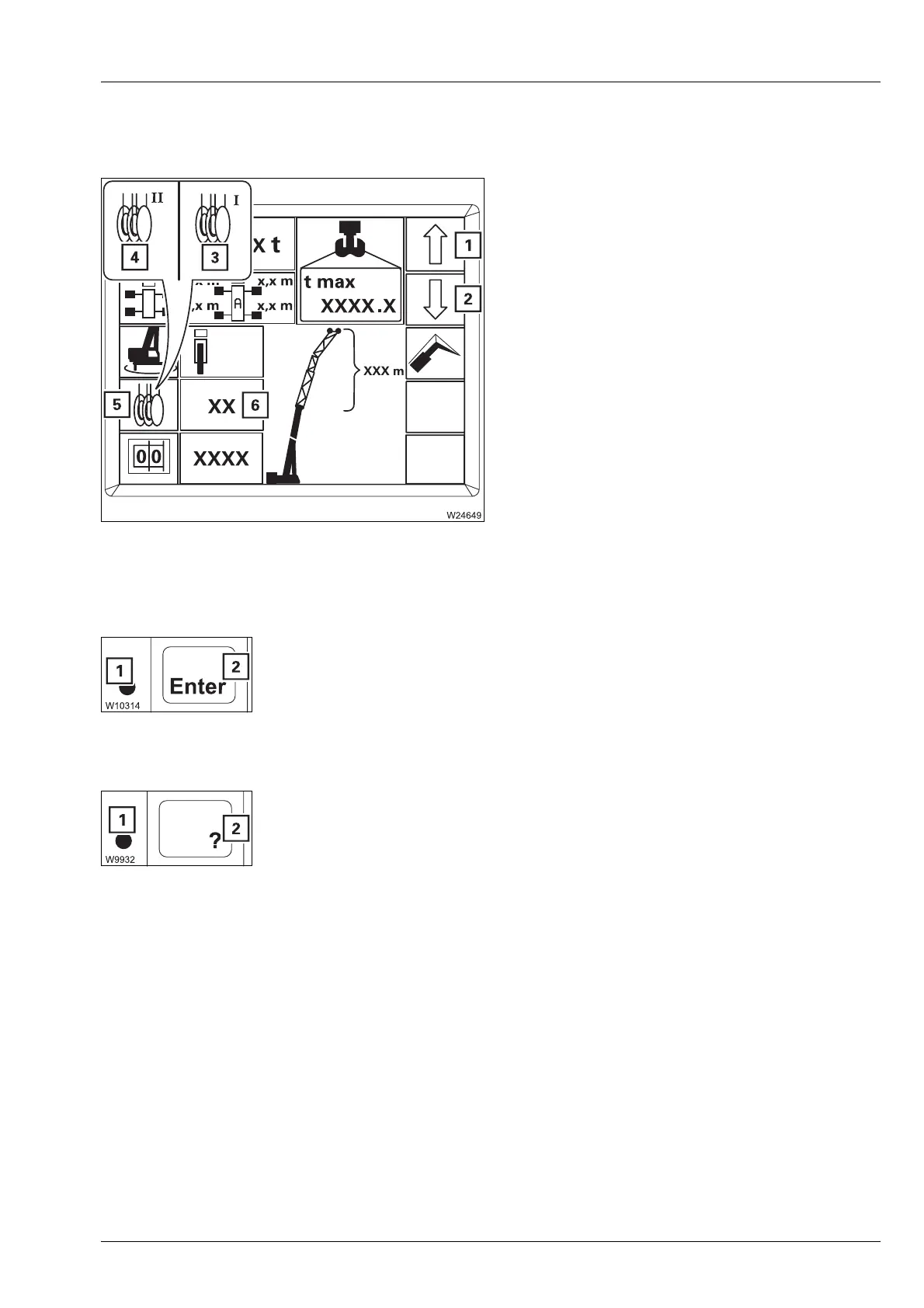

• Press button (5) repeatedly until the symbol
for the hoist with which you want to lift the
load has turned green.
• Press button (1) or (2) repeatedly until dis-
play (6) shows the number of currently
reeved rope lines.
Accepting the
rigging mode
Prior to crane operation, you must confirm and accept the newly entered
rigging mode.
Confirming the rigging mode
• Press the (2) button once.
– If the rigging mode is permissible, lamp (1) will go out. The
Rigging
mode monitoring
submenu will open and you can accept the rigging
mode.
– If the rigging mode is not permissible, the lamp (1) lights up. Press but-
ton (2) once to display the error codes;
à p. 14 - 27.
s
3 Symbol for main hoist
4 Symbol for auxiliary hoist
