Crane operation
11.2 Operation of the rated capacity limiter
11 - 30 3 112 993 en Operating manual GMK 6400
12.07.2013
Accepting the rigging mode
• Check whether the current rigging mode of the truck crane corresponds
to the displayed rigging mode.
• Check:

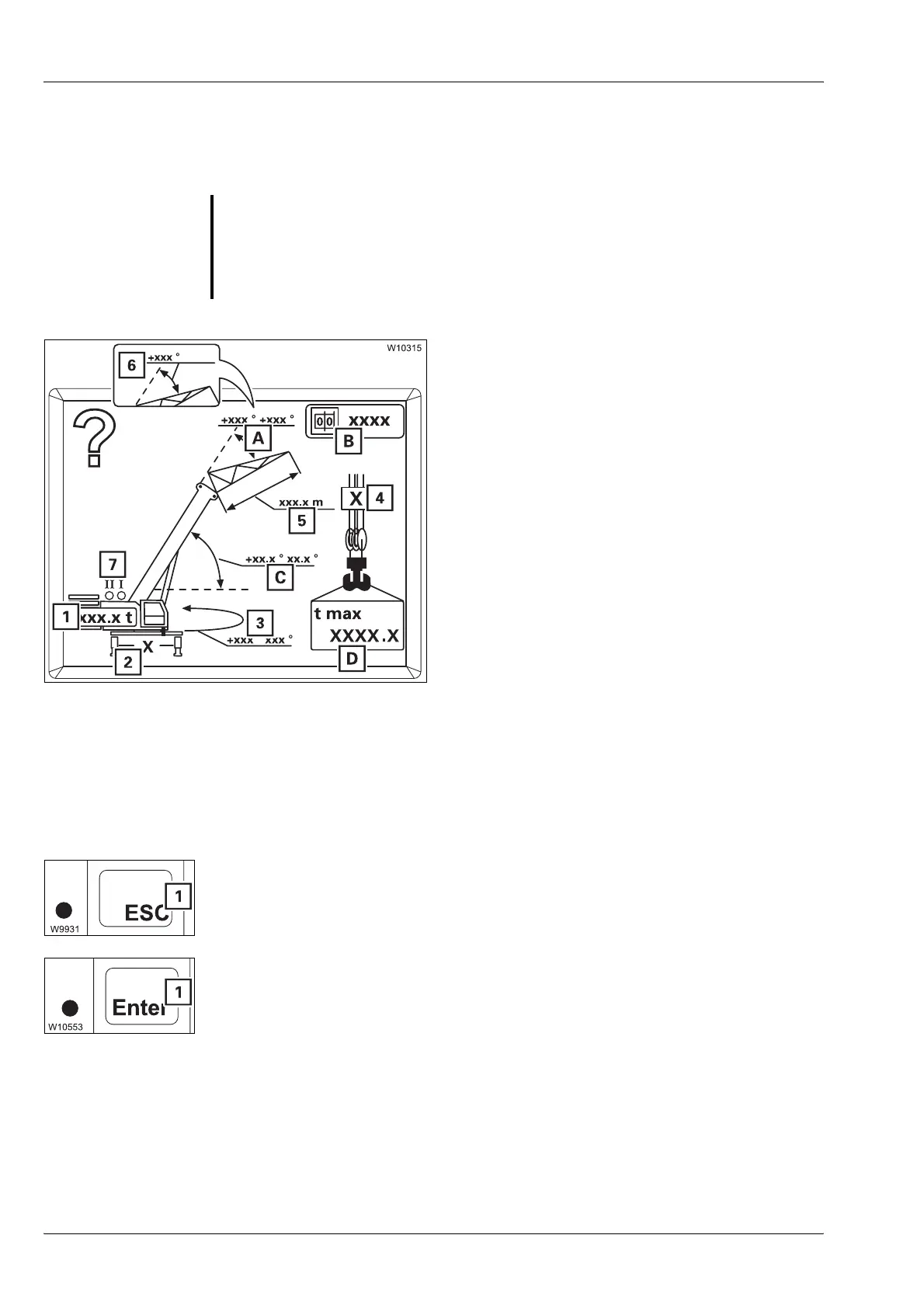

For the rigging mode, the following is dis-
played
:
• If you need to correct some values, press the button (1).
The
Enter rigging mode submenu opens.
If the current rigging mode is displayed, press the button (1). The
Monitoring
submenu opens and the crane movements are enabled provided no error is
pending;
à p. 11 - 31.
G
Risk of accident due to incorrectly set RCL
If the current rigging mode varies from the displayed rigging mode, the
maximum load displayed by the RCL will not correspond to the actually
permissible lifting capacity according to the
Lifting capacity table.
Overloading and accidents will be the result.
–1 The rigged counterweight
–2 The rigged outrigger span
–3 The slewing range for the planned
job
–4 The number of reeved rope lines
–5 The length of the rigged lattice exten-
sion
–6 The angle of the rigged lattice exten-
sion – inclinable
–7 The hoist that is switched on – switch
hoists over;
à p. 11 - 32
A The permissible working range of the lattice extension
B The RCL code
C The permissible working range of the main boom
D The maximum load
