Crane operation
11.3 Crane operation with main boom
11 - 80 3 112 993 en Operating manual GMK 6400
12.07.2013

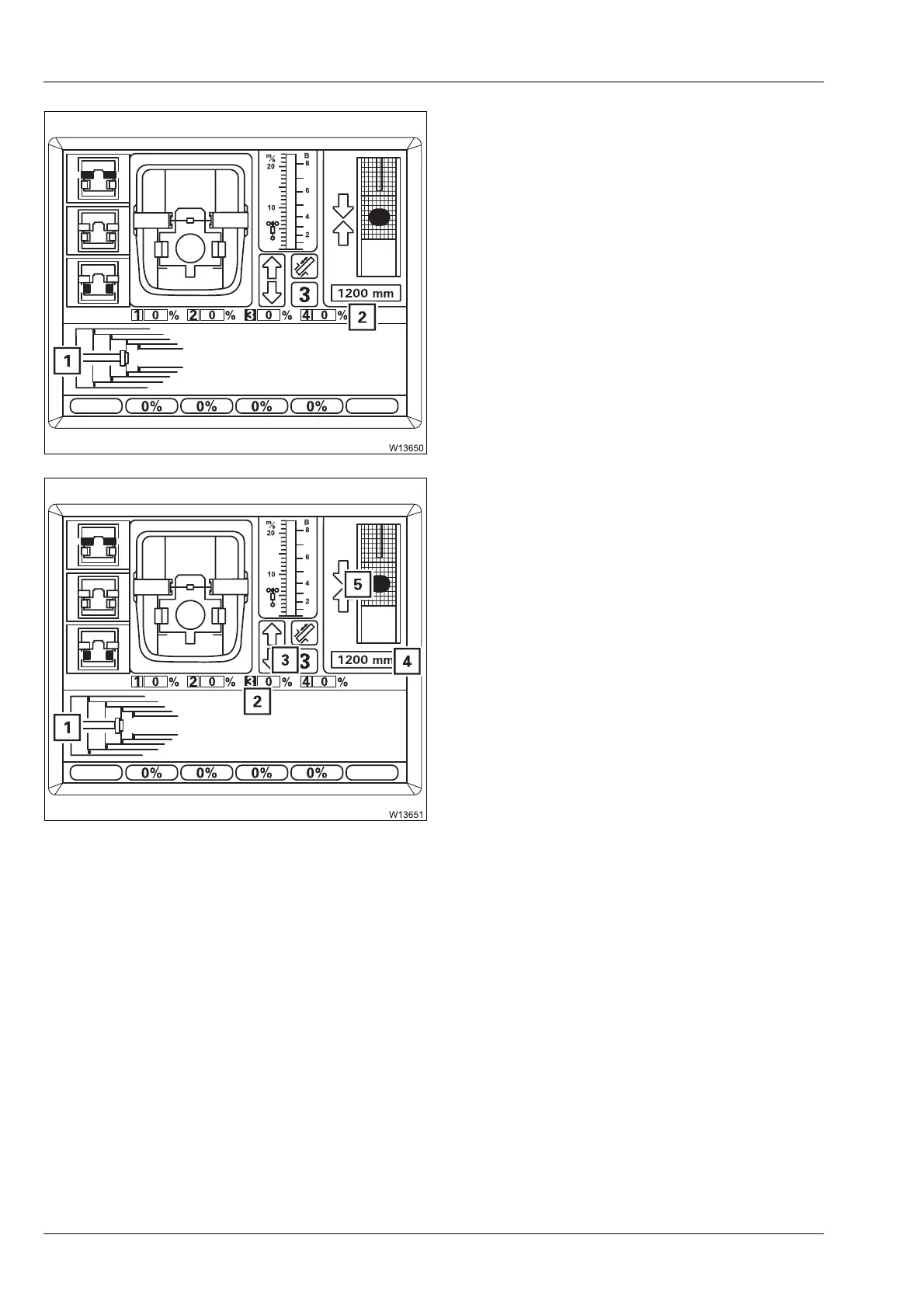

Current telescoping
The display (2) shows the current telescoping
in percent for each telescopic section.
The display (1) shows a diagram of the current
telescope state.
Position of the telescoping cylinder
The display (4) shows how far the telescoping
cylinder is extended, e.g. 1200 mm (3.93 ft).
If the telescoping cylinder is near a locking
point:
–The display (3) shows the corresponding tel-
escopic section, e.g. telescopic section
III,
–The display (2) shows the corresponding tel-
escopic section – number is green,
– The display (5) shows one or two arrows,
depending on the distance to the locking
point.
The display (1) shows a top view of the current
position.
